Description

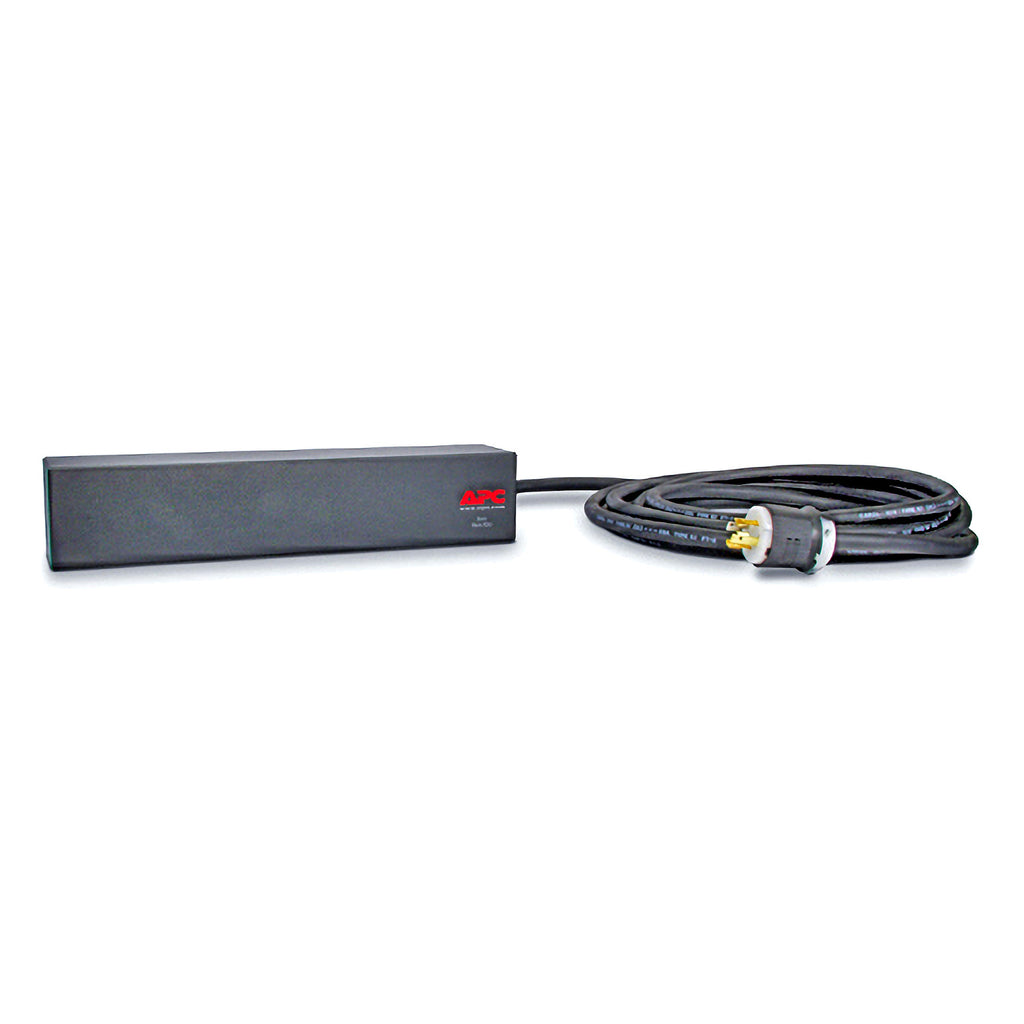

The APC NetShelter Basic Rack PDU Extender AP7580 delivers reliable, high-capacity power distribution for IT and network equipment in rack environments. Designed in a 2U horizontal form factor, this rack-mounted PDU provides up to 30A input power and supports 120V and 208V operation, making it ideal for data centers, server rooms, and edge deployments.

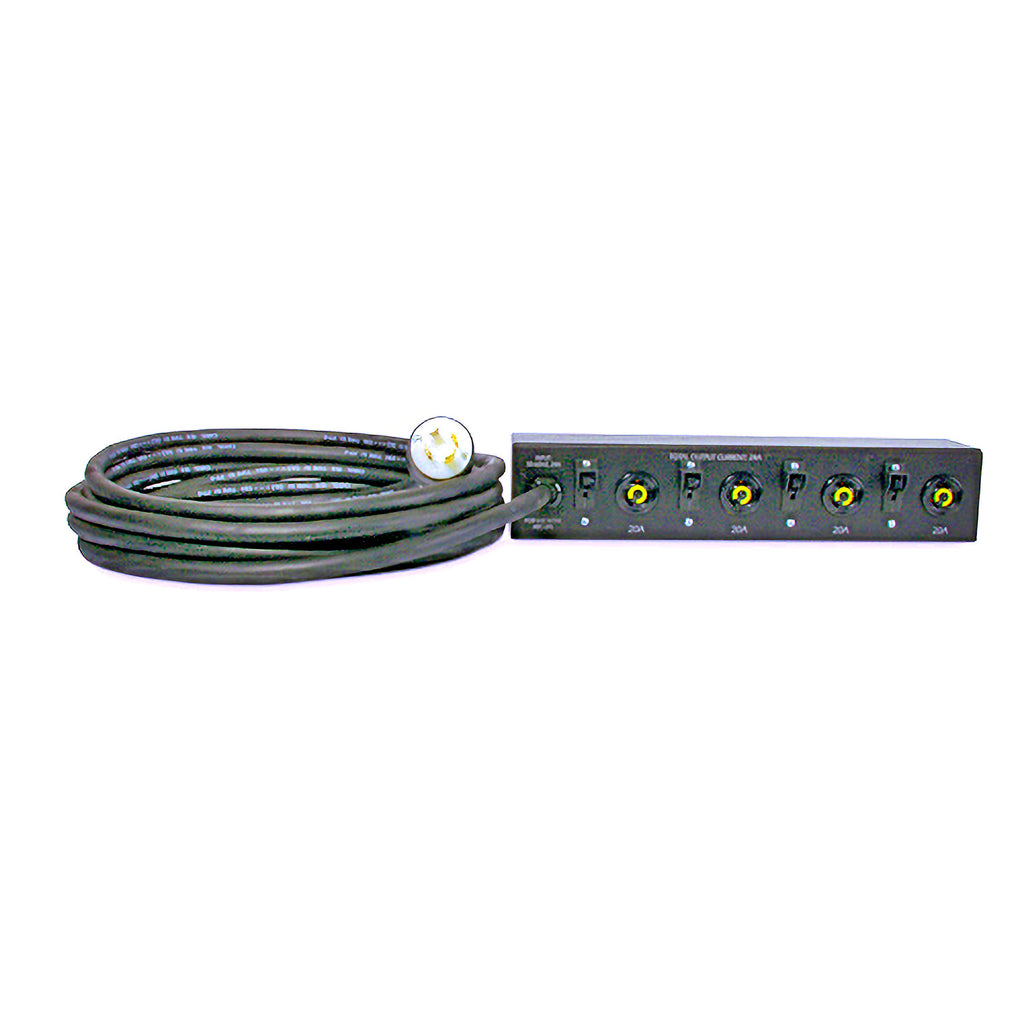

Equipped with four NEMA L5-20R locking outlets, the AP7580 ensures secure power connections for critical devices while minimizing accidental disconnections. Its rugged black metal construction, flexible front or rear mounting options, and extended power cord length allow for easy integration into NetShelter and standard 19-inch racks. This Basic PDU is a dependable solution for organizations seeking straightforward, non-switched power distribution with enterprise-grade reliability.
| Specification | Details |
|---|---|
| Brand | APC |
| Manufacturer Series | NetShelter Basic Rack PDU |
| Model Number | AP7580 |
| Product Type | Basic Rack Power Distribution Unit |
| Rack Size | 2U |
| Mounting Orientation | Horizontal |
| Mounting Location | Front or Rear |
| Rack Compatibility | 19-inch racks |
| Input Voltage | 120V / 208V |
| Output Voltage | 120V |
| Input Current Limit | 30A |
| Line Rated Current | 24A |
| Load Capacity | 4992 VA |
| Input Plug Type | NEMA L14-30P |
| Outlet Configuration | 4 × NEMA L5-20R |
| Input Frequency | 50/60 Hz |
| Cord Length | 27.99 ft (8.53 m) |
| Color | Black |
| Dimensions (H × W × D) | 3.5 in × 17.2 in × 3.5 in |
| Net Weight | 14.02 lb |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Certifications | UL Listed, cUL Listed |
| Warranty | 24 Months |
