Description

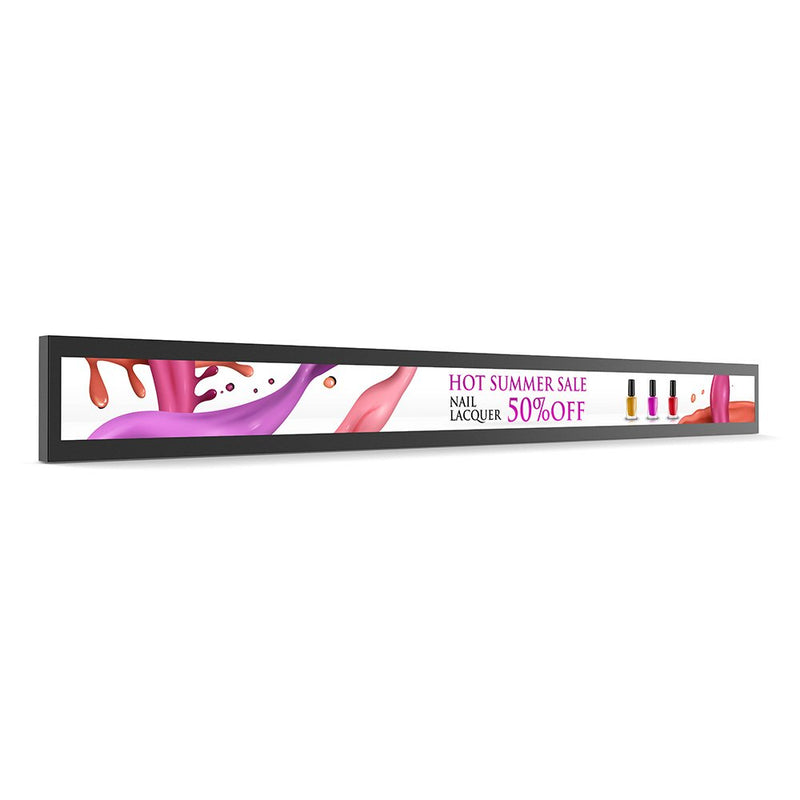

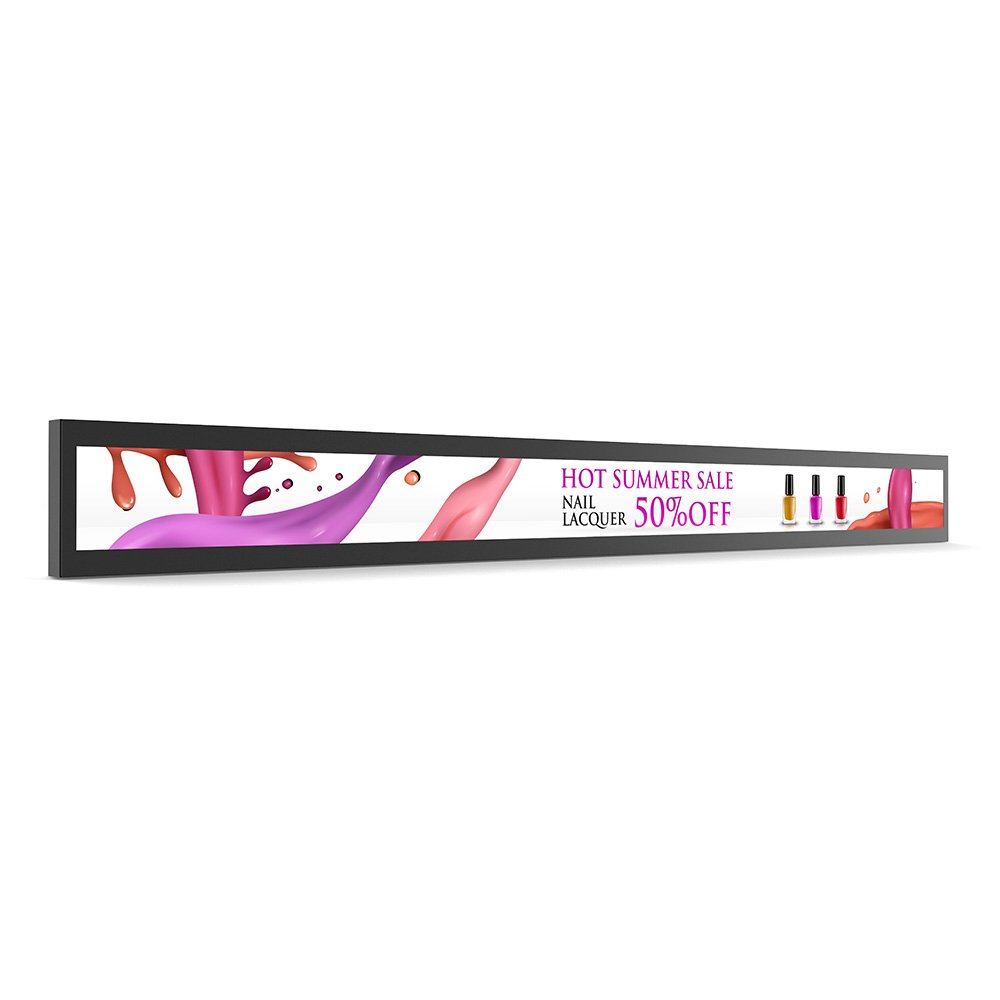

The BenQ BH3501 is a 35-inch ultra-wide bar type digital signage display designed for dynamic retail, transportation, and corporate environments. With its distinctive 16:1 stretched format and 1920 x 130 resolution, it delivers impactful messaging in narrow spaces where traditional displays do not fit.
Featuring 1000 cd/m² high brightness and IPS technology, the BH3501 ensures vivid, clear visuals with wide 178° viewing angles for consistent readability from multiple directions. The built-in Android 6.0 operating system supports easy content management, USB plug-and-play playback, and X-Sign compatibility for streamlined digital signage deployment.
Engineered for 24/7 operation, the BH3501 offers reliable performance, flexible landscape or portrait orientation, and multiple connectivity options including HDMI, USB, LAN, and RS232, making it a versatile solution for professional installations.
| Specification | Details |
|---|---|
| Brand | BenQ |
| Model | BH3501 |
| Screen Size | 35" (88.9 cm) |
| Panel Type | IPS Technology |
| Native Resolution | 1920 x 130 |
| Aspect Ratio | 16:1 Ultra-Wide |
| Brightness | 1000 cd/m² |
| Contrast Ratio | 3000:1 |
| Viewing Angle (H/V) | 178° / 178° |
| Response Time | 8 ms |
| Color Depth | 8-bit |
| Maximum Colors | 16.7 Million |
| Backlight Type | Edge LED |
| Operating System | Android 6.0 |
| Built-in Speakers | 2W x 2 |
| Operation Time | 24/7 Continuous Operation |
| Connectivity | HDMI In, 2x USB 2.0, RJ45 (LAN), RS232 (3.5mm), DC In, Line In |
| Content Features | USB Playback, X-Sign Support, OTA Update, HDMI-HDCP, Wake Up HDMI/LAN |
| Power Consumption (Max / Typ.) | 29W / 20W |
| Sleep Mode | < 0.5W |
| Voltage | 100–264 VAC, 50/60 Hz |
| VESA Mount | 430 x 60 mm (M4 x 10L) |
| Dimensions (W x H x D) | 905 x 89 x 45 mm |
| Weight | 3.9 kg |
| Bezel Width (T/B/L/R) | 15 / 15 / 9 / 9 mm |
| Operating Temperature | 0°C to 50°C |
| Warranty | 3 Years On-Site Exchange |
