Description

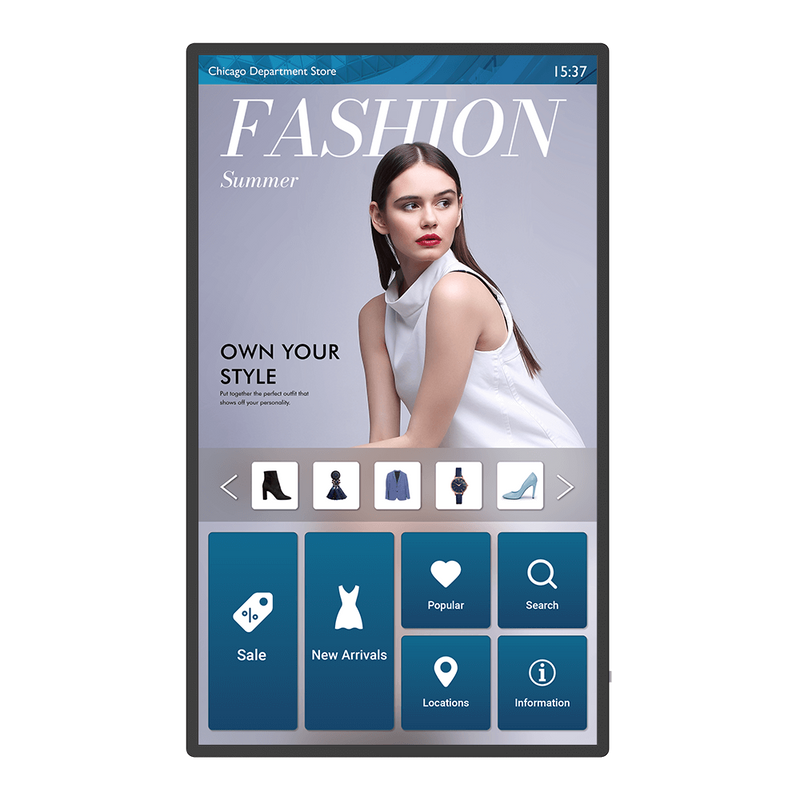

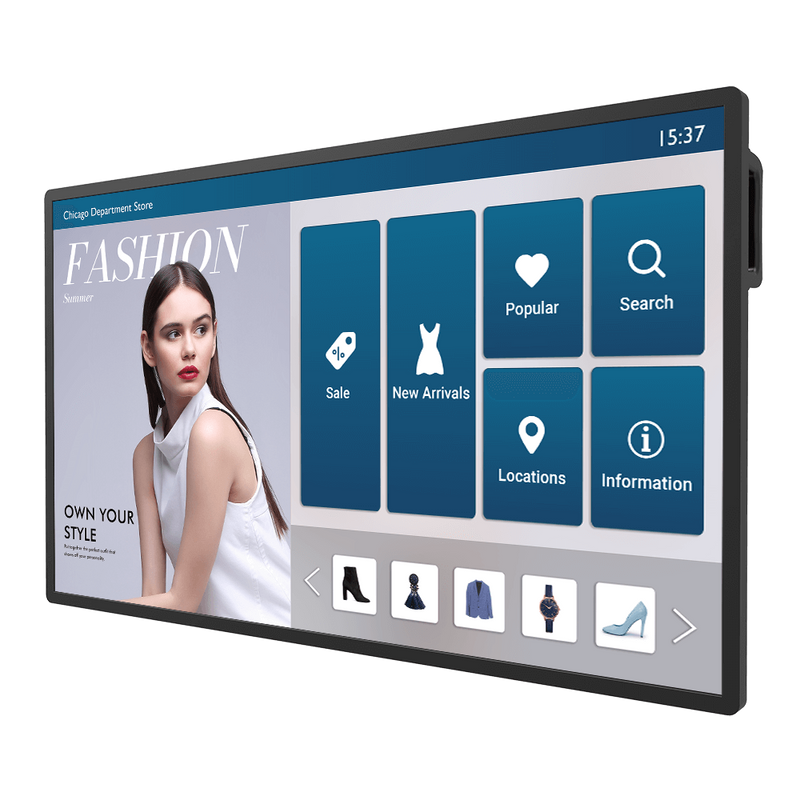

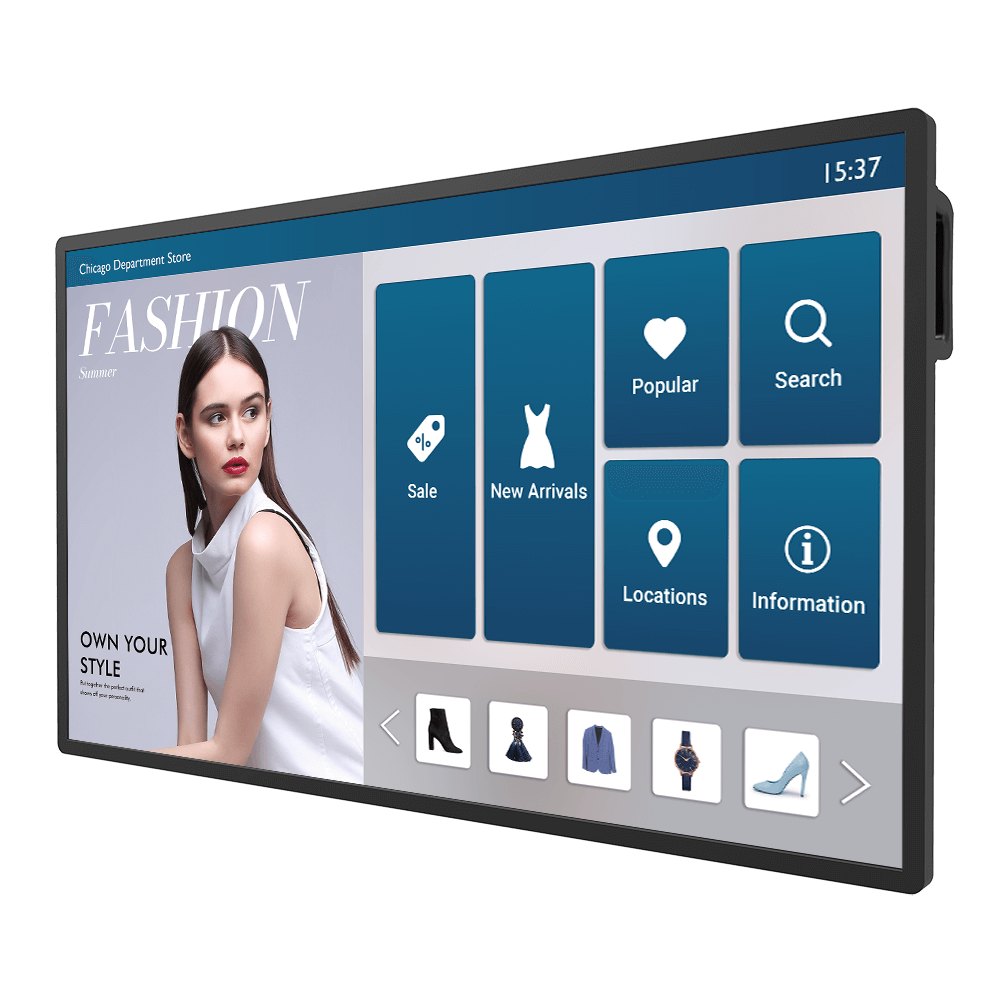

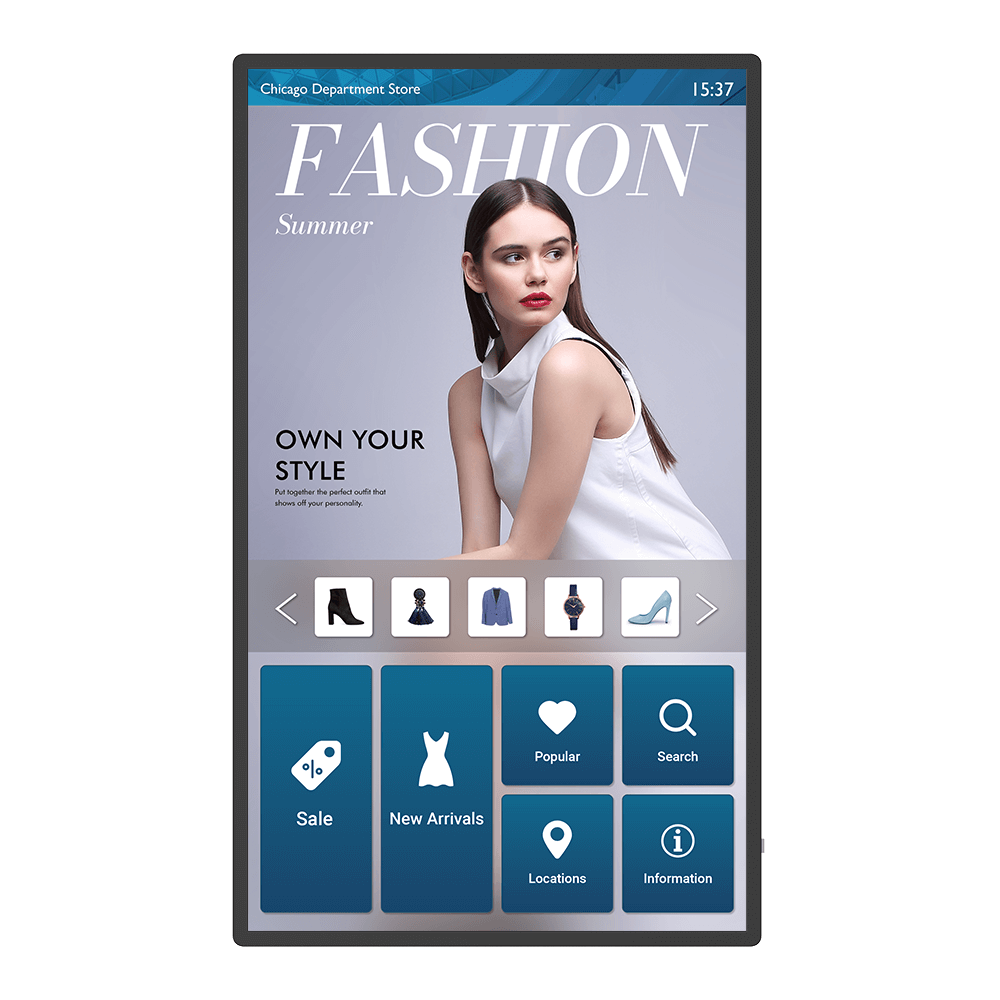

The BenQ IL4301 is a 43-inch 4K UHD smart interactive signage display designed for continuous commercial use. Built for retail, corporate, hospitality, and public environments, it delivers sharp visuals, responsive 40-point infrared touch, and reliable 24/7 operation.
With Android 8.0 built in, 3GB memory, and 32GB storage, the IL4301 enables standalone content playback without the need for an external PC. BenQ’s X-Sign software allows you to create and manage content using over 150 templates, while DMS Cloud and DMS Local provide centralized device management across multiple displays.
The germ-resistant screen coating, certified to be 99.9% effective against common germs, supports safe and confident interaction in high-traffic spaces. Flexible portrait and landscape orientation expands deployment possibilities for interactive kiosks, directories, digital menus, and promotional signage.
Designed for durability and clarity, the IL4301 combines professional-grade image quality, multi-touch interactivity, and robust connectivity for modern digital signage environments.
| Specification | Details |
|---|---|
| Model | IL4301 |
| Screen Size | 43 inches |
| Resolution | UHD 3840 × 2160 |
| Brightness (Typical) | 400 nits |
| Contrast Ratio (Typical) | 1200:1 |
| Viewing Angle | 178° Horizontal / 178° Vertical |
| Response Time | 8 ms |
| Backlight Life | 40,000 hours |
| Panel Surface | Anti-Glare, 1% Haze |
| Operating Hours | 24 hours / 7 days |
| Orientation | Landscape or Portrait |
| Touch Technology | Infrared Touch |
| Touch Points | 40-point multi-touch |
| Touch Resolution | 32768 × 32768 |
| System Memory | 3GB |
| Storage | 32GB |
| Operating System | Android 8.0 |
| Power Supply | 100V–240V, 50–60Hz |
| Power Consumption (Max) | 150W |
| Power Consumption (Typical) | 82W |
| Standby Power | Less than 0.5W |
| Wake-Up Function | HDMI / LAN |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 20% to 85% RH, non-condensing |
| Energy Certification | Energy 8.0 Certified |
| HDMI Input | 2 × HDMI 2.0 |
| DisplayPort Input | 1 × DP 1.2 |
| HDMI Output | 1 × HDMI 2.0 |
| USB Ports | 2 × USB 2.0 Type A, 1 × USB 2.0 Type B (Touch) |
| LAN | Yes |
| Audio | 2 × 10W Built-in Speakers |
| Net Weight | 18.8 kg |
| Dimensions (W × H × D) | 1011.0 × 599.2 × 97.4 mm |
| Bezel Width | 16.6 mm (all sides) |
| VESA Mount | 200 × 400 mm (4 × M6 × 8L) |
| OPS Slot | 1 |
| Wireless Presentation | InstaShare |
| Content Management | X-Sign |
| Digital Broadcasting | X-Sign Broadcast |
| Video Conferencing | TeamViewer Meeting |
| Device Management | DMS Cloud / DMS Local |
