Description

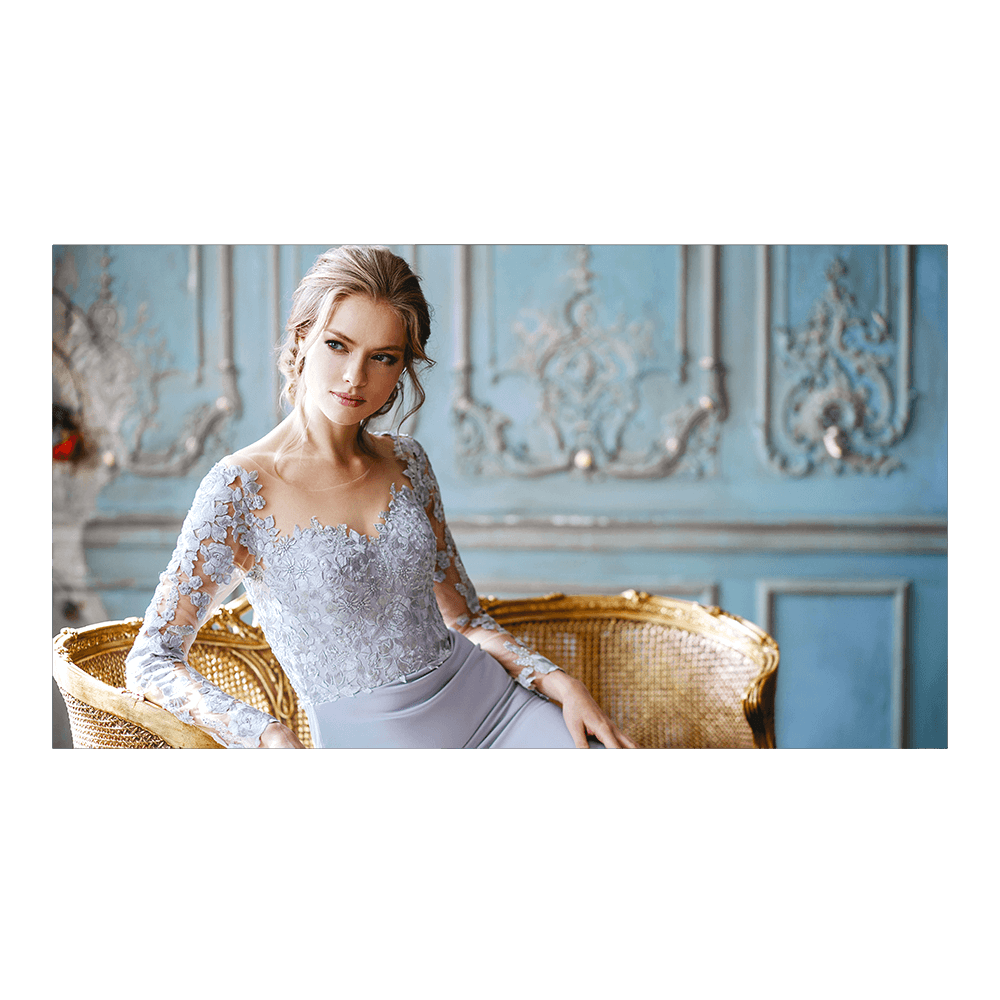

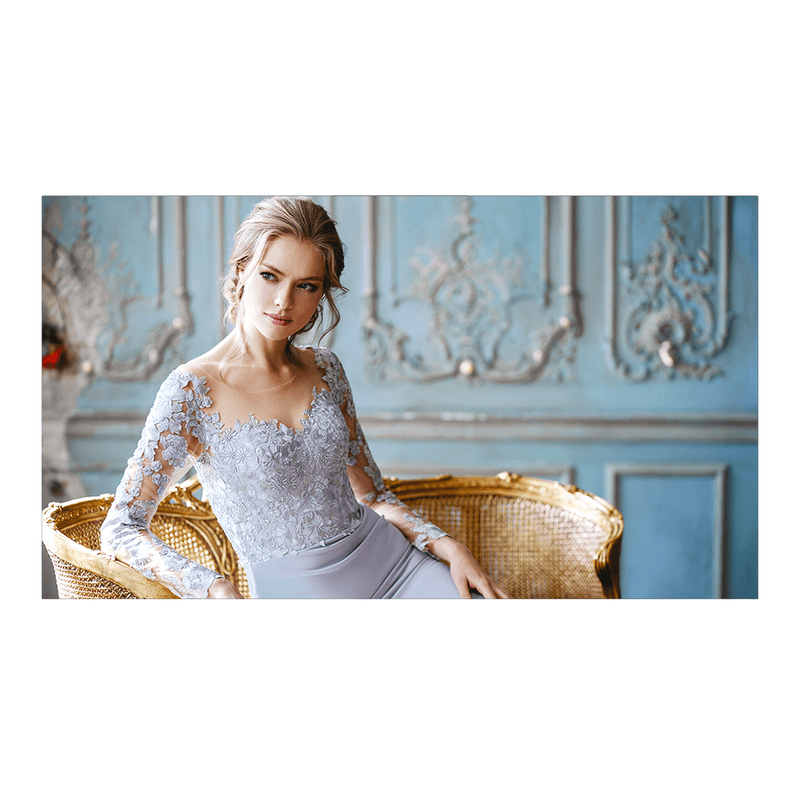

The BenQ PL5502 is a 55-inch Full HD professional video wall display designed for seamless multi-screen installations. With its ultra-narrow 0.44 mm bezel on all sides, the PL5502 creates virtually gapless large-scale digital canvases for control rooms, retail environments, corporate lobbies, and public spaces.
Featuring 500 nits brightness, 10-bit color processing, and D-LED backlight technology, the PL5502 delivers consistent color performance and clear image reproduction across extended operating hours. Built-in video wall configuration, DVI daisy chain support for up to 12 displays, and RS232/LAN control enable streamlined deployment and centralized management.
The display supports landscape and portrait orientation, offers comprehensive connectivity including HDMI, DisplayPort, DVI, and VGA, and includes integrated speakers for flexible installation. With color calibration software support and internal temperature monitoring, the PL5502 is engineered for professional-grade video wall performance and long-term reliability.
| Specification | Details |
|---|---|
| Display Size | 55" |
| Panel Type | D-LED LCD |
| Native Resolution | 1920 × 1080 (Full HD) |
| Brightness (Typical) | 500 nits |
| Contrast Ratio | 1200:1 |
| Response Time | 8 ms |
| Color Processing | 10-bit |
| Aspect Ratio | 16:9 |
| Frame Rate | 60 Hz |
| Bezel Width (T/B/L/R) | 0.44 / 0.44 / 0.44 / 0.44 mm |
| Active Area | 1209.6 × 680.3 mm |
| Dimensions (W × H × D) | 1210.5 × 681.2 × 121.1 mm |
| Weight (Without / With Packing) | 23.5 kg / 35.5 kg |
| Orientation | Landscape / Portrait |
| Video Inputs | VGA ×1, DVI-D ×1, HDMI 1 (2.0) ×1, HDMI 2 (1.4) ×1, DisplayPort ×1 |
| Video Output | DVI-D ×1 (Daisy Chain up to 12 displays) |
| Audio | Audio In ×1 (3.5mm), Audio Out ×1 (RCA), 8W ×2 speakers |
| USB | USB 2.0 ×1 |
| Control Ports | RS232 In/Out ×1, LAN ×1 (Command only) |
| Power Supply | 100–240V AC, 50/60 Hz |
| Typical Power Consumption | 225W |
| Maximum Power Consumption | 245W |
| Standby Power | ≤ 0.5W |
| Operating Temperature | 0°C to 40°C |
| Mounting Standard | VESA 600 × 400 mm |
| Video Wall Support | Yes (Integrated configuration & calibration software) |
