Description

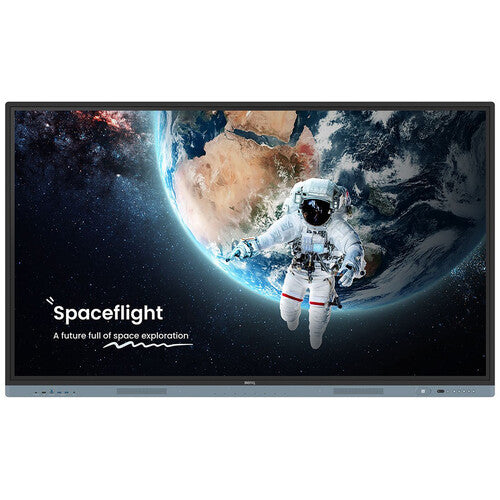

The BenQ Board RE8604 is an 86-inch 4K UHD interactive flat panel designed for modern classrooms and collaborative learning environments. Featuring Zero Bonding technology, precision IR touch with up to 40 touch points, and Android 13 with Google certification, the RE8604 delivers responsive performance, crystal-clear visuals, and seamless collaboration.
Built with germ-resistant nano-ionic silver glass, low blue light, and flicker-free technology, the RE8604 prioritizes health and safety. Its 40W built-in speakers, 5-in-1 USB-C with 65W power delivery, and comprehensive connectivity options make it ideal for interactive teaching, wireless casting, and device integration. With IP5X dust-proof protection and an 18/7 operating schedule, the RE8604 is engineered for durability and consistent performance in demanding educational settings.
| Specification Category | Details |
|---|---|
| Model | RE8604 |
| Display Size | 86” |
| Resolution | 3840 × 2160 (4K UHD) |
| Display Technology | Zero Bonding DLED |
| Aspect Ratio | 16:9 |
| Brightness (Typical) | 450 cd/m² |
| Contrast Ratio (Typical / Dynamic) | 1200:1 / 30000:1 |
| Viewing Angle | 178° / 178° |
| Panel Refresh Rate | 60 Hz |
| Response Time | 8 ms |
| Panel Bit Depth | 10-bit |
| Panel Lifespan | 50,000 hours |
| Operating Hours | 18/7 |
| Glass | 3.2 mm Heat-Tempered, 9H Hardness |
| Surface | Anti-Glare (Haze 28%) |
| Touch Technology | Precision IR |
| Max Touch Points | 40 (Windows), 32 (Android) |
| Touch Response Time | < 5 ms |
| Touch Resolution | 32767 × 32767 |
| Operating System | Android 13 |
| CPU | Octa-Core (A73 ×4 + A53 ×4) |
| GPU | Mali-G52 MP8 |
| Memory | 8GB RAM |
| Storage | 32GB (Expandable up to 544GB) |
| Built-in Speakers | 40W (20W ×2) |
| Connectivity | HDMI In ×3, HDMI Out ×1, DisplayPort 1.2a ×1, VGA ×1 |

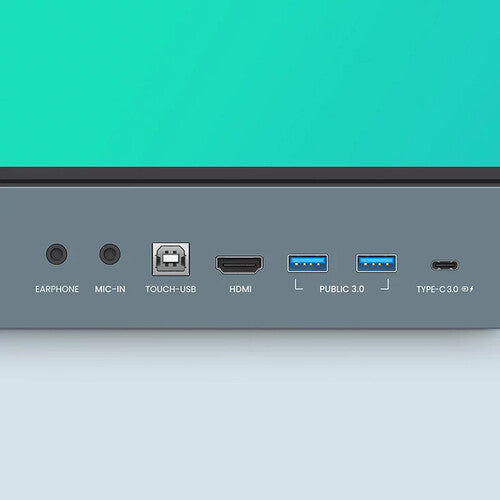

| USB Ports | USB-A 3.0 ×2, USB-A 2.0 ×2, USB-B ×2, USB-C (65W PD) ×1 |
| LAN | RJ45 In/Out ×2 (10/100/1000 Mbps) |
| Wireless | Optional Wi-Fi 6.0, Bluetooth 5.2 |
| OPS Slot | Yes |
| Power Supply | AC 100–240V, 50/60 Hz |
| Power Consumption (Typical) | 106.8W |
| Dimensions (W × H × D) | 1962.4 × 1174.9 × 87.1 mm |
| Net Weight | 63.4 kg |

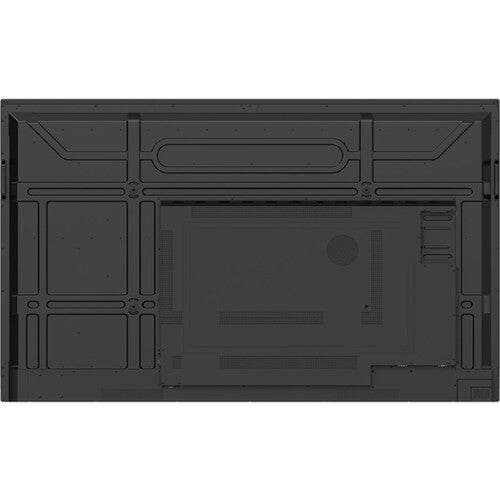

| VESA Mount | 800 × 600 mm |
| Included Accessories | Remote, Stylus ×2, HDMI Cable, USB Cable, Type-C Cable, Wall Mount |
