Description

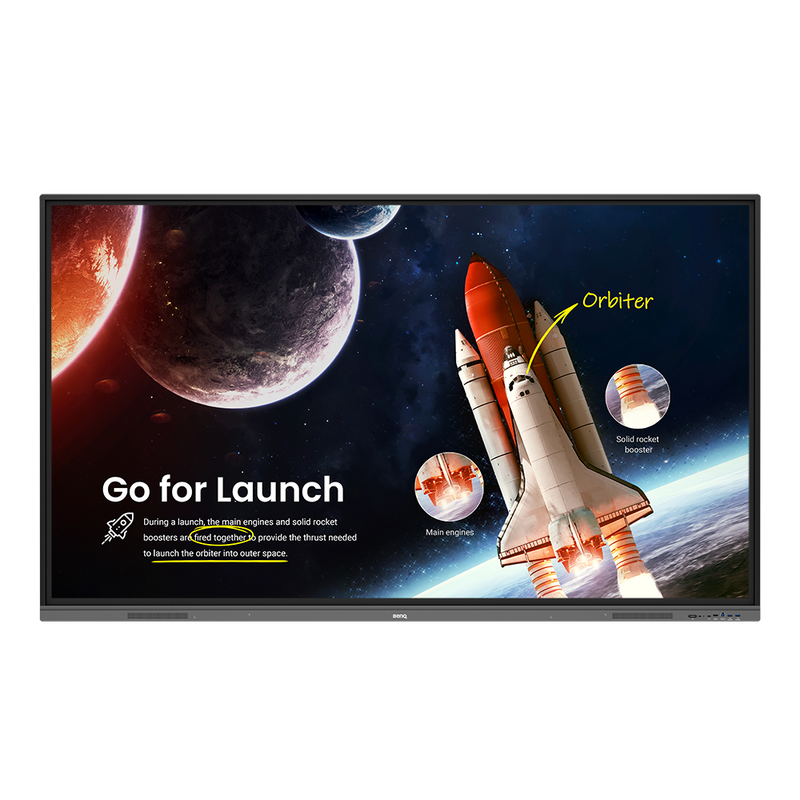

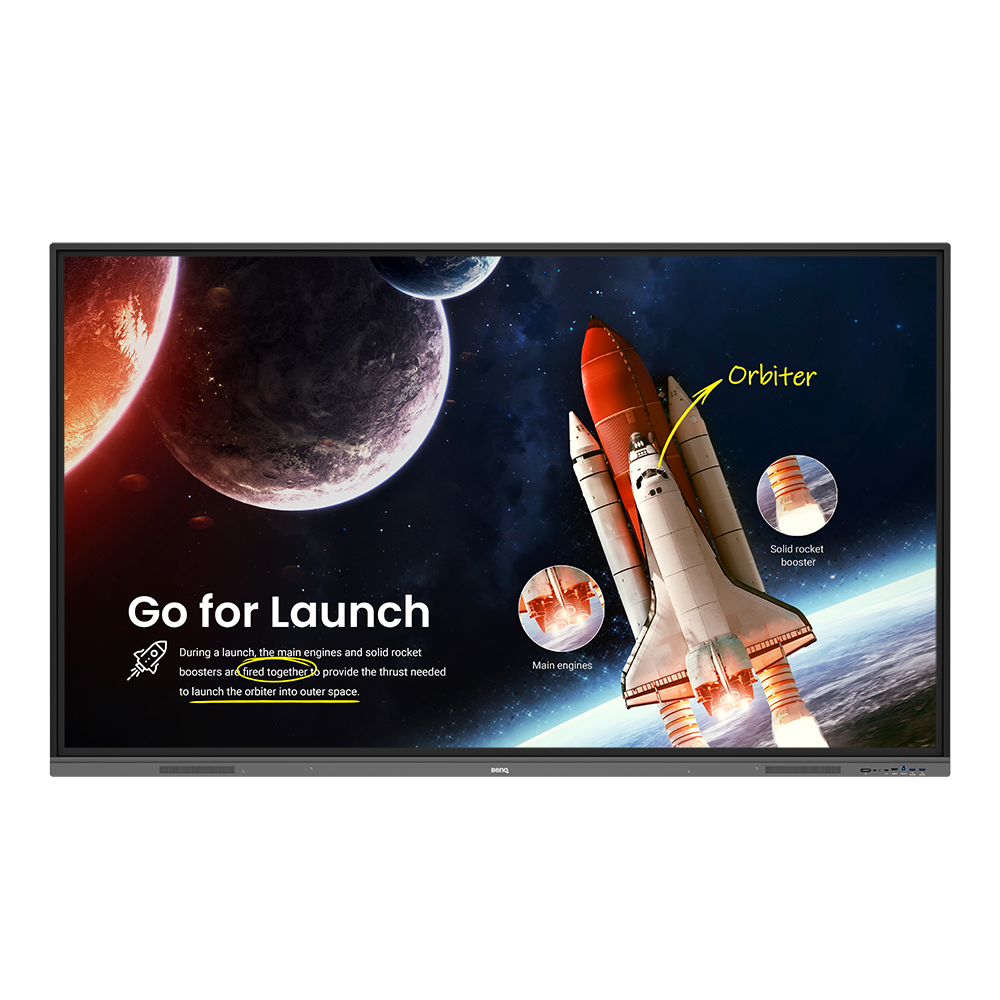

The BenQ Board RE8603 is an 86-inch 4K UHD interactive flat panel designed to create engaging, healthy, and collaborative learning environments. Built for classrooms and professional training spaces, it combines ultra-clear visuals, advanced eye-care technology, and powerful built-in collaboration tools.
Featuring a 3840 × 2160 UHD resolution with 40-point infrared touch technology, the RE8603 enables smooth multi-user interaction using fingers or stylus pens. Its germ-resistant 3.2 mm tempered glass and TÜV-certified low blue light and flicker-free performance help protect user health during extended sessions.
With Android 11 built-in, integrated speakers, InstaShare wireless projection, EZWrite annotation tools, and extensive connectivity including HDMI, USB-C with 65W power delivery, LAN, and RS232 control, the RE8603 supports seamless integration into modern classrooms and enterprise collaboration environments.
Designed for reliability, performance, and ease of management, the RE8603 is a complete interactive solution for dynamic teaching and presentation experiences.
| Specification | Details |
|---|---|
| Model | RE8603 |
| Display Size | 86 inches |
| Panel Type | DLED LCD |
| Resolution | 3840 × 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Brightness (Without Glass) | 400 nits (typical) |
| Brightness (With Glass) | 350 nits (typical) |
| Contrast Ratio | 1200:1 |
| Viewing Angle | 178° |
| Touch Technology | Infrared (IR) |
| Touch Points | 40-point multi-touch |
| Touch Response Time | <10 ms |
| Touch Accuracy | ±1.5 mm (90% area) |
| Minimum Object Size | 2.8 mm |
| Glass Protection | 3.2 mm AG tempered glass, 9H hardness, germ-resistant |
| Operating System | Android 11 |
| CPU | Quad-core A55 |
| RAM | 4 GB |
| Storage | 32 GB |
| Built-in Speakers | 2 × 16W |
| HDMI Inputs | Rear ×2, Front ×1 (HDMI 2.0) |
| HDMI Output | ×1 (4K @ 60Hz with audio) |
| USB-C | Front (Data / Touch / DisplayPort / 65W Power Delivery) |
| USB Ports | USB 3.0 Rear ×2, Front ×2; USB 2.0 Rear ×1 |
| LAN | LAN In ×1 / LAN Out ×1 (10/100/1000 Mbps) |
| RS232 | ×1 |
| VGA | ×1 |
| Power Requirement | AC 100–240V, 50/60Hz |
| Max Power Consumption | 542.5 W |
| Standby Power | <0.5 W |
| VESA Mount | 800 × 600 mm |
| Dimensions (W × H × D) | 1957.0 × 1159.9 × 99.7 mm |
| Net Weight | 60 ±1.5 kg |
| Orientation | Landscape only |
