Description
The BenQ InstaShow VS20 Wireless Video Conferencing System VS20 delivers seamless plug and play screen sharing and professional grade hybrid collaboration. Designed for modern meeting spaces, the VS20 supports 4K video output, built in microphone functionality, and intuitive features such as touchback and extended screen for smooth and interactive presentations.
With support for up to 32 simultaneous connections and 4 split screen mode, the VS20 enables dynamic content sharing in huddle rooms, conference rooms, and large boardrooms. Its dual interface button allows easy switching between USB Type C and USB Type A, ensuring broad device compatibility across Windows and macOS platforms.
Built for enterprise environments, the VS20 features WPA2 AES encryption, a user friendly web interface for IT management, and reliable wireless performance with up to 20 meters transmission distance. BYOM support allows users to host video conferences using their preferred conferencing software while connecting external cameras and audio devices for flexible meeting setups.
Whether for corporate collaboration, hybrid meetings, or training sessions, the VS20 provides secure, high resolution wireless presentation and conferencing in one streamlined solution.
| Specification | Details |
|---|---|
| Model | VS20 |
| Product Type | Wireless Video Conferencing System |
| Interface | USB Type C with spare USB Type A and HDMI cable |
| Input Resolution | Up to 4K at 30fps |
| Output Resolution | Up to 4K at 60fps |
| Split Screen Mode | 4 split mode on or off |
| Simultaneous Connections | Up to 32 devices |
| Wireless Standard | IEEE 802.11ac 5GHz 2T2R and IEEE 802.11n 2.4GHz 2T2R |
| Maximum Data Rate | Up to 867 Mbps |
| Frequency Band | 2.4GHz and 5GHz |
| Wi Fi Security | WPA2 AES 128bit and WPA2 Enterprise 256bit |
| WAN Port | 1 Gbps RJ45 |
| Supported Platforms | Windows and macOS |
| Supported Wireless Display | AirPlay and Miracast |
| Maximum Transmission Distance | Up to 20 meters |
| Power Consumption | 11W typical 36W maximum |
| Standby Power Consumption | Less than 0.5W |
| Operating Temperature | 0°C to 40°C |
| Weight | 530g Receiver with 2 Buttons |
| Connectivity Ports | HDMI in, HDMI out, USB for camera or speaker, USB for touchback, RJ45, Power jack |

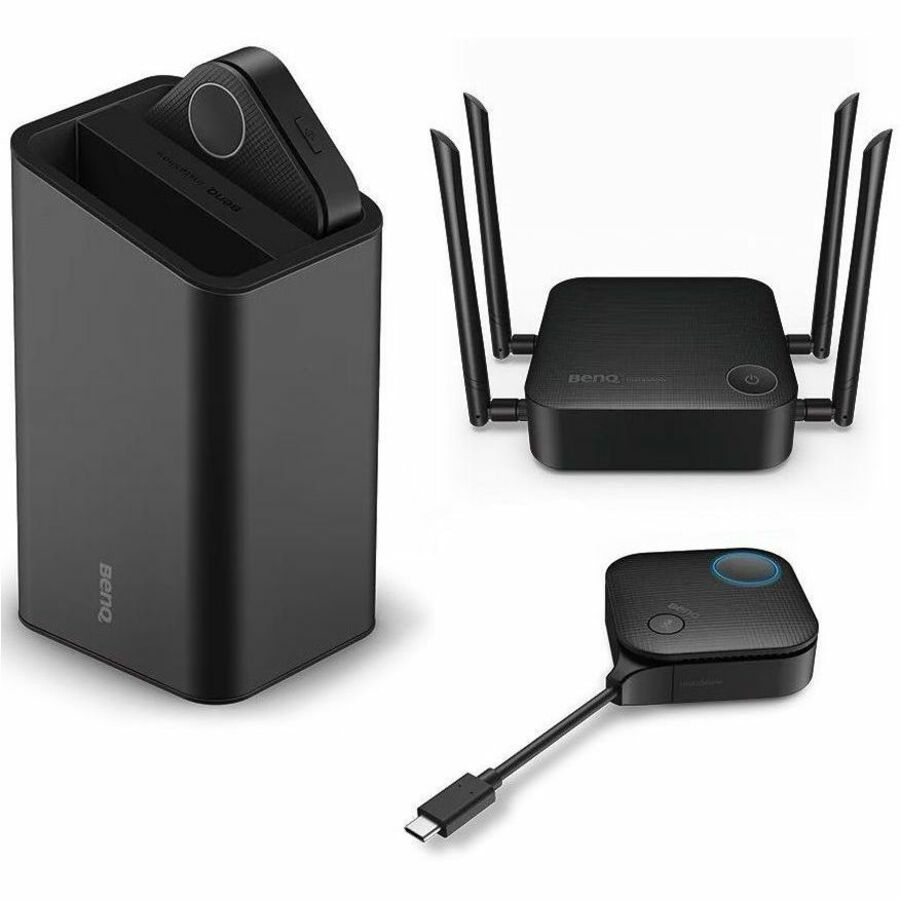

| Included Accessories | Receiver x1, Button x2, Cradle x1, Antenna x4, Power Adapter x1, Quick Start Guide x1, Spare Cable x1 |
