Description

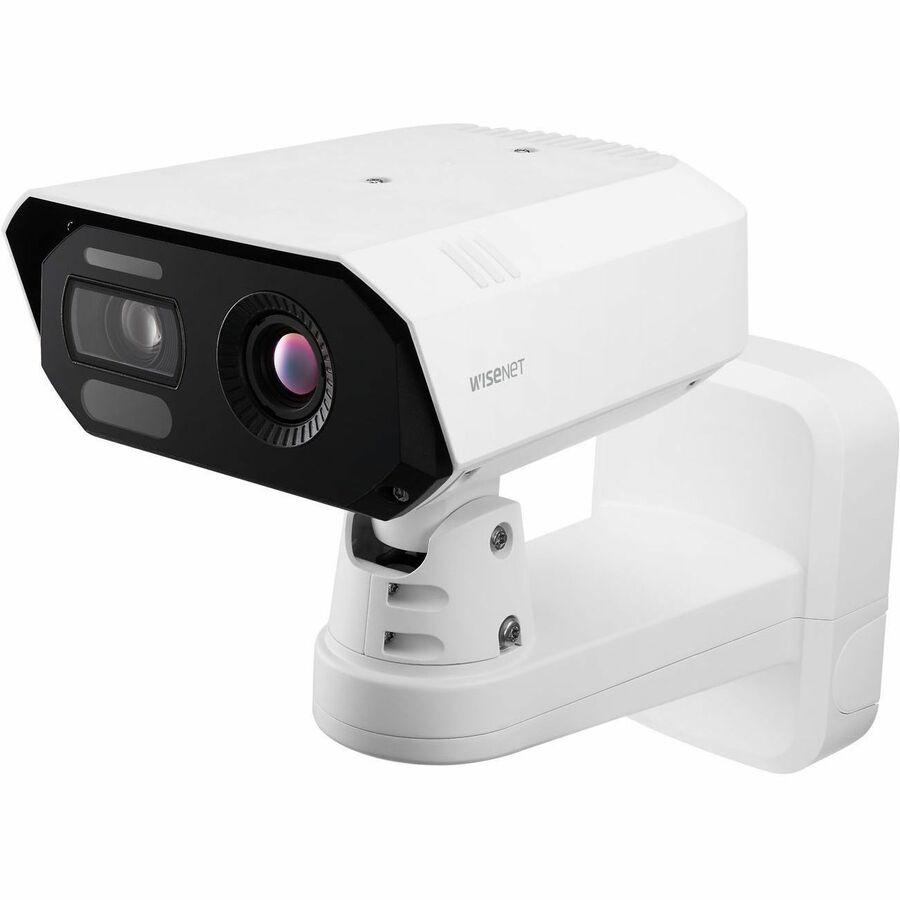

The Wisenet TNM-C4960TD is a high-performance Bi-Spectrum AI Thermal Camera that combines a VGA thermal sensor with an 8MP 4K visible sensor in a single, unified device. Designed for advanced perimeter protection, critical infrastructure, and long-range detection, it delivers precise thermal imaging paired with high-resolution visible video for total situational awareness.
Its dual-sensor architecture enables simultaneous thermal and visible outputs over one IP connection. The thermal channel uses a 25mm fixed lens (17° FoV), while the visible channel features a 10.9–29mm motorized varifocal lens (42°–15° FoV), ensuring flexible coverage for long-distance monitoring.
Powered by an AI engine, the camera supports intelligent analytics including object detection, virtual line/area events, loitering, intrusion, stopped vehicle, and traffic jam detection. AI-based noise reduction and WiseStream smart compression optimize clarity and bandwidth. With WDR 120dB, IK10 impact resistance, IP66/IP67 weather protection, NEMA 4X and NEMA TS 2 compliance, and FIPS 140-2-certified secure storage, the TNM-C4960TD is built for demanding outdoor environments.
Dual microSD slots (up to 512GB total), PoE+ support, 12VDC, and an all-in-one wall/pole mounting design make deployment simple and reliable.
| Category | Specification |
|---|---|
| SKU | TNM-C4960TD/KEX |
| Camera Type | Bi-Spectrum AI Thermal & 8MP Visible Network Camera |
| Thermal Sensor | Uncooled microbolometer, 640×480 |
| Visible Sensor | 1/1.8" CMOS, up to 3840×2160 (4K) |
| Thermal Lens | 25mm fixed, FoV: H17° / V13° / D22° |
| Visible Lens | Motorized 10.9–29mm, FoV: H42°–15° |
| Max Frame Rate | 30fps (H.265/H.264) on both channels |
| Compression Codecs | H.265, H.264, MJPEG |
| Smart Codec | WiseStream III (visible), WiseStream II (thermal) |
| AI Features | Object detection (Person/Face/Vehicle/License Plate), Virtual line/area, Loitering, Intrusion, Enter/Exit, Directional detection, Stopped vehicle, Traffic jam |
| Noise Reduction | WiseNR II (AI-based), SSNR V |
| Dynamic Range | WDR 120dB |
| Minimum Illumination (Visible) | Color: 0.06 Lux / B/W: 0.005 Lux |
| Network Interface | RJ-45 (10/100/1000BASE-T) |
| Streaming | Up to 3 profiles; unicast/multicast |
| Protocols | IPv4/IPv6, TCP/IP, UDP, RTP, RTSP, NTP, HTTP/HTTPS, DHCP, FTP, SMTP, SNMP, QoS, ONVIF S/T |
| Audio I/O | 1x audio in (mic/line selectable), 1x audio out |
| Alarm I/O | 4 configurable I/O ports |
| Edge Storage | 2× microSD/SDHC/SDXC, up to 256GB each (512GB total) |
| Security | TPM 2.0, FIPS 140-2 Level 2, Secure boot, Encrypted firmware |
| Power | PoE+ (IEEE 802.3at) or 12VDC |
| Power Consumption | PoE+: Max 23.5W; 12VDC: Max 19.5W |
| Operating Temperature | –40°C to +60°C (startup above –30°C) |
| Durability Ratings | IP66/IP67, IK10, NEMA 4X, NEMA TS2 |
| Material / Color | Aluminum / White (RAL 9003) |
| Dimensions | 353.4 × 287.5 × 191.2 mm |
| Weight | 4.53 kg |
