Description

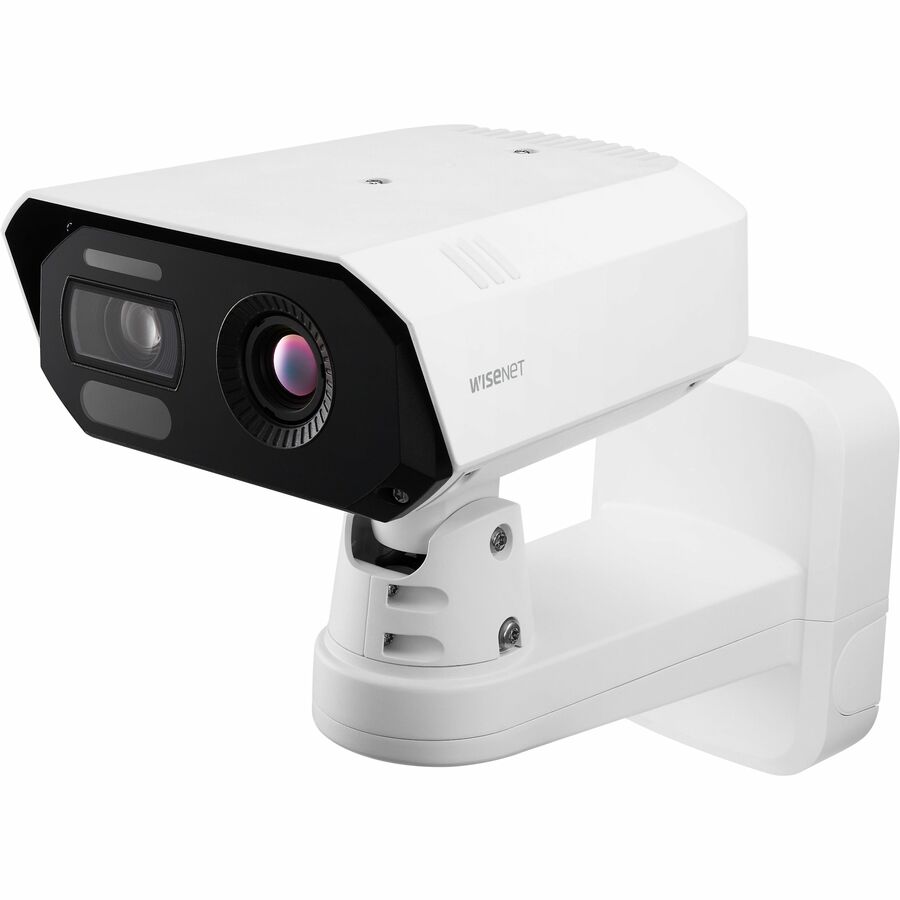

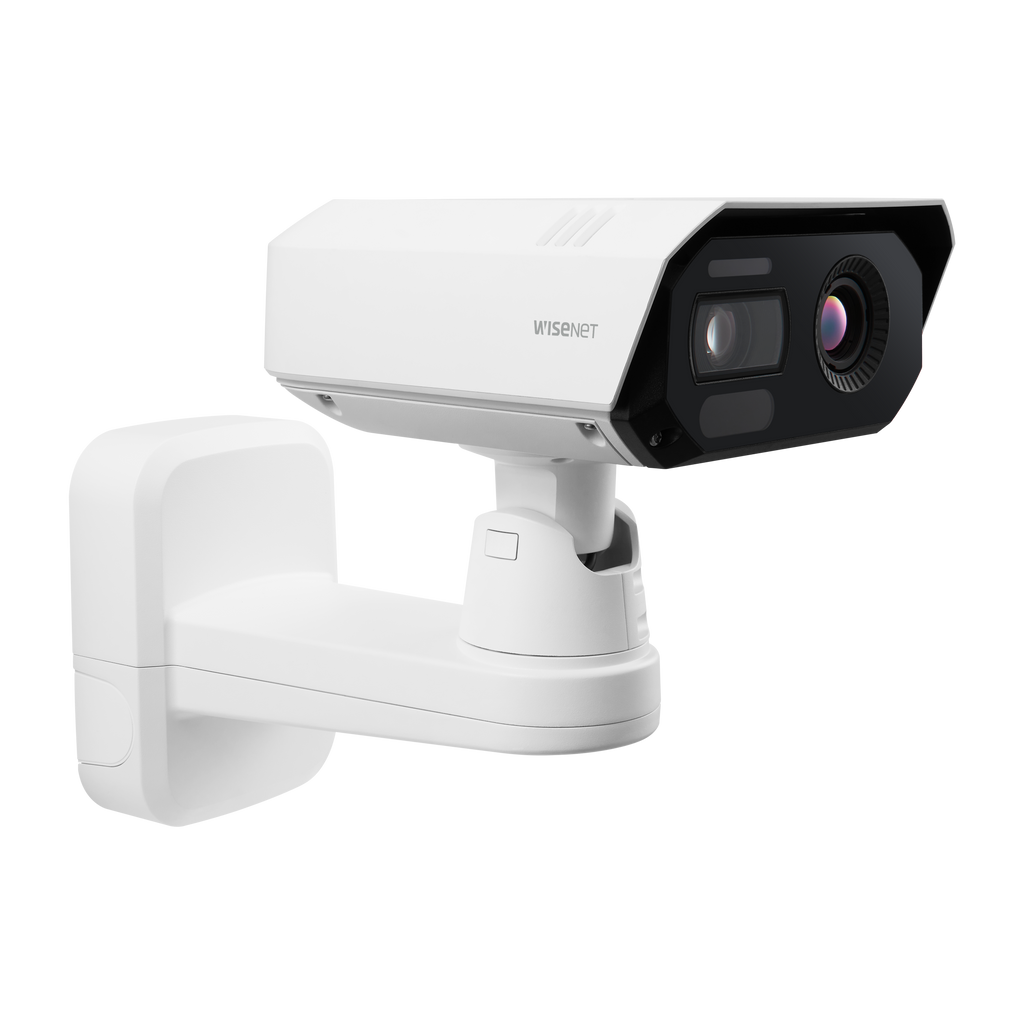

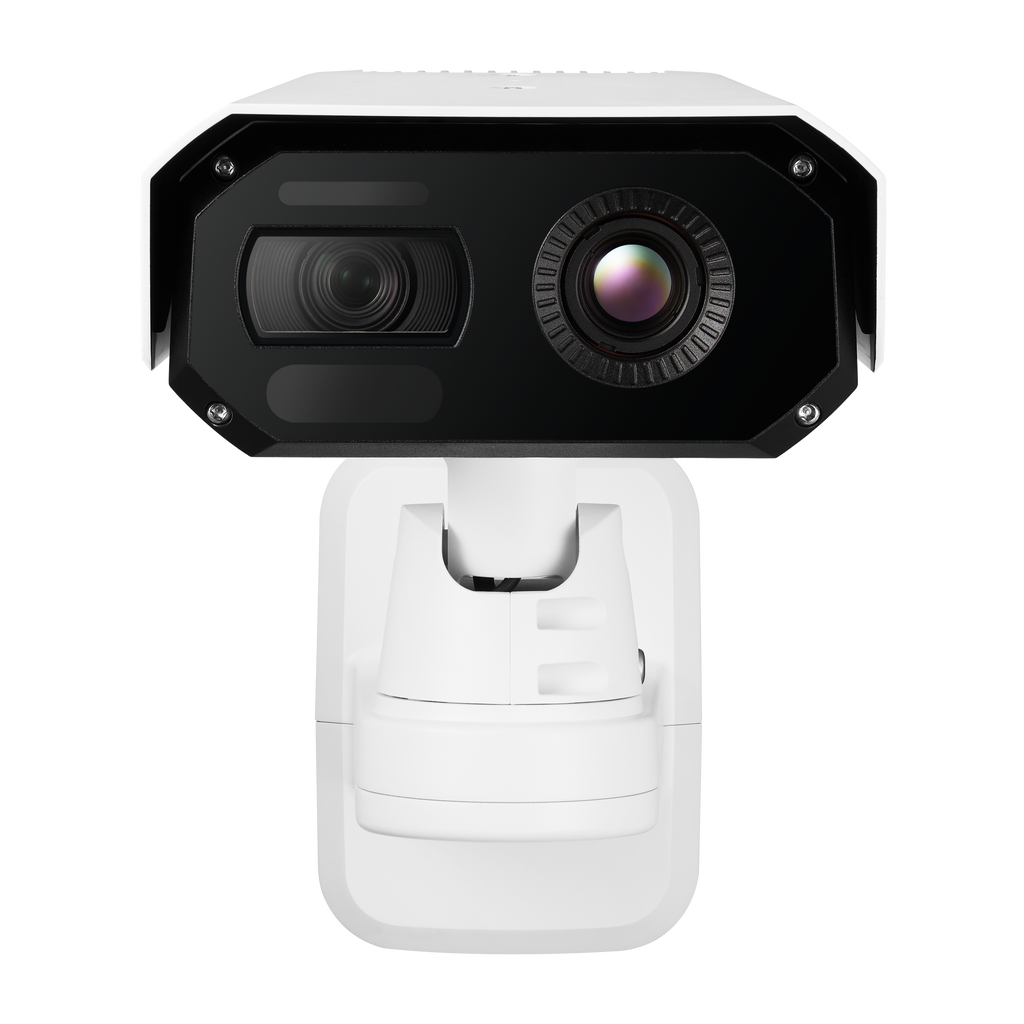

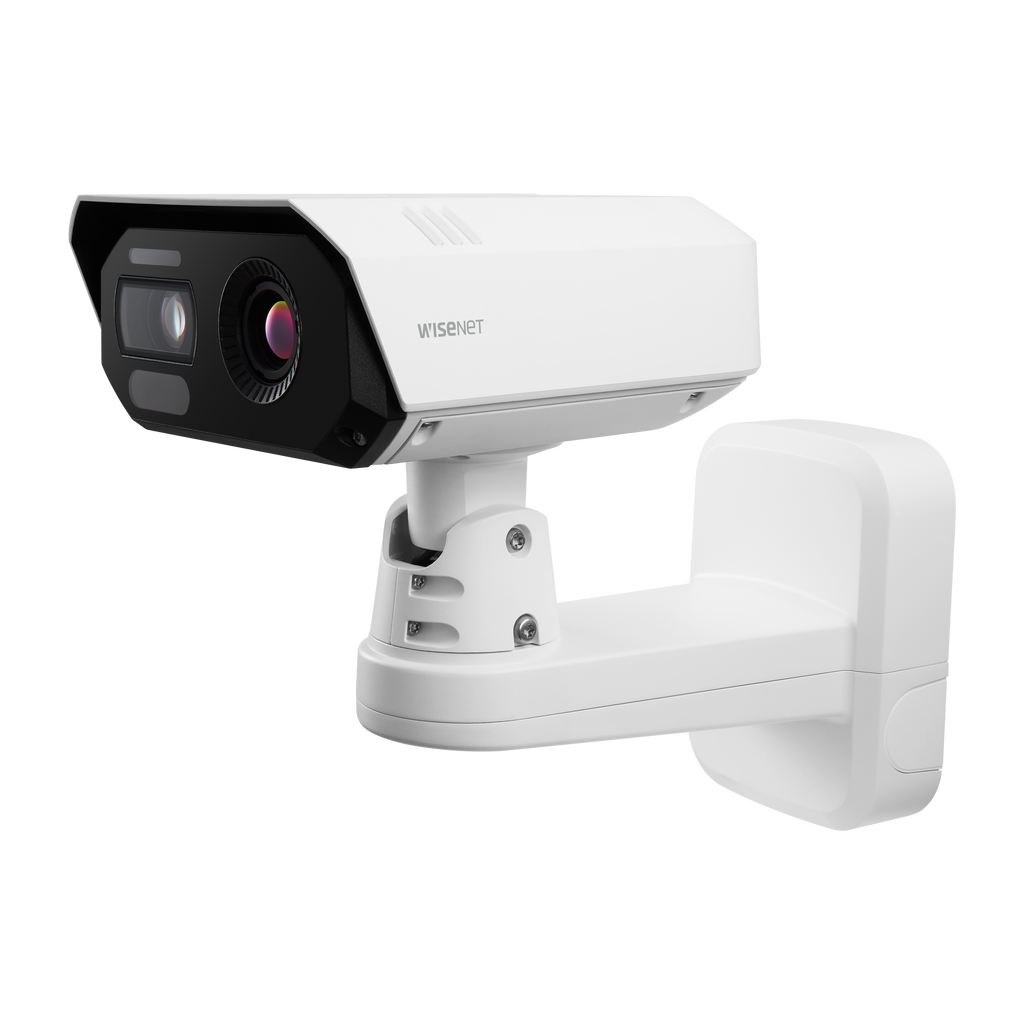

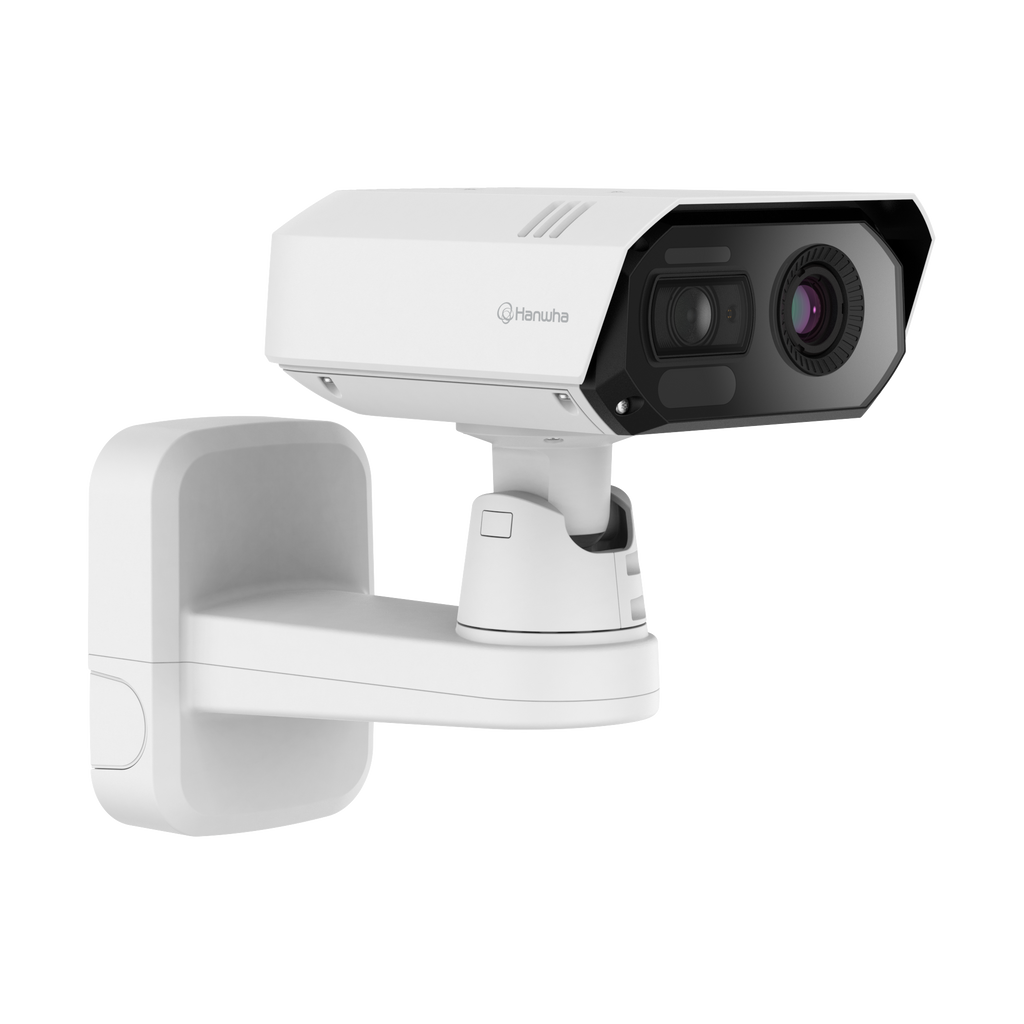

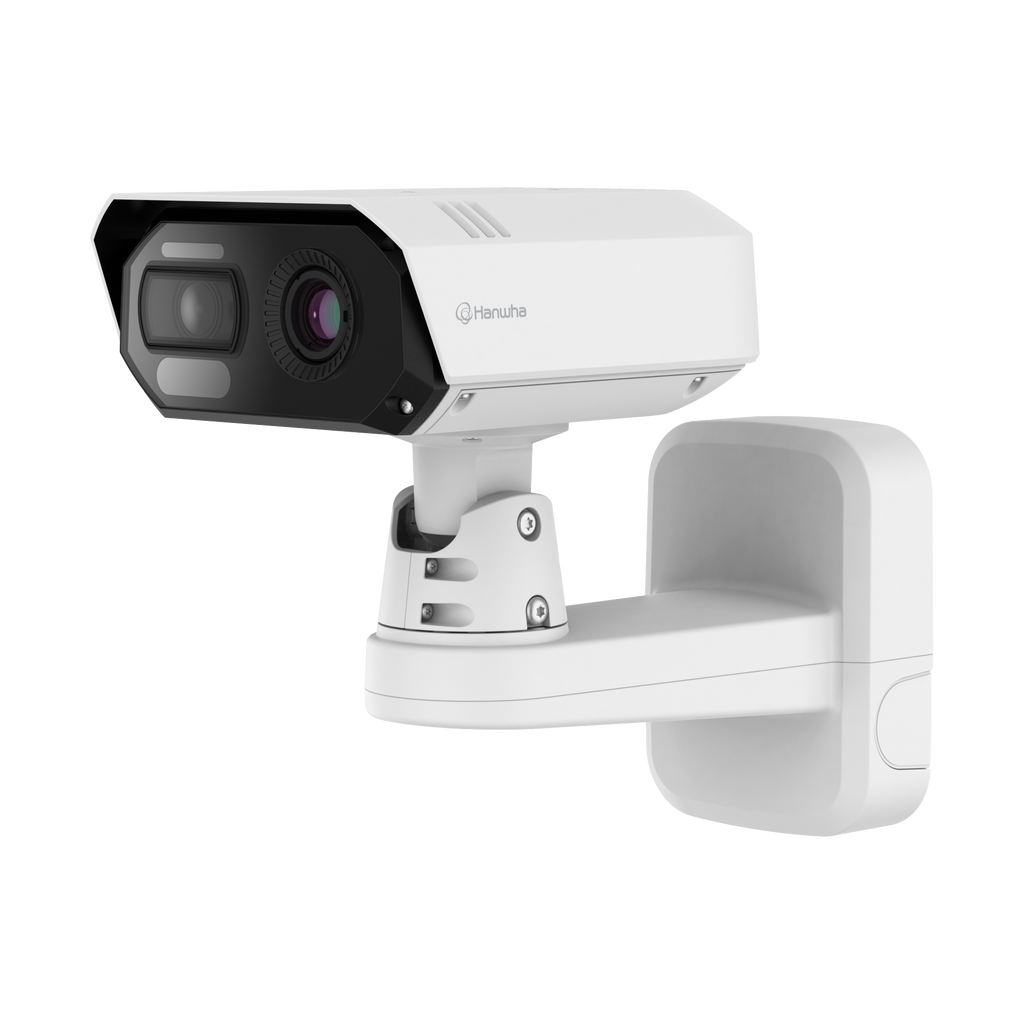

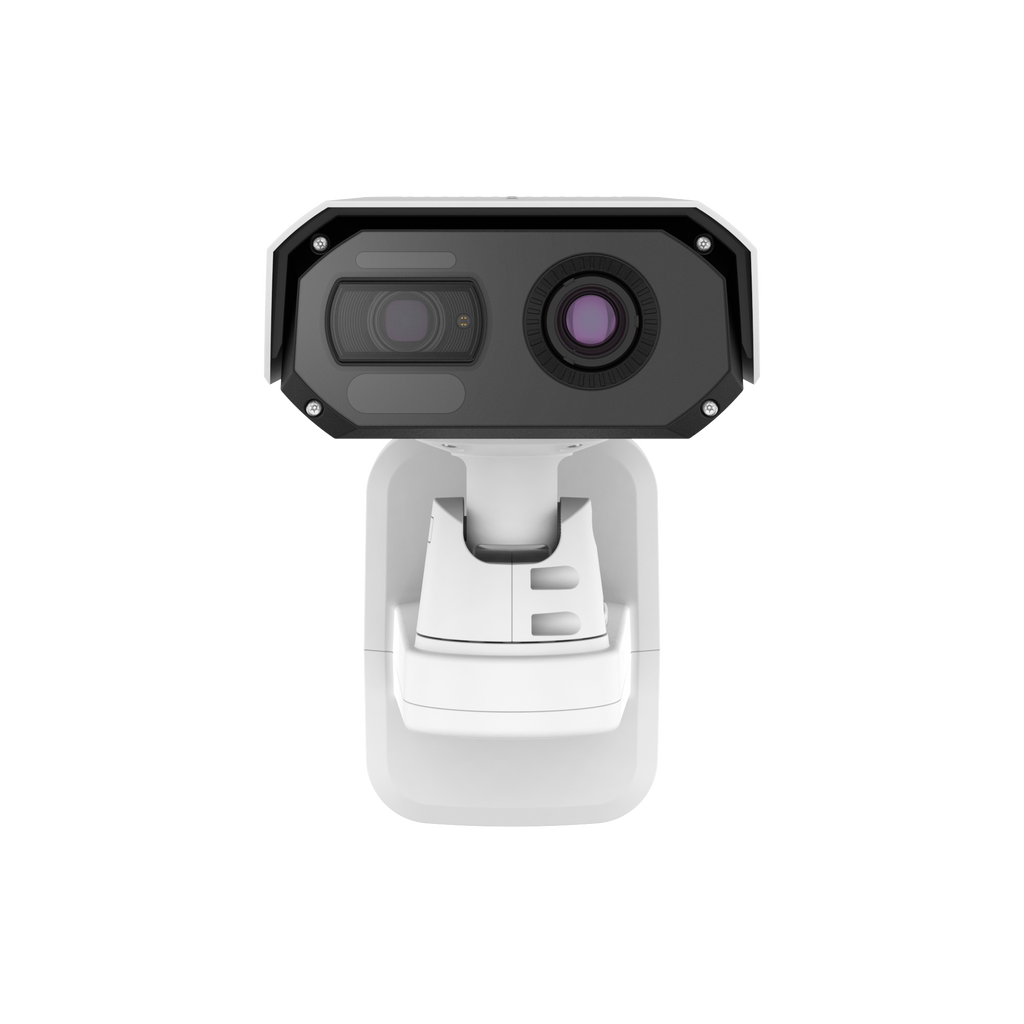

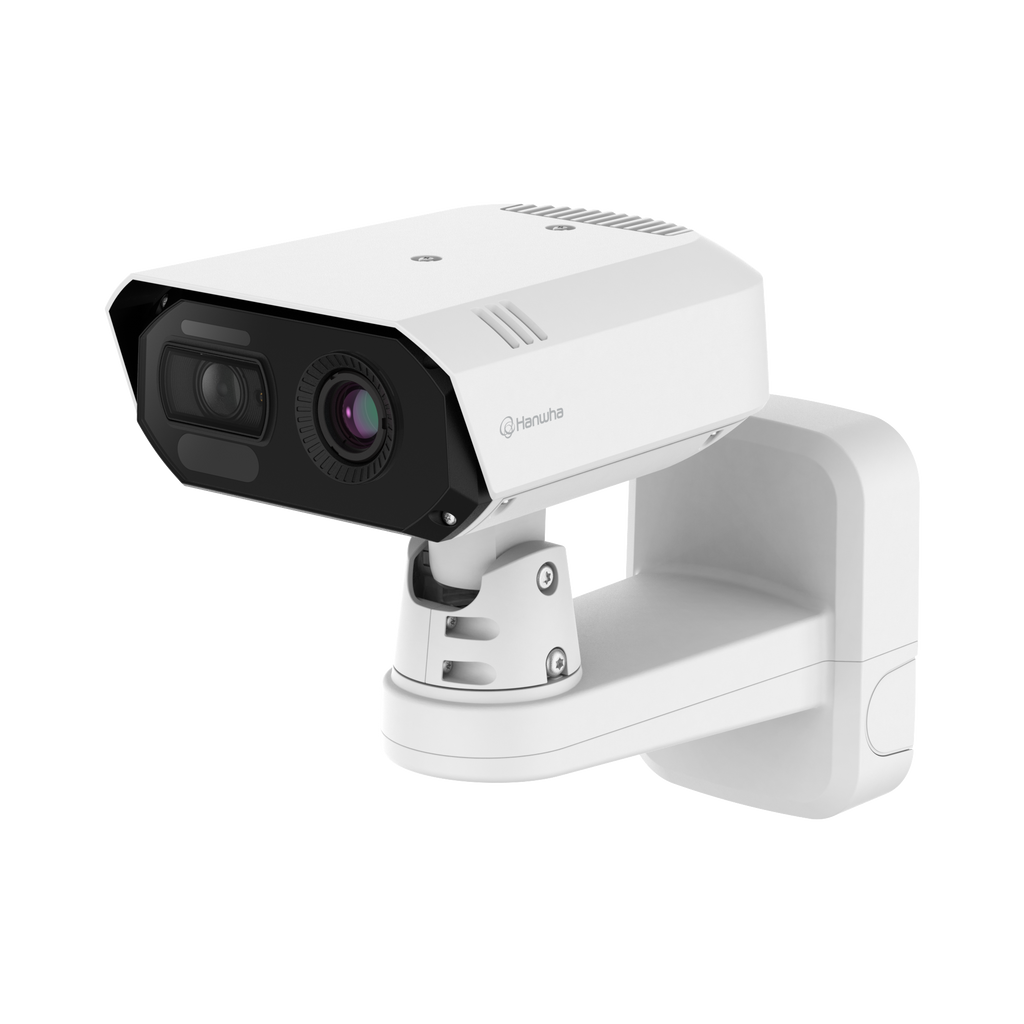

The Wisenet TNM-C4940TD is a high-performance bi-spectrum AI thermal camera engineered for advanced perimeter protection, critical infrastructure monitoring, and complex outdoor environments. This dual-sensor device combines a VGA thermal imager with an 8MP visible sensor, delivering precise detection, classification, and visual verification from a single IP address.
Equipped with a 9.1mm fixed thermal lens and a 4.4–9.3mm motorized varifocal visible lens, the TNM-C4940TD provides exceptional flexibility for wide-area monitoring and long-range detection. Its AI-powered analytics support object classification, virtual line/area detection, loitering, intrusion, traffic events, and more—enhancing accuracy while reducing false alarms.
Designed for demanding applications, the camera features 120dB WDR, IR illumination up to 30m, WiseNR II noise reduction, and advanced thermal performance with ≤60mK NETD. The rugged housing meets IP66/IP67, IK10, and NEMA 4X/TS2 standards, ensuring reliability in extreme weather and harsh outdoor environments. Dual microSD slots support up to 512GB total edge storage, while PoE+ and 12VDC enable flexible installation.
| Category | Details |
|---|---|
| SKU | TNM-C4940TD/KEX |
| Camera Type | Bi-spectrum AI thermal & 4K visible dual-sensor network camera |
| Thermal Sensor | Uncooled microbolometer, 640×480, ≤60mK NETD, 8–14μm |
| Visible Sensor | 1/1.8" CMOS, up to 3840×2160 (4K) resolution |
| Thermal Lens | 9.1mm fixed; HFOV 50° / VFOV 37° |
| Visible Lens | 4.4–9.3mm motorized varifocal; HFOV 112°–48° |
| Max Frame Rate | 30fps (H.265/H.264) for both channels |
| IR Illumination | 30m (98ft), 850nm |
| WDR | 120dB |
| Noise Reduction | WiseNR II (visible), SSNR V |
| Analytics (AI-Based) | Object detection (person/face/vehicle/license plate), virtual line/area, intrusion, loitering, enter/exit, stopped vehicle, traffic jam |
| Additional Analytics | Motion detection, shock detection, audio detection, temperature change detection |
| Smart Codec | WiseStream III (visible), WiseStream II (thermal) |
| Video Compression | H.265, H.264 (Main/High), MJPEG |
| Audio | Audio in (mic/line selectable), audio out |
| Edge Storage | Dual microSD/SDHC/SDXC up to 256GB × 2 (512GB total) |
| Networking | RJ-45 10/100/1000BASE-T; IPv4/IPv6, HTTPS, 802.1X, ONVIF S/T |
| Cybersecurity | Secure boot, signed firmware, TPM 2.0 with FIPS 140-2 Level 2 |
| Operating Temperature | –40°C to +60°C (–40°F to +140°F) |
| Power | PoE+ (Class 4) or 12VDC |
| Power Consumption | PoE+: Max 25.5W; 12VDC: Max 21.5W |
| Ingress/Impact Ratings | IP66/IP67, IK10, NEMA 4X, NEMA TS2 |
| Material / Color | Aluminum, White (RAL9003) |
| Dimensions | 353.4 × 287.5 × 191.2 mm (13.92 × 11.32 × 7.53 in) |
| Weight | 4.53 kg (9.99 lb) |
