Description
Unleash new possibilities in the classroom with the BenQ Board Master RM6504. Designed for modern education environments, this 65-inch 4K UHD interactive display combines Google-powered tools, advanced collaboration features, and comprehensive health protection to create smarter, safer learning spaces.
Powered by Android 14 with EDLA certification, the RM6504 integrates Google services such as Google Drive, Docs, Sheets, Slides, Meet, and Google Play, enabling seamless lesson delivery and collaboration. Teachers can personalize their home screen, use Google Search instantly, add widgets, and leverage AI tools like OCR, text-to-speech, and multilingual translation for more inclusive instruction.
EZWrite 6 transforms the board into a powerful cloud-enabled whiteboard. Educators can import and annotate PowerPoint, Word, Excel, and PDF files, expand the canvas, split the screen for interactive activities, and save lessons for future use. With InstaShare 2, students and teachers can wirelessly cast screens, photos, videos, or live camera feeds while maintaining full session control.
Built for clarity and performance, the RM6504 features a UHD IPS panel with 450 nits brightness, 10-bit color depth, and High Precision IR touch supporting up to 40 touch points. The zero-gap glass design ensures natural writing, while dual 20W speakers and an 8-microphone array deliver clear audio for in-class and hybrid learning.
ClassroomCare technology helps protect student health with TÜV-certified antimicrobial nano-ionic silver coating, Eyesafe Certified 2.0 blue light reduction, anti-glare treatment, flicker-free performance, and IP5X dust resistance. Secure login options including NFC, QR code sign-in, and cloud account syncing streamline access while protecting school data.
With robust connectivity, centralized device management, comprehensive analytics, and X-Sign Broadcast for campus-wide communication, the BenQ Board Master RM6504 is a complete interactive solution for forward-thinking schools.
| Specification | Details |
|---|---|
| Model | RM6504 |
| Screen Size | 65 inches |
| Panel Type | IPS |
| Resolution | UHD 3840 × 2160 |
| Brightness | 450 nits |
| Contrast Ratio | 1200:1 (typical), 50,000:1 (dynamic) |
| Color Depth | 10-bit |
| Touch Technology | High Precision IR |
| Touch Points | Up to 40 |
| Touch Response Time | < 8 ms |
| Glass Hardness | 9H tempered, anti-glare |
| Germ-Resistant Technology | Nano-ionic silver coating |
| Operating System | Android 14 with EDLA |
| CPU | Arm Cortex-A73 ×4 + A53 ×4 |
| GPU | Arm Mali-G52 MP8 |
| Memory / Storage | 8 GB RAM / 128 GB storage (expandable up to 1 TB) |
| Speakers | 2 × 20W front-facing |
| Microphone | 8-microphone array, up to 8 m pickup range |
| USB-C | 1 × USB-C 3.0 with 65W Power Delivery, additional USB-C ports |
| HDMI | 3 × HDMI 2.0 in, 1 × HDMI 2.0 out |
| DisplayPort | 1 × DP 1.2a |
| VGA | 1 × VGA in |
| Ethernet | Gigabit LAN |
| Wireless | Wi-Fi 6, Bluetooth 5.2 |
| OPS Slot | Yes |

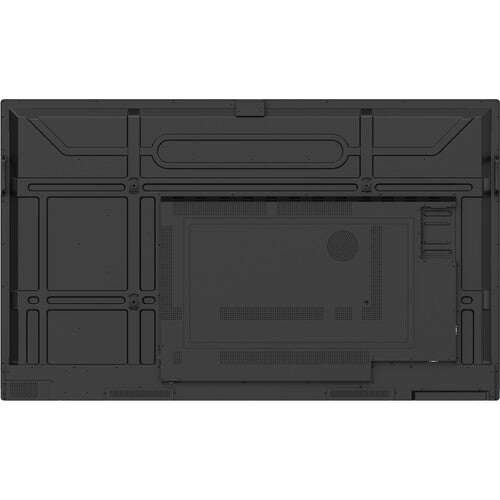

| VESA Mount | 600 × 400 mm (4 × M8 × 25L) |
| Dimensions (W × H × D) | 1489.3 × 905.8 × 87.1 mm |
| Weight | 37.8 kg (product) |
| Typical Power Consumption | 106.1 W |
| Included Accessories | Wall mount, 2 pens, remote control, VGA cable, HDMI cable, USB touch cable, USB-C cable |
