Description

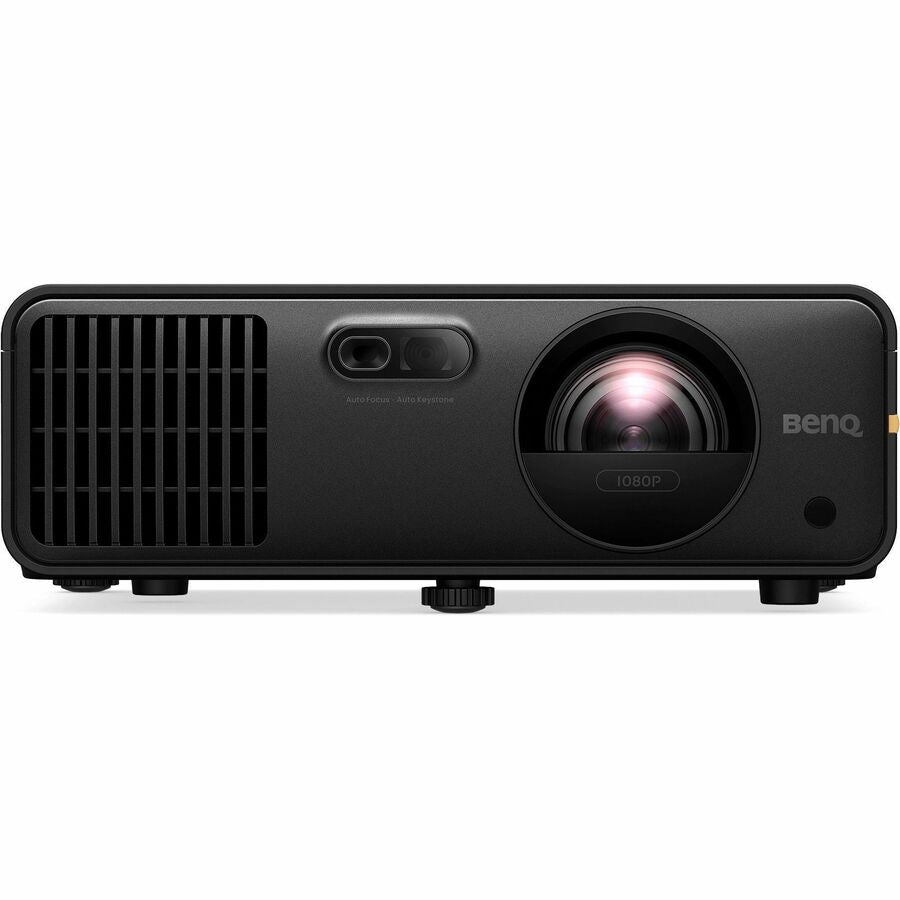

The BenQ AH700ST is a high-brightness Full HD laser projector engineered for immersive short-throw projection and golf simulation environments. Delivering 4000 ANSI lumens with a powerful 0.69–0.83 short throw ratio, it can project large, vibrant 1080p images from a short distance, making it ideal for simulator bays, compact rooms, and entertainment setups.
Designed for precision and convenience, the AH700ST features motorized 1.2x zoom, auto focus, and Auto Screen Fit for quick installation and accurate image alignment. 2D keystone correction and Corner Fit provide flexible image adjustments, ensuring a perfectly squared picture even in challenging mounting positions.
Its dedicated Golf Mode optimizes visuals for realistic course detail and color accuracy, while the laser light source delivers up to 20,000 hours in Normal mode and up to 30,000 hours in Eco mode. With IP5X dustproof certification, the AH700ST offers enhanced durability and reduced maintenance requirements.
Equipped with dual HDMI 2.0 inputs, USB-C with DisplayPort Alt Mode, RS232, and Wi-Fi readiness, this projector integrates seamlessly into modern AV systems and simulation setups. A built-in 10W speaker, compact 3.3 kg design, and wide 100–240V power compatibility make it a versatile and reliable projection solution.
| Specification | Details |
|---|---|
| Projection System | DLP Single |
| DMD Type | 0.65" 1080P |
| Native Resolution | 1920 × 1080 (Full HD) |
| Brightness | 4000 ANSI Lumens |
| Contrast Ratio | 3,000,000:1 (Full On/Full Off) |
| Display Colors | 30-bit (1.07 billion colors) |
| Native Aspect Ratio | 16:9 (5 selectable aspect ratios) |
| Light Source | Laser |
| Light Source Life | Up to 20,000 hours (Normal), 30,000 hours (Eco) |
| Throw Ratio | 0.69 – 0.83 (Short Throw) |
| Zoom | 1.2x Motorized |
| Lens Control | Motor Zoom & Auto Focus |
| Keystone Correction | 2D Keystone: Vertical ±20°, Horizontal ±20° |
| Corner Fit | Supported |
| Projection Size | 60" – 120" |
| Projection Offset | 102.5% ± 2.5% |
| Dust Protection | IP5X Certified |
| Built-in Speaker | 10W × 1 |
| HDMI Inputs | 2 × HDMI 2.0 (HDCP 1.4/2.2) |
| USB Ports | 1 × USB Type-A (1.5A Power/FW), 1 × USB Type-A (Wi-Fi Dongle) |
| USB-C | DisplayPort Alt Mode + 5V/1A Output |
| RS232 | 1 × D-sub 9-pin |
| Audio Out | 3.5mm Mini Jack |
| IR Receiver | Front and Top |
| Security | Kensington Lock Slot & Security Bar |
| Noise Level | 32 dBA (Normal), 29 dBA (Eco) |
| Power Consumption | 320W (Max), 192W (Normal), 136W (Eco) |
| Standby Power | < 0.5W |
| Power Supply | 100 – 240V AC |
| Dimensions (W × D × H) | 303.5 × 234.5 × 112.4 mm |
| Weight | Approx. 3.3 kg |
| Operating Temperature | 0°C – 40°C |
