Description
The BSS Soundweb London BLU-806 (BSSBLU806M-US) is a powerful, open-architecture networked signal processor designed for high-performance installed sound systems. Featuring configurable I/O, Dante audio networking, and BLU link digital audio bus technology, the BLU-806 provides exceptional flexibility for corporate, hospitality, education, and large-scale AV environments.
Built around a fully configurable architecture using HiQnet™ London Architect software, the BLU-806 allows designers to create customized processing layouts using an intuitive drag-and-drop interface. A rich library of processing and logic objects makes it easy to build scalable systems tailored to precise application requirements.
The processor supports Dante™ / AES67 networking with primary and secondary ports for fault tolerance, delivering up to 64 x 64 channels of network audio. In addition, the integrated 256-channel low-latency BLU link digital audio bus enables reliable audio distribution across multiple compatible devices.
With four card slots supporting a range of analog, digital, AEC, and telephone interface cards, the BLU-806 adapts easily to evolving system needs. Dedicated GPIO, RS-232, and Ethernet control provide seamless integration with third-party control systems, making it a comprehensive solution for modern networked audio infrastructures.
| Specification | Details |
|---|---|
| Model | BSSBLU806M-US |
| Product Series | Soundweb London |
| Form Factor | 19" Rack Mount (1RU) |
| Architecture | Open Architecture, Software Configurable |
| Configuration Software | HiQnet™ London Architect |
| I/O Card Slots | 4 Configurable Card Slots |
| Maximum Analog Inputs | Up to 16 (card dependent) |
| Maximum Analog Outputs | Up to 16 (card dependent) |
| Maximum Digital Inputs | Up to 16 (AES/EBU or S/PDIF) |
| Maximum Digital Outputs | Up to 16 (AES/EBU or S/PDIF) |
| AEC Inputs | Up to 16 (card dependent) |
| Telephone Hybrid Support | Up to 4 Connections |
| Network Audio | Dante™ / AES67 |
| Dante Channels | Up to 64 x 64 |
| BLU link Digital Audio Bus | 256 Channels, Low Latency |
| Fault Tolerance | Primary & Secondary Dante Ports |
| Control Ports | Dedicated Ethernet Control Port |
| GPIO | 12 Control Inputs, 6 Logic Outputs |
| RS-232 | Supported |

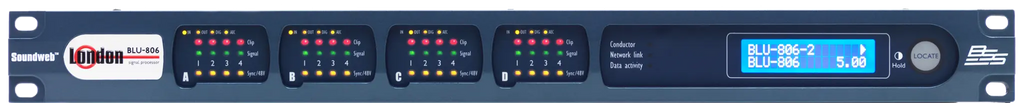

| Front Panel | LCD Display with LED Status Indicators |
| Processing Power | 800 MHz Signal Processing |
| AES67 Compatibility | Yes |
| AVB Support | Not Supported |
| CobraNet | Not Supported |
