Description
The Soundweb London BLU-806DA is a powerful, open-architecture networked signal processor designed for scalable, high-performance audio systems. Featuring Dante / AES67 audio networking and the proprietary 256-channel BLU link digital audio bus, the BLU-806DA delivers low-latency, fault-tolerant performance for mission-critical environments.
Fully configurable via HiQnet™ London Architect, the BLU-806DA provides a flexible drag-and-drop design environment with an extensive library of signal processing and logic objects. Its modular, card-based I/O architecture allows tailored system design with support for analog, digital, AEC, and telephone hybrid cards.

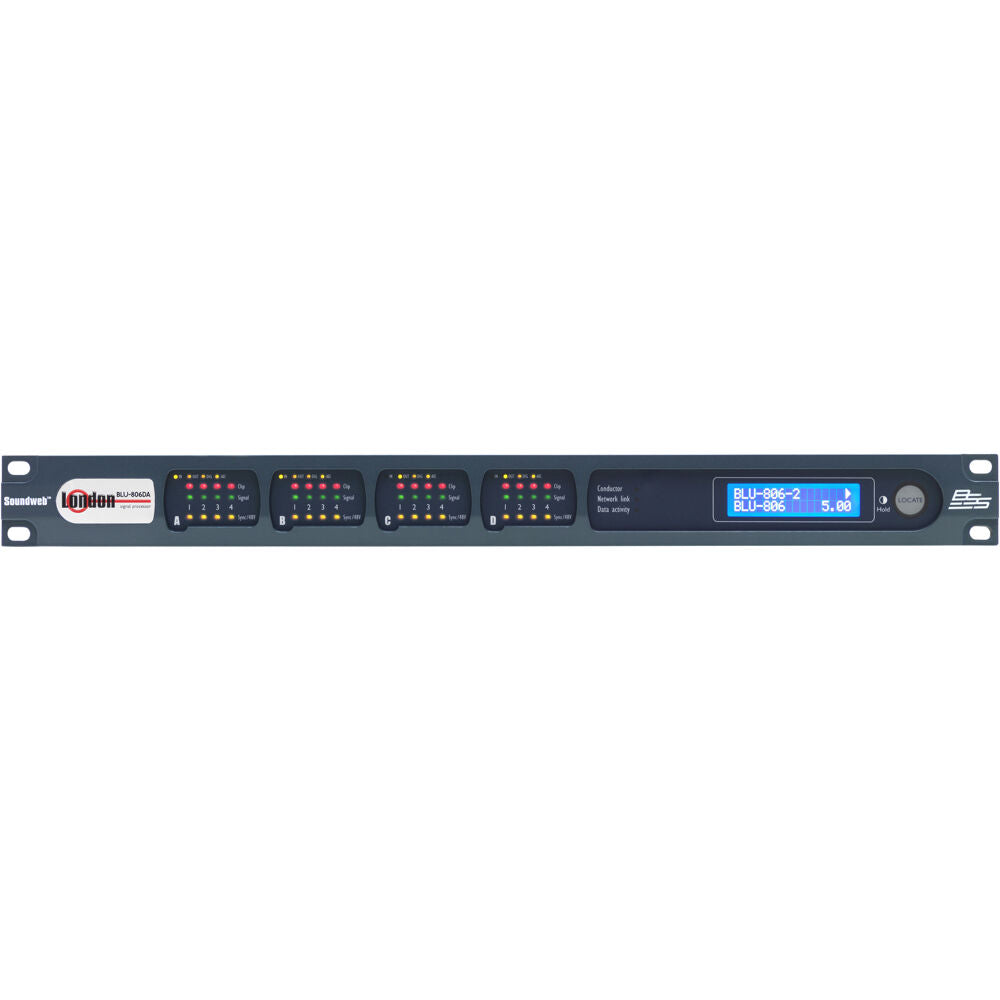

Primary and secondary Dante ports ensure redundancy, while a separate Ethernet port manages control. Support for Dante Domain Manager integration enhances system security and scalability. Clear front-panel LEDs and an informative LCD display provide real-time system status without requiring a PC.
With 12 control inputs, 6 logic outputs, RS-232 connectivity, and EN 54-16 compliance for life safety applications, the BLU-806DA is ideal for large venues, conferencing environments, transportation hubs, hospitality, and enterprise audio systems requiring precision, flexibility, and reliability.
| Specification | Details |
|---|---|
| Chassis | 19" rack mount, 1RU |
| Architecture | Open architecture, software configurable |
| I/O Card Slots | 4 modular card slots |
| Supported I/O Cards | Analog Input, Analog Output, Digital Input, Digital Output, AEC Input, Telephone Hybrid |
| Maximum Analog Inputs | Up to 16 (with software configurable gain up to +48dB and per-channel Phantom Power) |
| Maximum Analog Outputs | Up to 16 |
| Maximum Digital Inputs | Up to 16 (AES/EBU and/or S/PDIF) |
| Maximum Digital Outputs | Up to 16 (AES/EBU and/or S/PDIF) |
| Maximum AEC Inputs | Up to 16 |
| Telephone Connections | Up to 4 |
| Maximum Total Inputs/Outputs | 16 |
| Signal Processing Speed | 800 MHz |
| Digital Audio Bus | 256-channel BLU link, low latency, fault tolerant |
| Network Audio | Dante / AES67 compatible, supports Dante Domain Manager |
| Redundancy | Primary and Secondary Dante ports |
| Control Port | Dedicated Ethernet control port |
| GPIO | 12 Control Inputs, 6 Logic Outputs |
| RS-232 | Yes |
| Front Panel Indicators | LED indicators for Phantom Power, Sync, Signal Present, Clip |
| Front Panel Display | LCD showing device name, firmware, IP address, time, subnet mask |
| Configuration Software | HiQnet™ London Architect |
| Third-Party Integration | Soundweb London Interface Kit included |
| Locate Function | Bi-directional locate from front panel and software |
| AES67 Compatible | Yes |
| EN 54-16 Compliant | Yes |
| Cobranet | Not supported |
| AVB | Not supported |
