Description
The BSS Soundweb London BLU-160 (BSSBLU160MXV40) is a fully configurable networked signal processor designed for high-performance audio systems requiring flexible I/O, powerful DSP, and a fault-tolerant digital audio backbone. Built on an open architecture platform and configurable through HiQnet™ London Architect, the BLU-160 provides a scalable and customizable processing environment suitable for installed sound applications across corporate, hospitality, performance venues, education, and large-scale commercial systems.
Featuring a 256-channel, low-latency, fault-tolerant digital audio bus over standard Category 5e cabling, the BLU-160 supports up to 100m between devices (expandable via fiber converters). Four configurable card slots allow integration of analog or digital inputs and outputs in banks of four, supporting AES/EBU and S/PDIF formats alongside high-quality analog audio with selectable phantom power.
The processor includes extensive GPIO integration with 12 control inputs and 6 logic outputs, making it ideal for third-party control system integration. Clear front-panel LED indicators and an informative LCD display provide real-time device and signal status without requiring a connected PC.
The BLU-160 serves as a powerful building block within the Soundweb London ecosystem, delivering reliable, flexible, and scalable DSP-based system design.
| Specification Category | Details |
|---|---|
| Product Model | BSS Soundweb London BLU-160 |
| SKU | BSSBLU160MXV40 |
| Device Type | Networked Signal Processor with DSP |
| Architecture | Open architecture, configurable via HiQnet™ London Architect |
| Digital Audio Bus | 256 channels, low latency, fault tolerant |
| Bus Cabling | Category 5e (100m between devices) |
| Max Nodes | Up to 60 devices |
| I/O Card Slots | 4 configurable card slots |
| Analog Inputs | Up to 16 balanced inputs (via cards) |
| Analog Output | Up to 16 balanced outputs (via cards) |
| Digital Inputs | AES/EBU or S/PDIF (up to 16 via cards) |
| Digital Outputs | AES/EBU or S/PDIF (up to 16 via cards) |
| Mic Gain | 0 to +48dB in +6dB steps |
| Phantom Power | 48V selectable per input channel |
| Sample Rates | 48kHz or 96kHz |
| Control Ports | 12 control inputs, 6 logic outputs |
| Network Connection | RJ45 Ethernet |

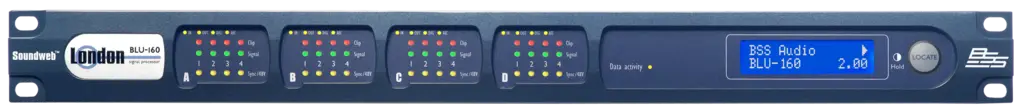

| Front Panel Indicators | Signal, Clip, Sync/48V, Data Activity, LCD Display |
| Power Requirement | 100–240V AC, 50/60Hz |
| Power Consumption | <35VA |
| Rack Size | 1U |
| Dimensions (H x W x D) | 1.75" x 19" x 12.5" |
| Weight | 9 lbs (4.1 kg) |
| Operating Temperature | 0° to 45°C |
