Description

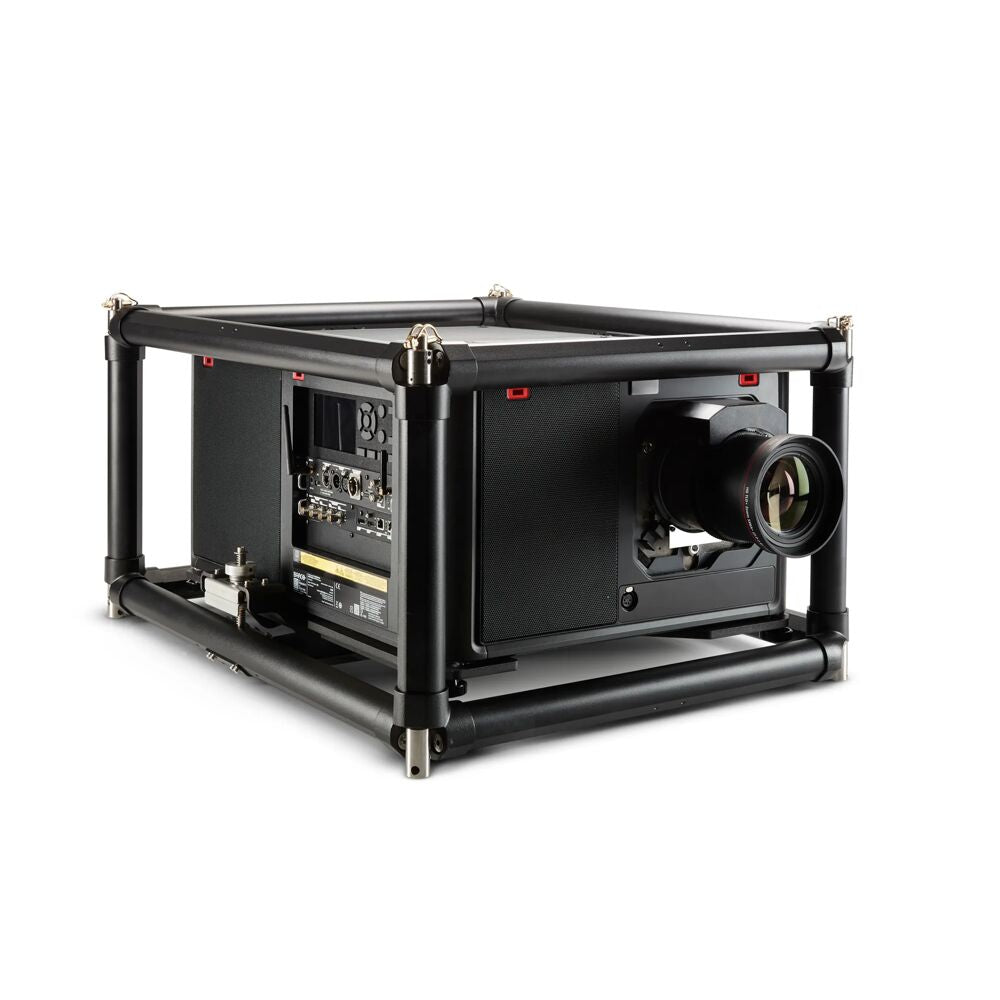

The Barco UDM-W30 is a high-performance large venue laser projector engineered to deliver exceptional brightness, reliability, and flexibility for demanding professional environments. Producing up to 30,000 lumens with WUXGA resolution, this 3-chip DLP projector ensures vivid, high-impact visuals with outstanding color accuracy and uniformity.
Designed as one of the most compact and lightweight projectors in its class, the UDM-W30 simplifies installation while reducing operational costs without compromising performance. Powered by Barco’s Pulse electronics platform, it delivers ultra-fast processing with minimal latency, enabling razor-sharp images and seamless playback even in complex projection setups.
Its modular architecture and extensive lens compatibility provide unmatched flexibility for staging, rental, and fixed installations. With advanced features such as Constant Light Output, wide lens shift, and remote fleet management capabilities, the UDM-W30 is built for continuous operation in the most demanding environments.
Ideal for live events, theaters, auditoriums, and large-scale venues, this configuration (NO COMM + Frame + Flight Case) is tailored for rugged deployment and transport-ready setups.
| Specification | Details |
|---|---|
| Projector Type | 3-Chip DLP Large Venue Laser Projector |
| Resolution | WUXGA (1920 x 1200) |
| Brightness | Up to 30,000 lumens |
| Contrast Ratio | 2200:1 (Full Field), up to 20,000:1 (DynaBlack) |
| Light Source | Laser Phosphor with Red Compensator |
| Light Source Lifetime | Up to 20,000 hours |
| Aspect Ratio | 16:10 |
| Brightness Uniformity | 93% |
| Processing Technology | Barco Pulse Electronics (Single Step Processing) |
| Input Resolution Support | Up to 4K UHD |
| Refresh Rate | Up to 120Hz (4K), 240Hz (WQXGA) |
| Lens Compatibility | Wide range of TLD+ lenses |
| Lens Shift | Vertical: -100% to +130%, Horizontal: ±40% |
| Image Features | Warp & Blend, Keystone Correction, Edge Blending |
| Connectivity | HDBaseT, HDMI 2.0, DisplayPort 1.2, SDI/BarcoLink |
| Control Interfaces | RS232, IR, XLR wired remote |
| Network | RJ-45 Ethernet |
| Orientation | Full 360° operation |
| Cooling System | Advanced laser cooling system |
| Constant Light Output | Supported |
| Noise Level | ~49 dB(A) |
| Power Consumption | Up to 2300W (max) |
| Operating Temperature | 0°C to 40°C |
| Dimensions (W x D x H) | 725 x 540 x 339 mm |
| Weight | 48 kg |
| Included Accessories | Power cord, rugged remote control |
| Configuration | No Communication Module, Frame, Flight Case Included |
