Description

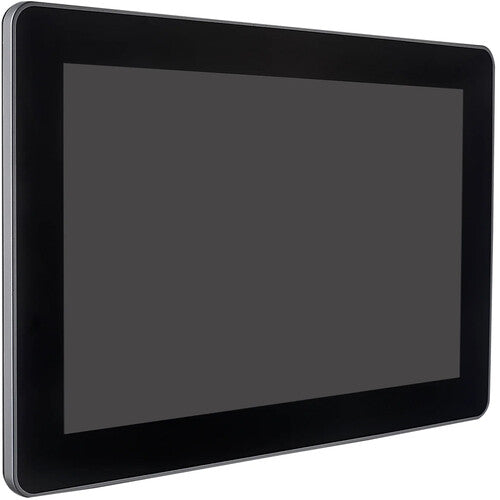

The Mimo Monitors MBS-32080C-OF is a 32-inch Full HD open frame touchscreen display engineered for seamless digital signage deployment in commercial environments. Featuring integrated BrightSignOS, this display delivers a complete out-of-the-box signage solution with powerful media playback, network connectivity, and enterprise-grade reliability.
Built with 10-point capacitive touch technology, this display enables smooth and responsive user interaction, making it ideal for kiosks, retail point-of-sale systems, corporate environments, and interactive information displays. Its open frame design allows for easy integration into custom enclosures, walls, or kiosks.
With support for H.265 and H.264 decoding, HTML5 rendering, and compatibility with BrightSign’s CMS ecosystem, users can efficiently deploy and manage content via USB, microSD, or network. Additional GPIO connectivity enables integration with peripherals such as sensors and card readers, expanding its functionality across a wide range of applications.
Designed for continuous commercial use, this display combines reliable performance, flexible installation, and advanced signage capabilities into a single streamlined solution.
| Specification | Details |
|---|---|
| Display Size | 32 inches |
| Resolution | 1920 x 1080 (Full HD) |
| Panel Type | IPS LCD |
| Brightness | 300 nits |
| Contrast Ratio | 1200:1 |
| Refresh Rate | 60 Hz |
| Viewing Angles | 178° horizontal / 178° vertical |
| Color Support | 1.07 billion colors (10-bit) |
| Touch Technology | 10-point capacitive multi-touch |
| Screen Finish | Anti-glare |
| Orientation | Landscape and portrait |
| Operating System | BrightSignOS (integrated) |
| Media Playback | H.265 and H.264 decoding, HTML5 support |
| Storage Options | MicroSD card, USB, network delivery |
| A/V Inputs | 1x HDMI, 1x VGA, 1x 3.5 mm audio |
| USB Ports | 1x USB-A |
| Network Connectivity | 1x RJ45 Ethernet |
| GPIO | 6x GPIO ports for external integrations |
| Built-In Speakers | Not included |
| Power Consumption | 40W (typical operation) |
| Input Power | 100 to 240 VAC, 50/60 Hz |
| Mounting | VESA 200 x 200 mm, open frame compatible |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Certifications | CE, FCC, RoHS, TAA compliant |
| Dimensions | 29.8 x 17.7 x 1.9 inches |
| Included Accessories | Power adapter |
| Warranty | 1-year limited manufacturer warranty |
