Description

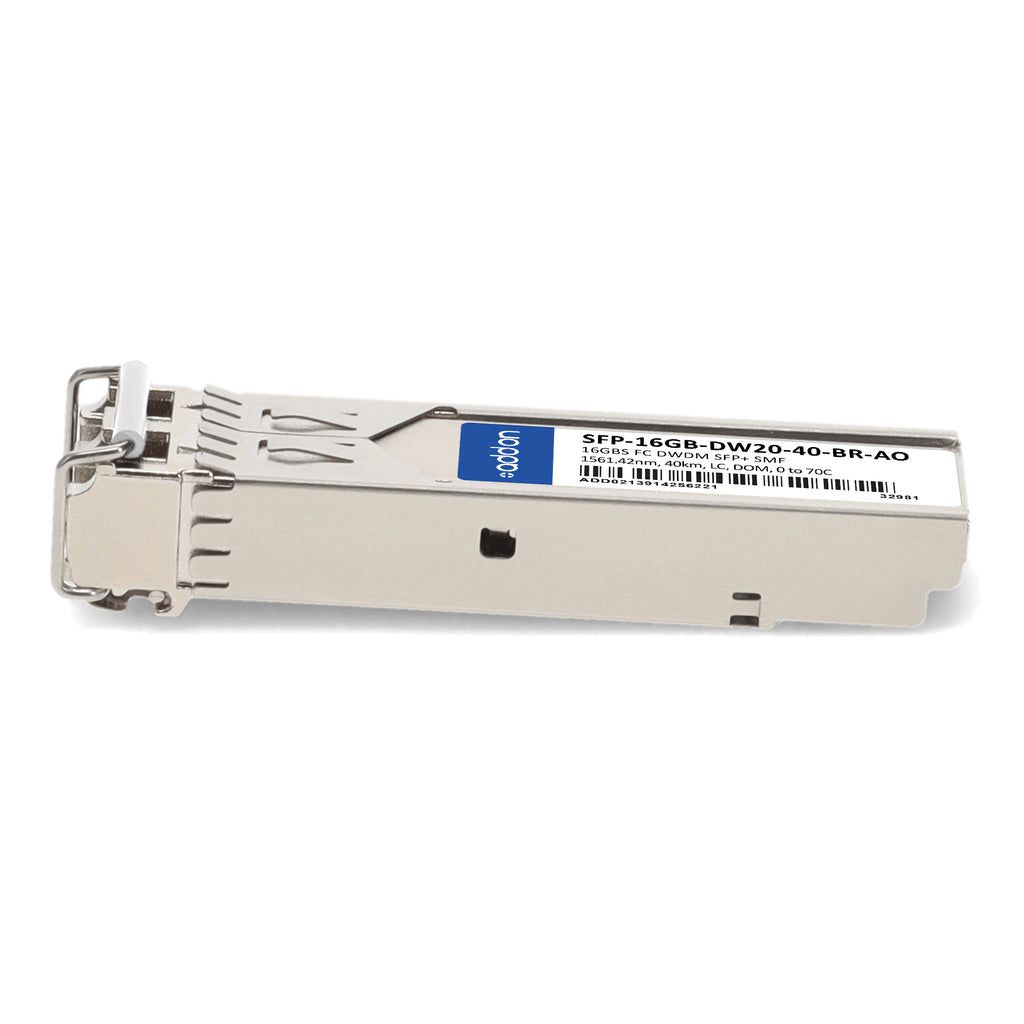

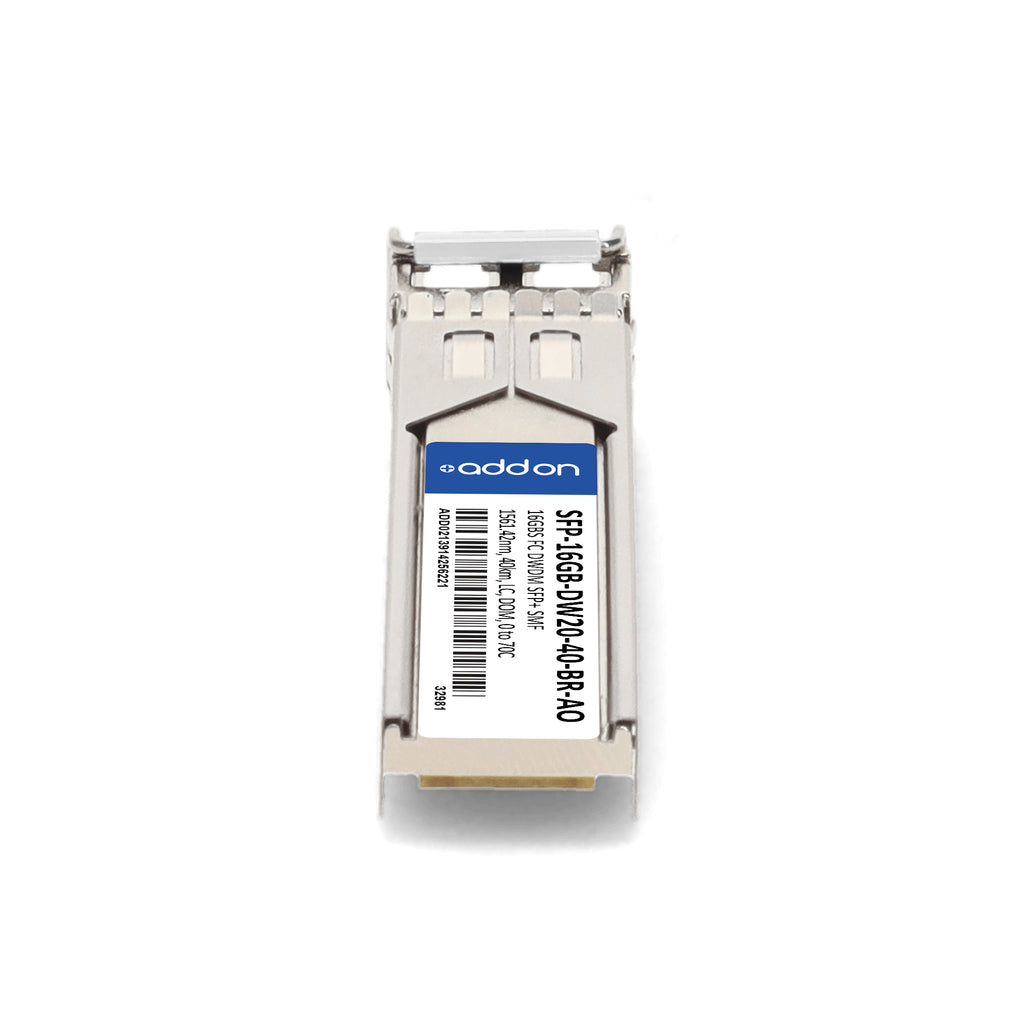

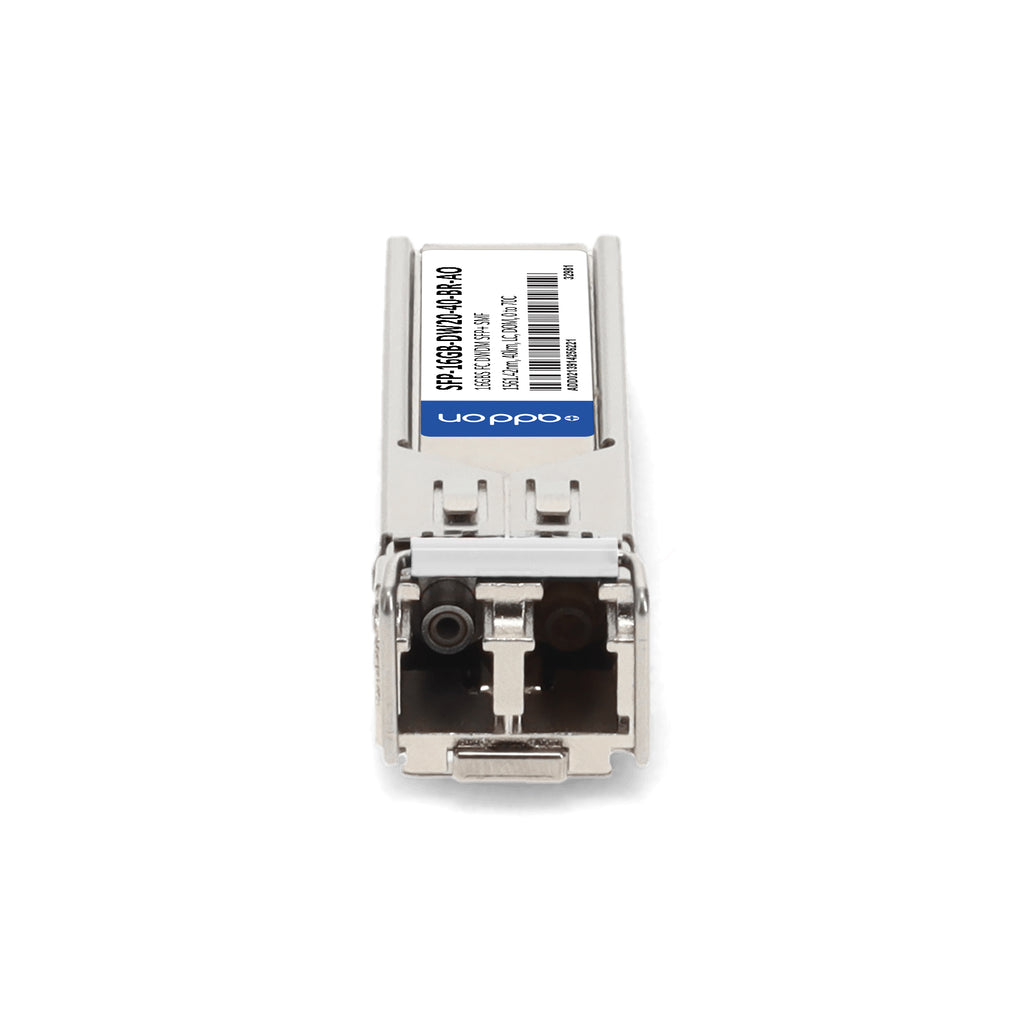

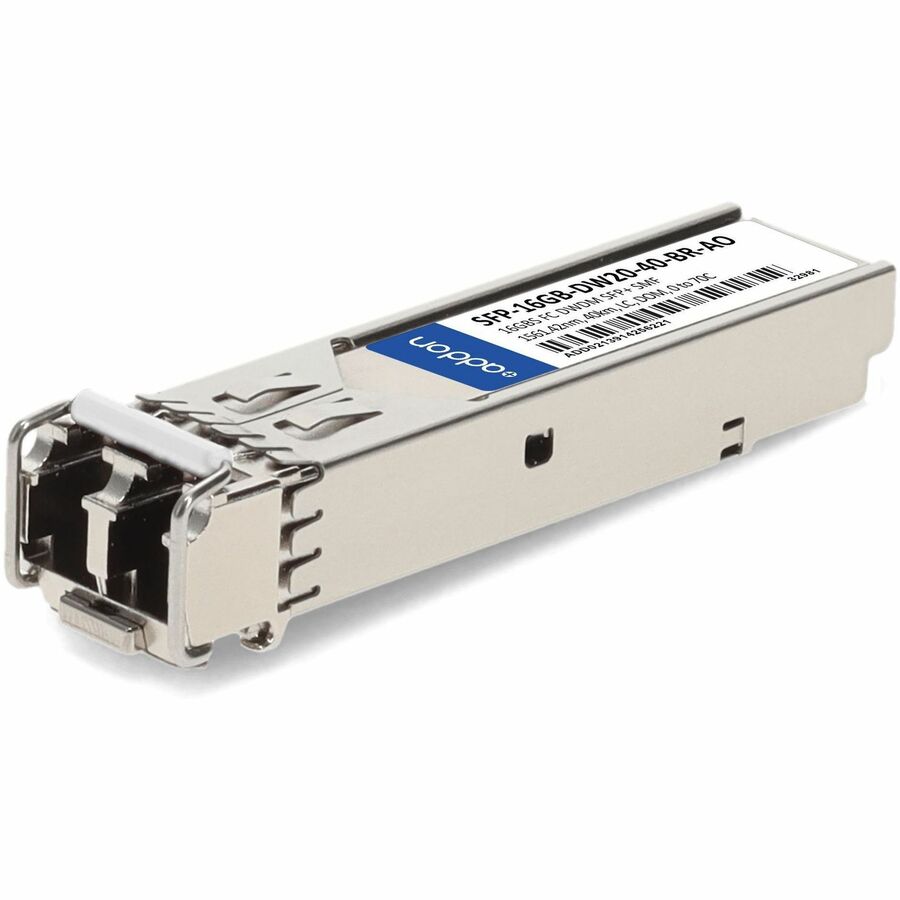

The AddOn SFP-16GB-DW20-40-BR-AO is a Brocade®-compatible SFP+ transceiver designed to deliver high-performance 16GBase-DWDM Fibre Channel connectivity over single-mode fiber (SMF) up to 40 km. Operating at a 1561.42 nm wavelength on ITU-T Channel DW20 with a 100 GHz channel spacing, this hot-swappable module ensures seamless integration into existing Fibre Channel and DWDM network environments.
Engineered for reliability and efficiency, it features a cooled EML transmitter, PIN receiver, and a duplex LC connector. The transceiver supports Digital Optical Monitoring (DOM) for real-time performance diagnostics and meets SFF-8432 and SFF-8472 standards. It is fully compliant with the Trade Agreements Act (TAA), RoHS 2.0, and key EMI/ESD standards, making it ideal for data center, metro, and enterprise applications where long-reach, high-bandwidth Fibre Channel links are critical.
| Specification | Details |
|---|---|
| Brand | AddOn |
| SKU | SFP-16GB-DW20-40-BR-AO |
| Compatibility | Brocade® (Formerly) |
| Form Factor | SFP+ |
| Data Rate | 16GBase DWDM Fibre Channel (4.25 – 14.025 Gbps) |
| Wavelength / Channel | 1561.42 nm (Channel DW20, 100 GHz) |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Reach / Distance | Up to 40 km |
| Transmitter Type | Cooled EML |
| Receiver Type | PIN |
| Digital Optical Monitoring (DOM) | Supported |
| Operating Temperature | 0 °C to 70 °C (Commercial) |
| Power Supply Voltage | 3.135 V – 3.465 V |
| Power Consumption | 550 mA |
| Output Power | -1 dBm to +3 dBm |
| Receiver Sensitivity | ≤ -14 dBm |
| Extinction Ratio | ≥ 8.2 dB |
| Compliance | SFF-8432, SFF-8472, FCC Part 15, EN55022:2010, FDA 21CFR, IEC 60825-1/2, RoHS 2.0 |
| Applications | 8x/10x Fibre Channel, 16x Gigabit Ethernet over DWDM, Access, Metro, and Enterprise Networks |
| Hot-Swappable | Yes |
| TAA Compliant | Yes |
