Description

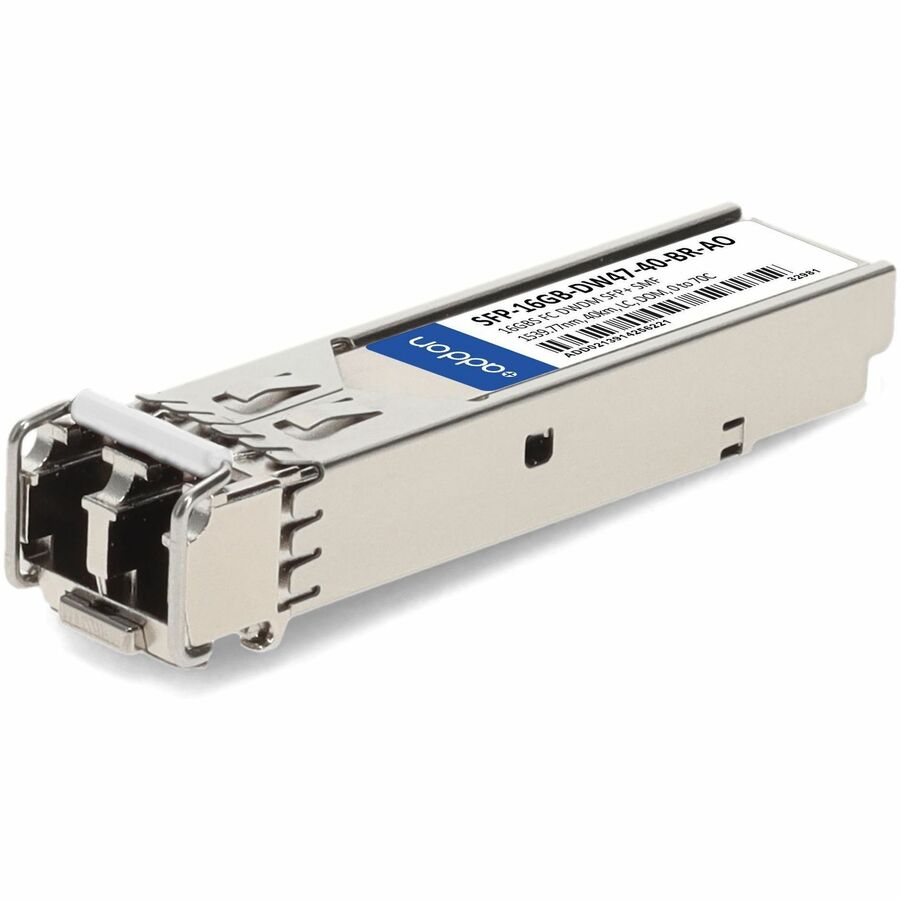

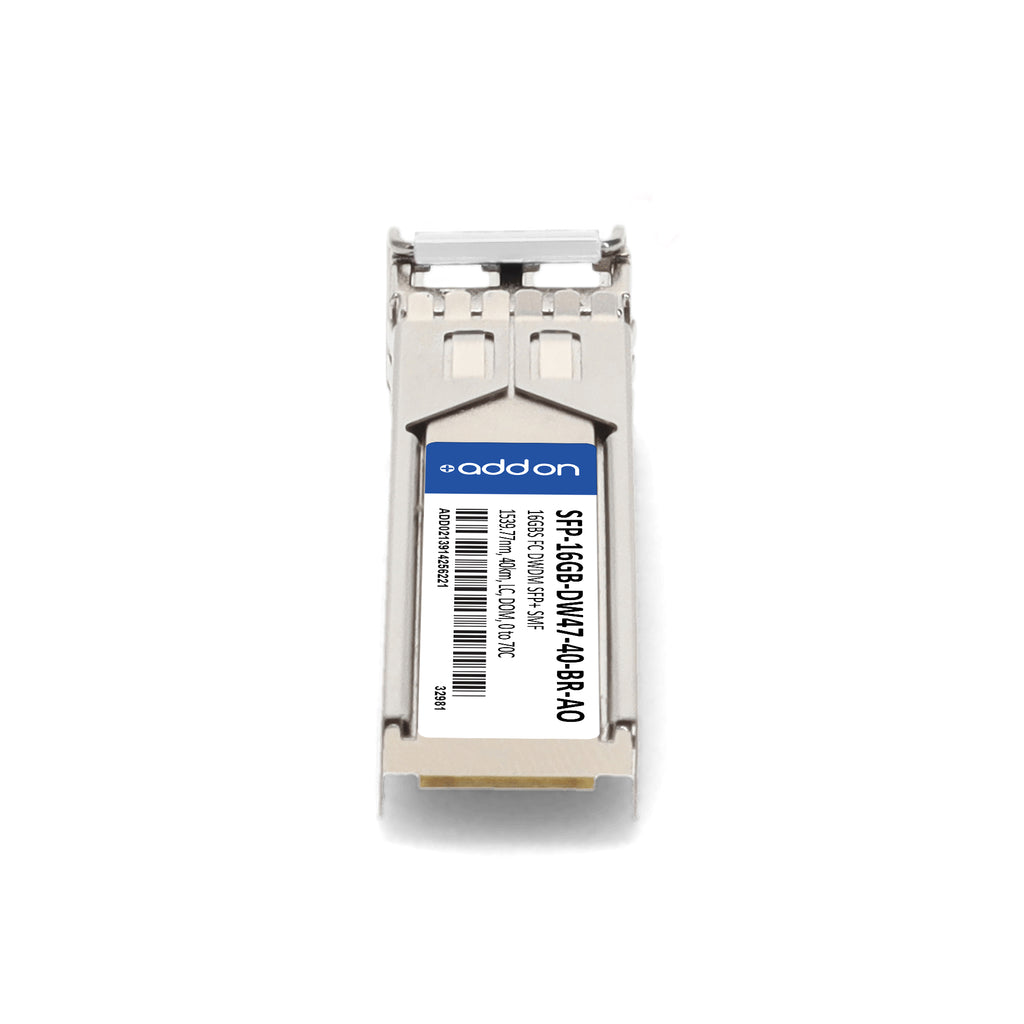

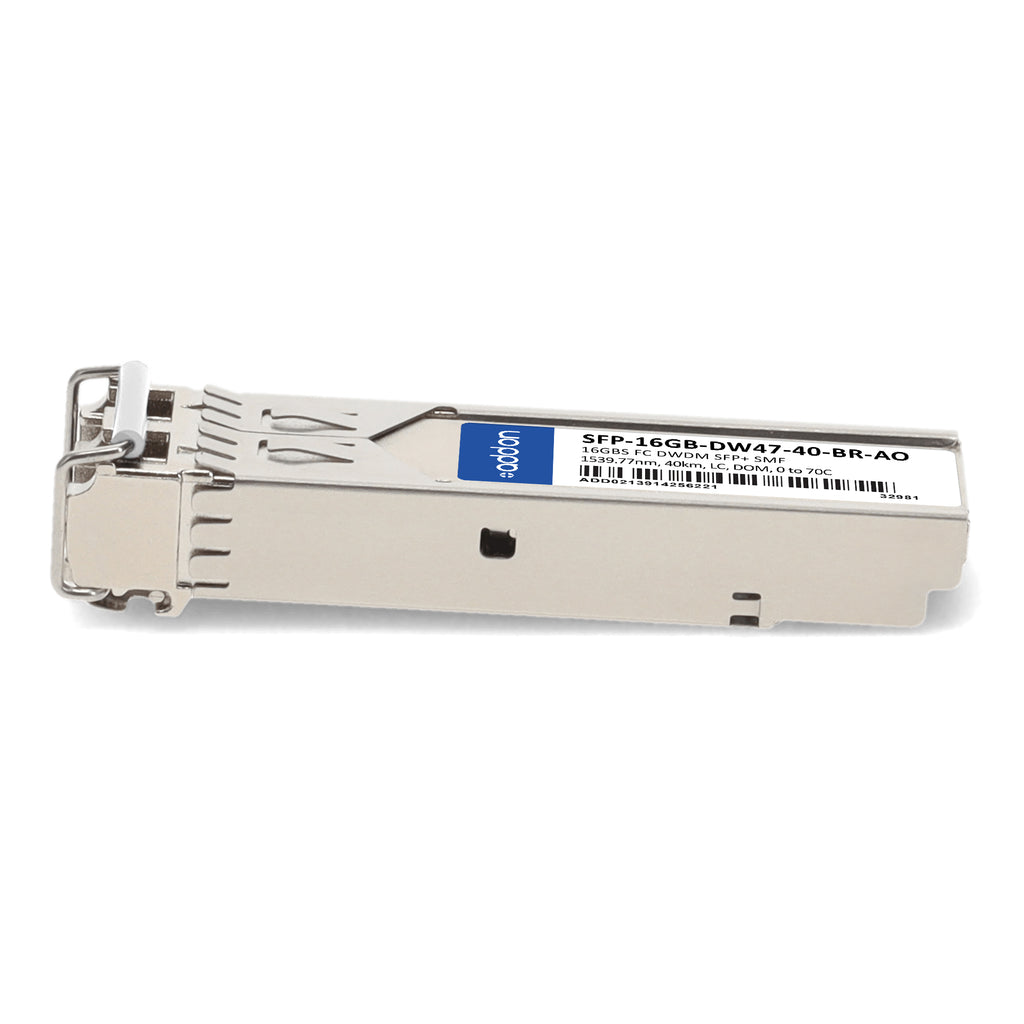

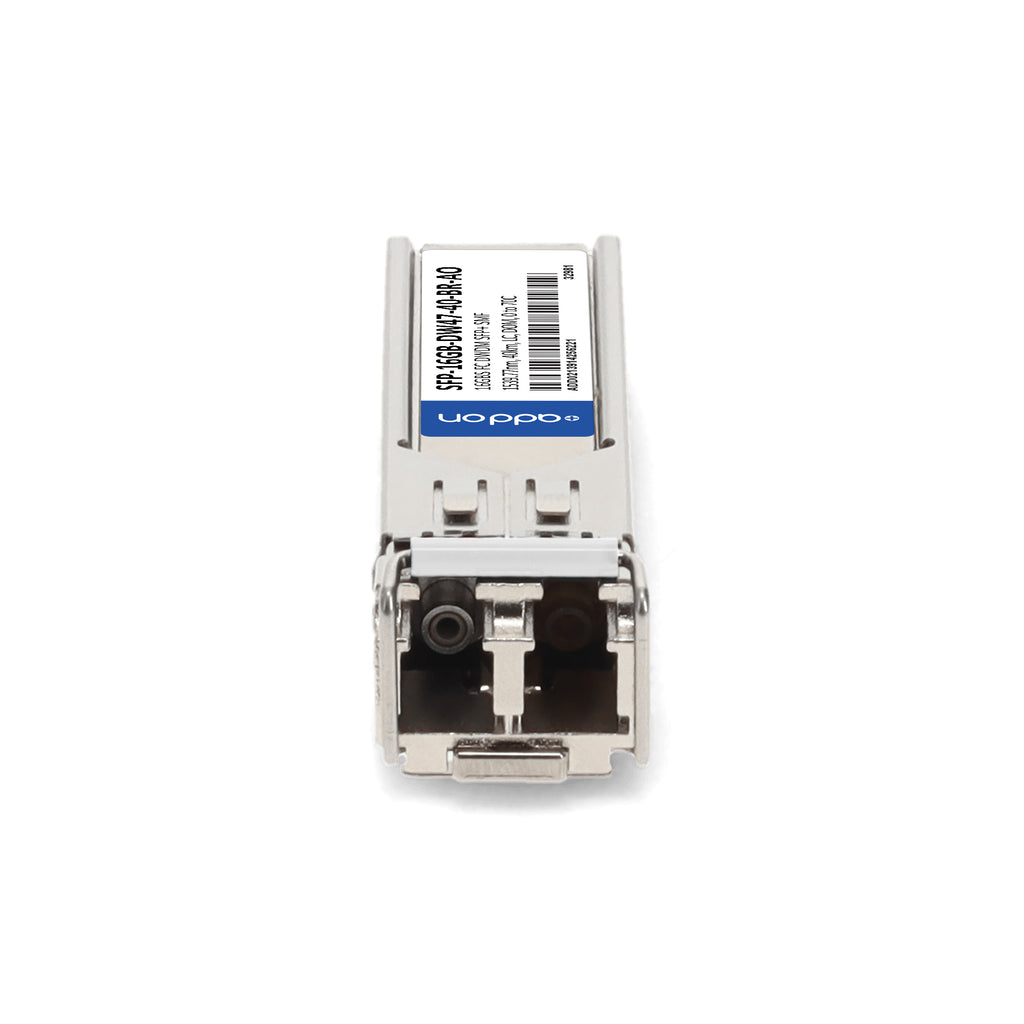

The AddOn SFP-16GB-DW47-40-BR-AO is a Brocade® (formerly) compatible 16GBase-DWDM SFP+ transceiver designed for high-performance Fibre Channel networking across long-distance links. Operating on a 1539.77nm wavelength (ITU Channel DW47) over single-mode fiber (SMF), it supports distances up to 40km and delivers data rates up to 14.025Gbps. This hot-pluggable transceiver features a cooled EML transmitter and PIN receiver for superior signal integrity, along with Digital Optical Monitoring (DOM) for real-time performance diagnostics. With full SFF-8432 and SFF-8472 compliance, robust ESD protection, and RoHS 2.0 adherence, it’s engineered for reliability and compatibility in enterprise, metro, and access networks. Each unit is uniquely serialized, application-tested, and backed by a limited lifetime warranty to ensure seamless integration and dependable performance.
| Specification | Details |
|---|---|
| SKU | SFP-16GB-DW47-40-BR-AO |
| Brand | AddOn |
| Compatibility | Brocade® (Formerly) |
| Form Factor | SFP+ |
| Data Rate | 4.25 to 14.025 Gbps |
| Application | 8x/10x Fibre Channel, 16G FC over DWDM |
| Wavelength | 1539.77 nm (Channel DW47, 100GHz ITU Grid) |
| Transmission Distance | Up to 40 km |
| Fiber Type | Single-mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Transmitter Type | Cooled EML |
| Receiver Type | PIN |
| Average Output Power | -1 to +3 dBm |
| Receiver Sensitivity | ≤ -14 dBm |
| Receiver Overload | 0.5 dBm |
| Extinction Ratio | ≥ 8.2 dB |
| Spectral Width (-20 dB) | ≤ 1 nm |
| Side-Mode Suppression Ratio (SMSR) | ≥ 30 dB |
| Operating Temperature | 0°C to +70°C (Commercial) |
| Storage Temperature | -40°C to +85°C |
| Power Supply Voltage | 3.135 – 3.465 V |
| Power Consumption | ≤ 550 mA |
| Digital Diagnostics (DOM) | Supported |
| Hot Pluggable | Yes |
| Regulatory Compliance | SFF-8432, SFF-8472, RoHS 2.0, MIL-STD-883E, IEC 61000-4-3, FCC Part 15B, EN55022:2010, FDA 21CFR, EN60950-1, IEC 60825-1/2 |
| TAA Compliant | Yes |
| Warranty | Limited Lifetime Warranty |
