Description

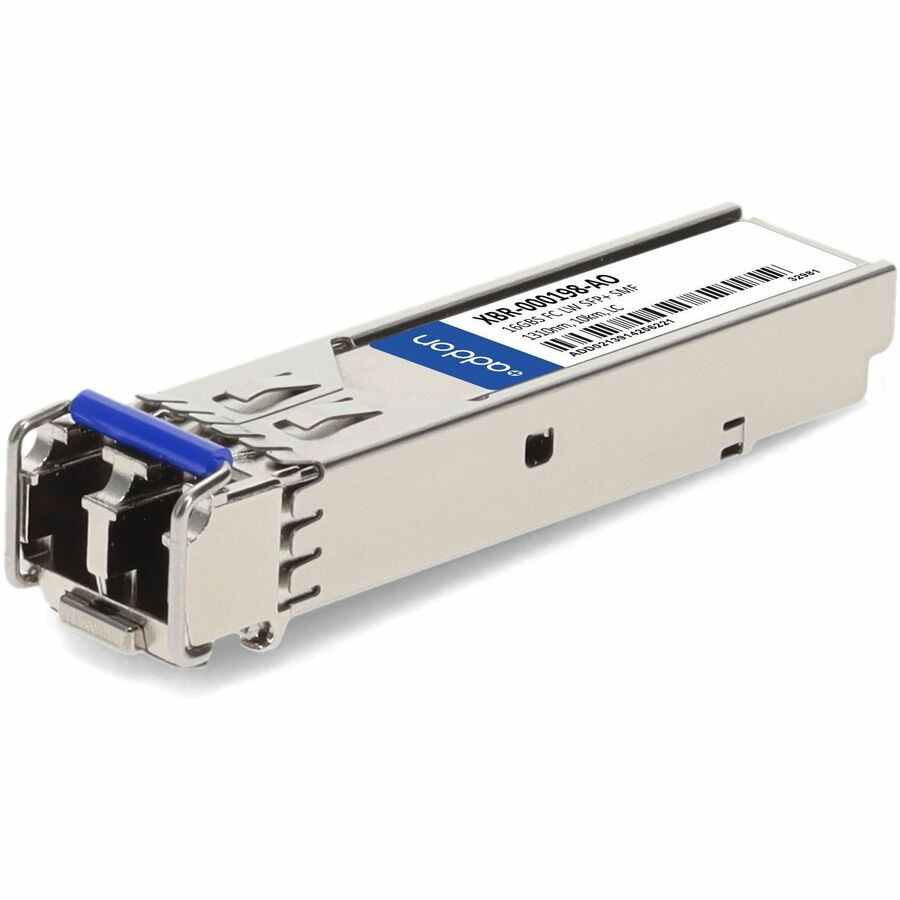

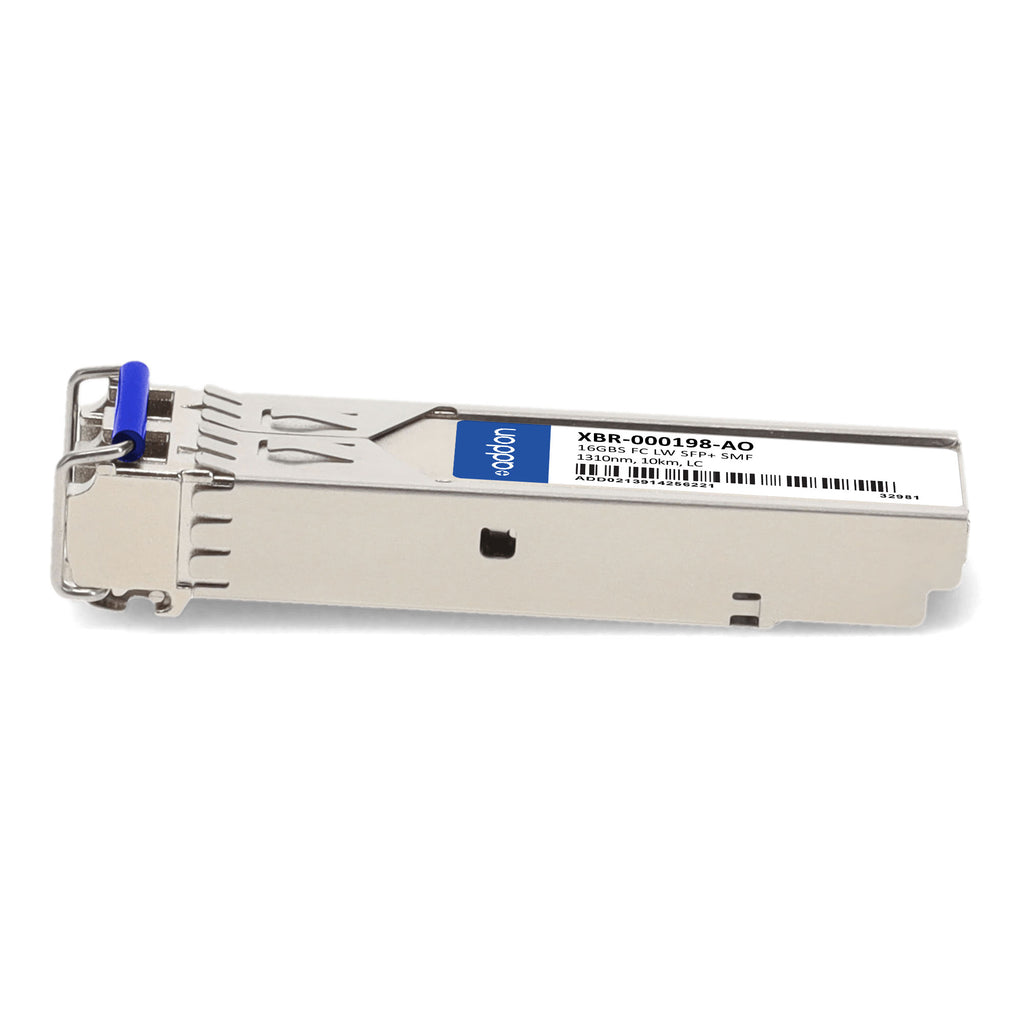

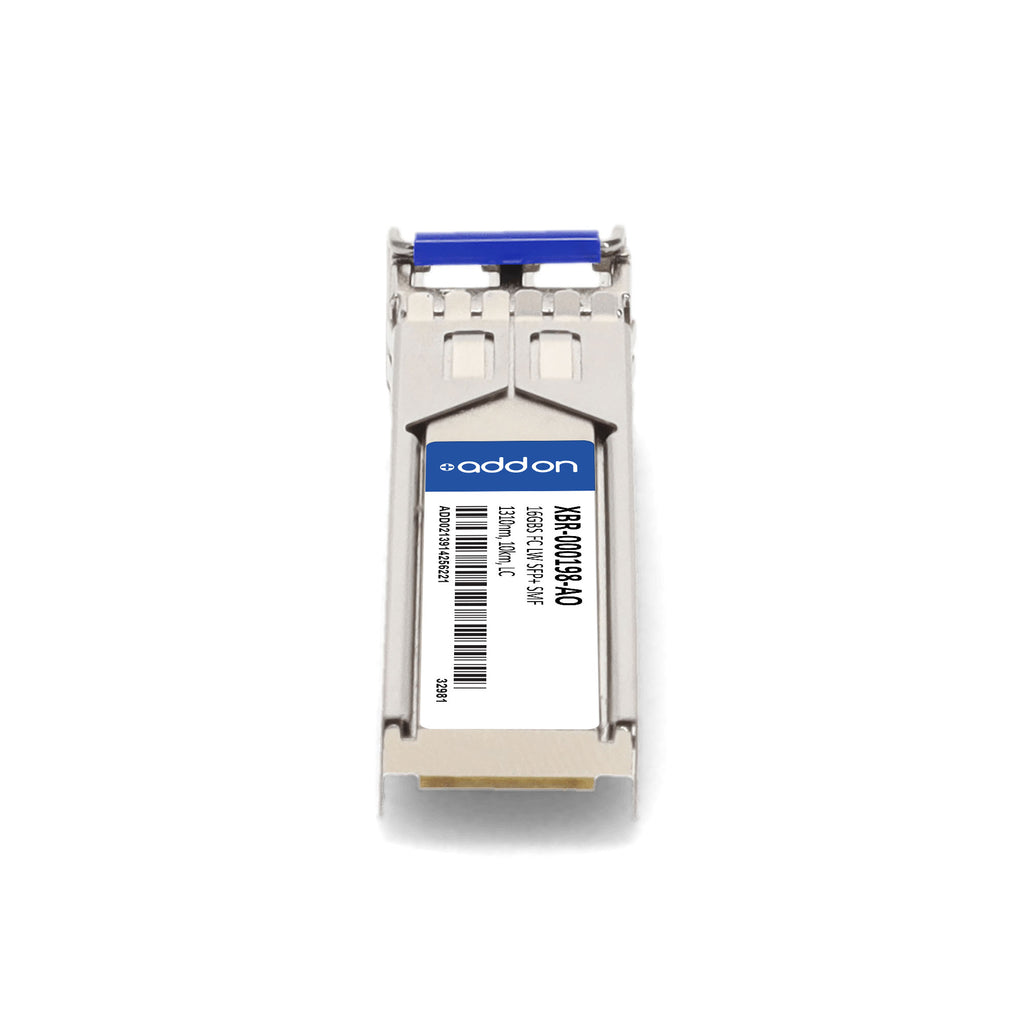

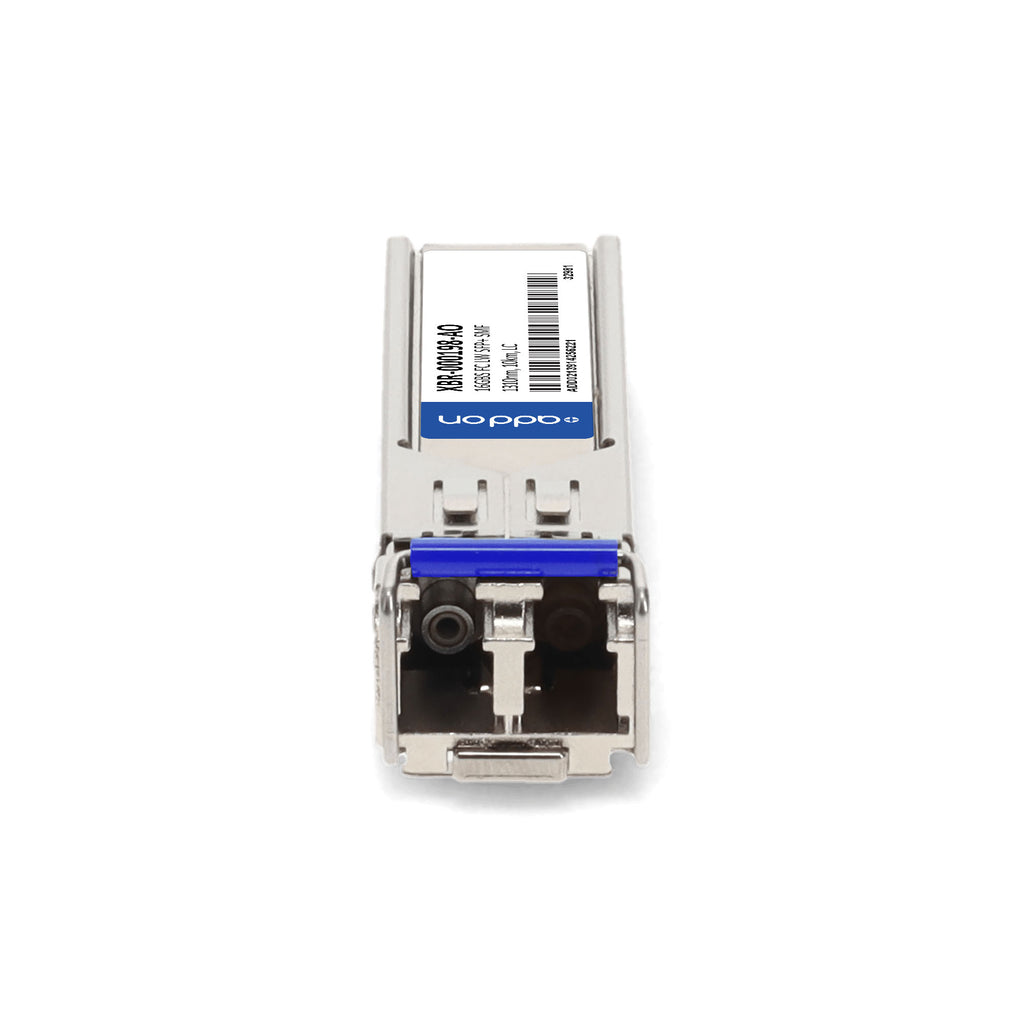

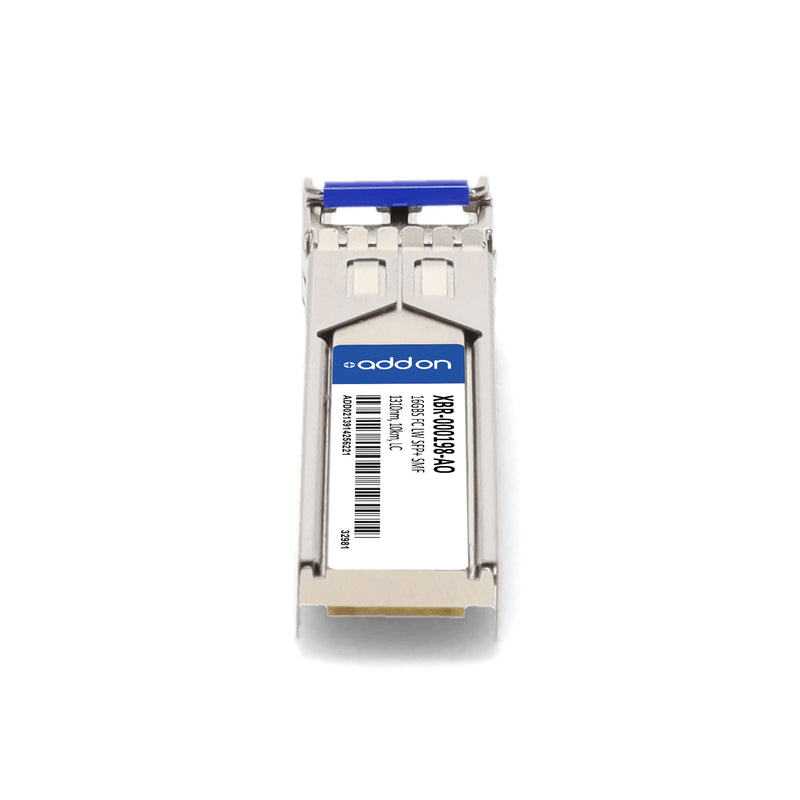

The AddOn Brocade® XBR-000198-AO is a TAA-compliant, high-performance 16GBase-LW Fibre Channel SFP+ transceiver designed for seamless integration into Brocade® networking environments. Delivering reliable throughput up to 10 km over single-mode fiber (SMF) with a 1310 nm wavelength and duplex LC connector, this hot-swappable optical module is engineered to meet or exceed OEM specifications.
Each unit is 100% compatible with Brocade® hardware and is MSA-compliant, ensuring smooth deployment in enterprise and data-center networks. It is SFF-8432 and SFF-8472 compliant, supports hot-plugging, and includes advanced ESD protection with a robust metal housing for low EMI performance.
Perfect for Fibre Channel access and enterprise storage networks, this transceiver has been programmed, serialized, and tested to guarantee identical initialization and performance to the OEM original. Supported by AddOn’s limited lifetime warranty, it is the ideal cost-effective choice for expanding high-speed SAN connectivity.
| Specification | Details |
|---|---|
| Brand | AddOn |
| SKU | XBR-000198-AO |
| Compatibility | Brocade® XBR-000198 |
| Form Factor | SFP+ |
| Data Rate | 16GBase-LW Fibre Channel |
| Wavelength | 1310 nm |
| Fiber Type | Single-Mode Fiber (SMF) |
| Maximum Distance | 10 km |
| Connector Type | Duplex LC |
| Compliance Standards | SFF-8432, SFF-8472, MSA Compliant |
| Hot Pluggable | Yes |
| Operating Temperature | 0 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Power Supply Voltage | 3.13 V – 3.47 V |
| Power Consumption | ≤ 0.8 W |
| Output Optical Power (14.025 Gbps) | -5 dBm to +2 dBm |
| Receiver Sensitivity | ≤ 0.063 mW (14.025 Gbps) |
| Optical Center Wavelength Range | 1295 nm – 1325 nm |
| Maximum Received Power | +2 dBm |
| Link Budget | Up to 10 km on 9/125 µm G.652 SMF |
| ESD Protection | Yes |
| EMI Shielding | Metal Housing, Low EMI |
| Laser Safety | Class 1 per FDA/CDRH & IEC 60825 |
| RoHS Compliant | Yes |
| TAA Compliant | Yes |
| Warranty | Limited Lifetime Warranty |
| Applications | Fibre Channel, Access, Enterprise SAN |
