Description

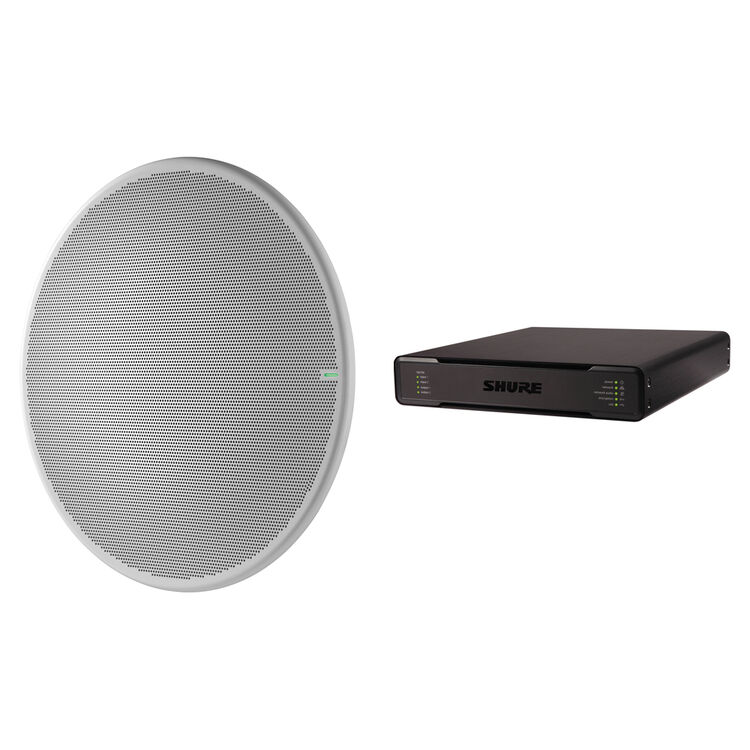

The Shure Microflex Advance MXA920-R and P300 IntelliMix Processor bundle delivers a complete, enterprise-grade audio conferencing solution designed for large meeting spaces and high-performance collaboration environments. Engineered for seamless integration and exceptional clarity, this system combines advanced ceiling array microphone technology with powerful DSP processing to ensure every participant is heard with precision.

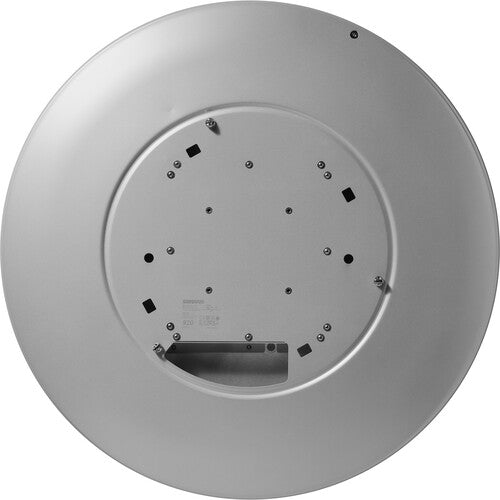

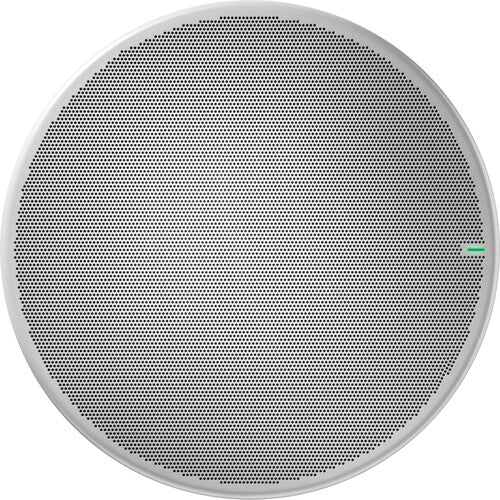

The MXA920-R ceiling microphone features next-generation array architecture with Automatic Coverage and Steerable Coverage technologies, enabling effortless deployment while capturing natural, intelligible speech across expansive areas. With up to eight configurable pickup lobes and individual outputs, it provides precise audio isolation and flexibility for complex room layouts.

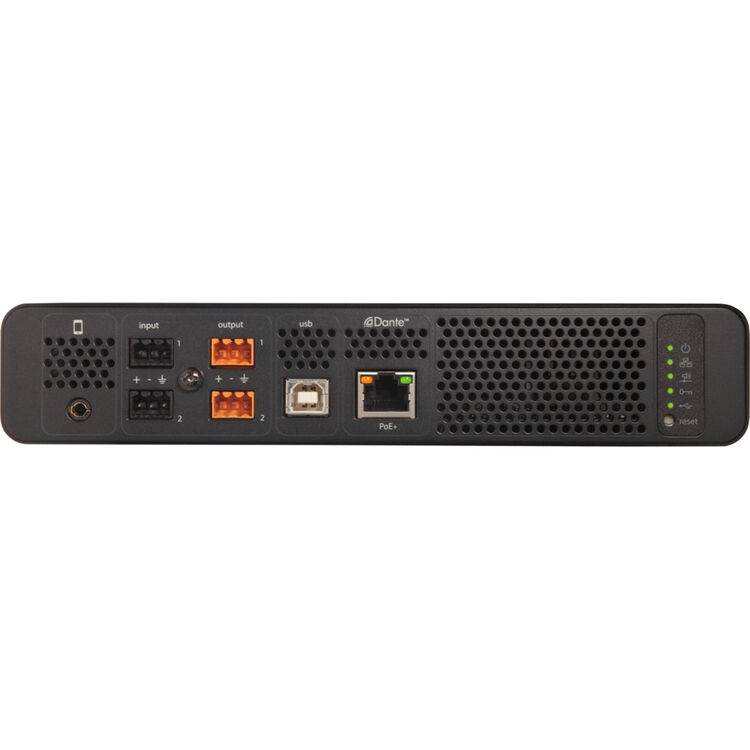

Paired with the P300 IntelliMix Audio Conferencing Processor, this bundle enhances audio performance through advanced DSP capabilities including acoustic echo cancellation, noise reduction, automatic mixing, and gain control. Multiple connectivity options such as Dante, analog, USB, and mobile integration allow seamless compatibility with conferencing platforms, computers, and external audio systems.
Designed for reliability, scalability, and secure communications, this Shure bundle is ideal for corporate boardrooms, training centers, and large conferencing spaces requiring consistent, high-quality audio performance.
| Specification | Details |
|---|---|
| System Type | Ceiling Microphone + Audio Conferencing Processor Bundle |
| Microphone Model | Shure MXA920-R (Aluminum) |
| Processor Model | Shure P300 IntelliMix |
| Application | Large Conference Rooms, AV Conferencing, Voice Lift |
| Coverage Technology | Automatic Coverage and Steerable Coverage |
| Pickup Lobes | 8 Configurable Lobes |
| Microphone Elements | 113 MEMS Microphones |
| Frequency Response | 125 Hz to 20 kHz |
| Maximum SPL | 95.7 dB SPL |
| Sensitivity | -1.74 dBFS/Pa |
| Dynamic Range | 77.5 dB |
| Signal-to-Noise Ratio | 75.76 dB (A-Weighted) |
| Equivalent Noise Level | 18.24 dB SPL (A-Weighted) |
| DSP Processing | AEC, Noise Reduction, AGC, Compressor, Delay, EQ |
| AEC Tail Length | Up to 250 ms |
| Latency (Direct Output) | 15.9 ms |
| Latency (Automix Output) | 26.6 ms |
| Channel Count (Auto Coverage On) | 2 Channels |
| Channel Count (Auto Coverage Off) | 10 Channels |
| Digital Audio | 24-Bit / 48 kHz |
| Network Audio | Dante / AES67 |
| Audio Inputs/Outputs (Processor) | Dante (10x8), Analog Block, 3.5mm, USB |
| Connectivity | RJ45, USB Type-B, 3.5mm |
| Power Supply | PoE / PoE+ |
| Power Consumption | 10.1 W (Microphone) |
| Mounting | Ceiling Mount (Multiple Options) |
| Color Finish | Aluminum Gray |
| Environmental Protection | Dust-Resistant (IP5X) |
| Operating Temperature | 20 to 104°F (-6 to 40°C) |
| Storage Temperature | -20 to 165°F (-28 to 73°C) |
| Dimensions | 25 x 2.4 inches |
| Weight | 12.7 lb |
| Certifications | CE, FCC Class B, CAN ICES-003 |
| Platform Compatibility | Microsoft Teams, Zoom, Soft Codecs |
| Security | AES-256 Audio Encryption |
