Description

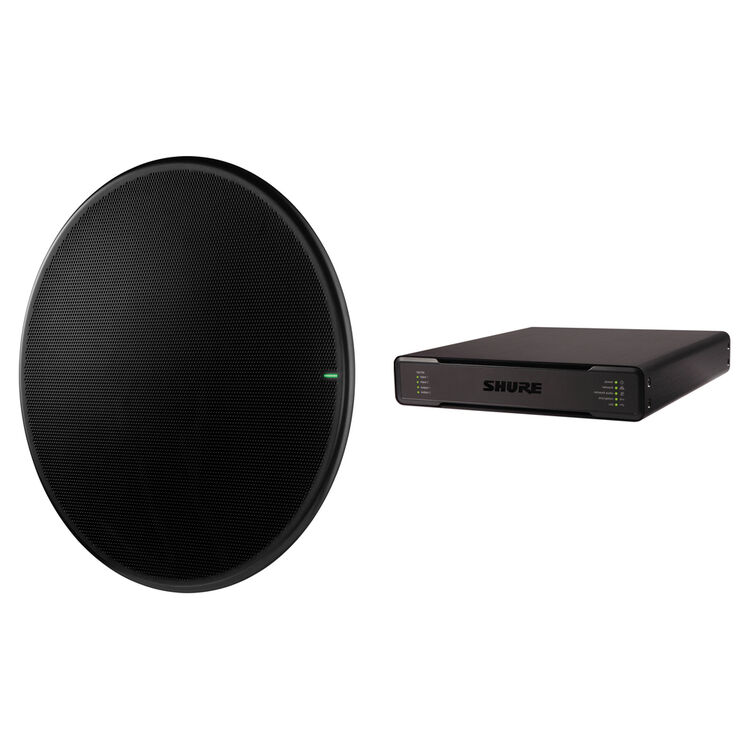

The Shure MXA920-R and P300 IntelliMix Processor bundle delivers a complete, enterprise-grade audio conferencing solution designed for large meeting rooms and high-performance collaboration spaces. Combining Shure’s next-generation ceiling array microphone with a powerful DSP processor, this system ensures clear, natural speech capture and seamless integration across modern AV environments.

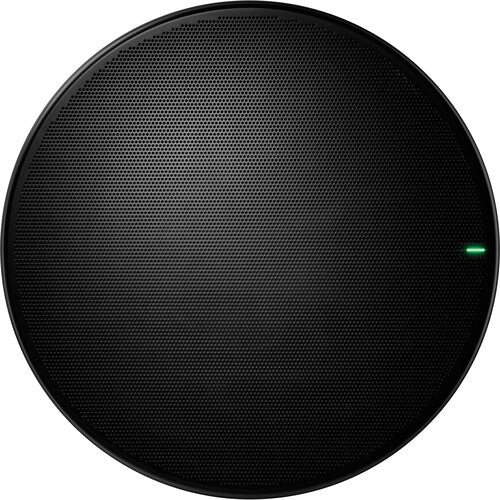

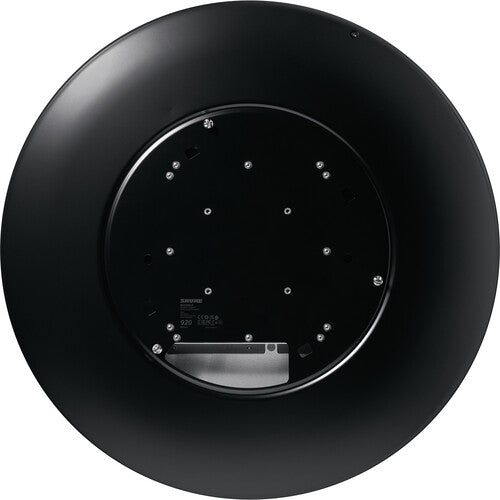

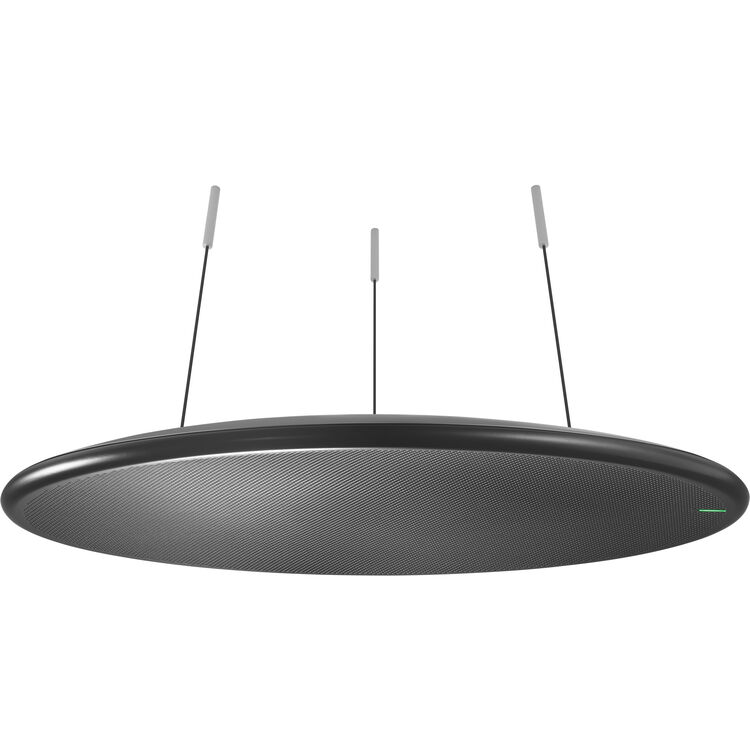

The MXA920-R features Automatic Coverage™ technology, enabling fast deployment with no complex setup while still offering precise control through steerable coverage when needed. With 8 configurable pickup lobes and advanced MEMS array architecture, it captures voices accurately across large spaces while minimizing unwanted noise.

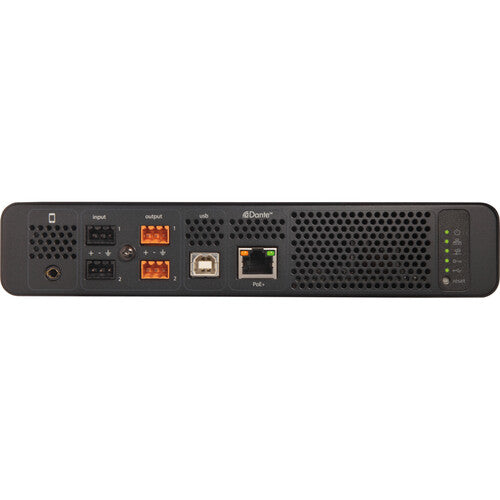

Paired with the P300 IntelliMix Processor, the system provides robust digital signal processing including acoustic echo cancellation, noise reduction, automatic mixing, and gain control. Flexible connectivity options including Dante, analog, USB, and mobile inputs allow effortless integration with computers, video conferencing platforms, and external audio systems.
Built for reliability, scalability, and secure communication, this bundle is ideal for enterprise conferencing, boardrooms, training spaces, and mission-critical collaboration environments.
| Specification | Details |
|---|---|
| Bundle Components | 1 x MXA920-R Ceiling Array Microphone, 1 x P300 IntelliMix Processor |
| Microphone Type | Ceiling Array (Round, Hanging Form Factor) |
| Coverage Technology | Automatic Coverage™ and Steerable Coverage |
| Pickup Lobes | 8 configurable lobes with individual outputs |
| Element Type | 113 MEMS microphones |
| Frequency Response | 125 Hz to 20 kHz |
| Maximum SPL | 95.7 dB SPL |
| Sensitivity | -1.74 dBFS/Pa |
| Dynamic Range | 77.5 dB |
| Signal-to-Noise Ratio | 75.76 dB (A-weighted) |
| Equivalent Noise Level | 18.24 dB SPL (A-weighted) |
| DSP Processing | AEC, Noise Reduction, Automatic Gain Control, Compression, Delay, EQ (4-band), Automixing |
| Latency | 15.9 ms (direct outputs), 26.6 ms (automix with DSP) |
| Digital Audio | Dante / AES67 networked audio |
| Sample Rate / Bit Depth | 48 kHz / 24-bit |
| Channel Count (Auto Coverage On) | 2 channels (1 output + 1 AEC reference) |
| Channel Count (Auto Coverage Off) | 10 channels (8 direct + 1 automix + 1 AEC reference) |
| Processor I/O | Dante (10 in / 8 out), Analog block inputs/outputs, 3.5 mm input, USB Type-B |
| Connectivity | RJ45 network, USB, analog, mobile device input |
| Power Requirements | PoE (microphone), PoE+ (processor) |
| Power Consumption | 10.1 W (microphone maximum) |
| Mounting Options | Ceiling mount (microphone), rackless or surface mount (processor) |
| Environmental Protection | Dust-resistant (IP5X) |
| Operating Temperature | 20 to 104°F / -6 to 40°C |
| Storage Temperature | -20 to 165°F / -28 to 73°C |
| Dimensions (Microphone) | 25 x 2.4 in (635.4 x 61.3 mm) |
| Weight (Microphone) | 12.7 lb (5.8 kg) |
| Security Features | AES-256 audio encryption |
| Compatibility | Shure Microflex Advance ecosystem, major conferencing platforms |
