Description

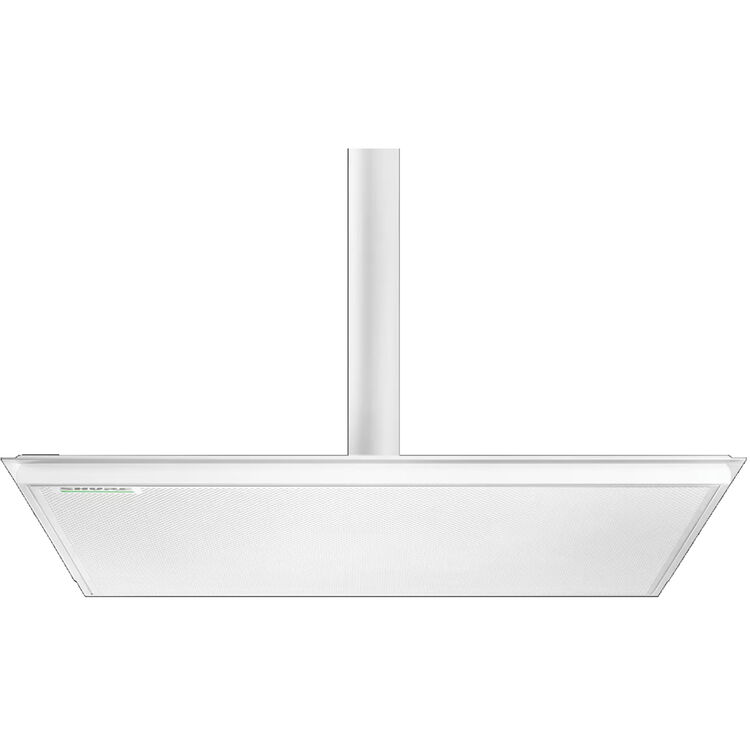

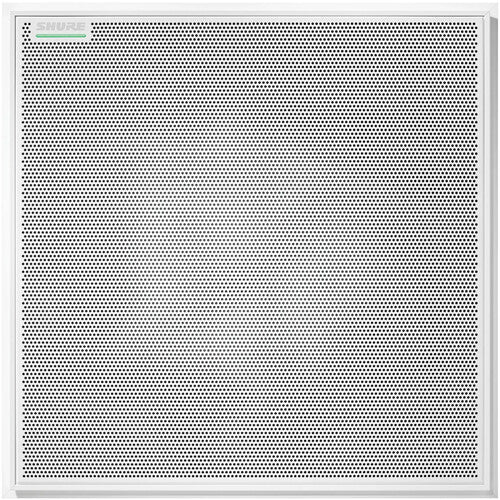

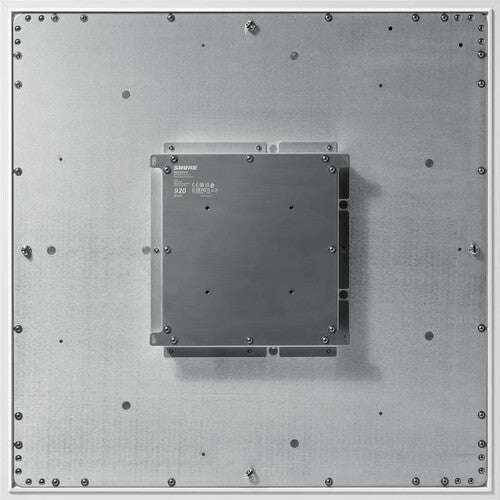

The Shure Microflex Advance MXA920-S + ANIUSB-MATRIX bundle delivers a complete, enterprise-grade audio conferencing solution designed for large meeting rooms and professional collaboration spaces. Featuring a 24-inch square ceiling array microphone optimized for standard American ceiling tiles, this system combines advanced audio capture with flexible connectivity and seamless integration.
The MXA920-S utilizes next-generation Automatic Coverage™ technology to capture voices clearly across wide areas with no setup required. For more precise control, Steerable Coverage allows up to eight customizable pickup lobes with individual outputs, ensuring accurate voice isolation and enhanced intelligibility. Built-in IntelliMix DSP provides acoustic echo cancellation, noise reduction, automatic gain control, and mixing, delivering clean and natural sound in any environment.

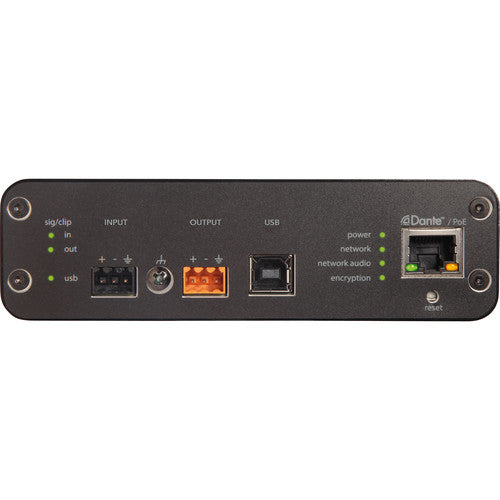

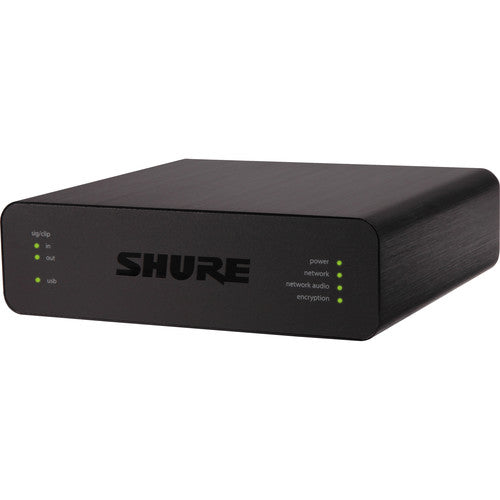

Paired with the ANIUSB-MATRIX, this bundle enables powerful audio routing and connectivity. With Dante, analog, and USB integration, it easily connects to conferencing systems or PCs while maintaining flexible signal routing through its internal matrix mixer. Power over Ethernet simplifies installation by delivering power, audio, and control through a single cable.
Ideal for AV conferencing, voice lift, and sound reinforcement applications, this bundle ensures consistent, high-quality audio performance while maintaining secure and scalable deployment for modern enterprise environments.
| Specification | Details |
|---|---|
| Microphone Model | Shure MXA920-S Ceiling Array |
| Bundle Components | MXA920-S Microphone, ANIUSB-MATRIX Interface |
| Microphone Type | Ceiling Array Conferencing Microphone |
| Form Factor | 24" Square (Fits Standard 2' Ceiling Tiles) |
| Element Type | 8x MEMS Microphone Elements |
| Coverage Technology | Automatic Coverage™ and Steerable Coverage |
| Pickup Zones | Up to 8 Configurable Lobes |
| Frequency Response | 125 Hz to 20 kHz |
| Maximum SPL | 95.7 dB |
| Dynamic Range | 77.5 dB |
| Equivalent Noise Level | 18.24 dB SPL (A-Weighted) |
| Digital Audio | 24-bit / 48 kHz |
| DSP Features | Acoustic Echo Cancellation, Noise Reduction, Automatic Gain Control, Automatic Mixing |
| Connectivity (Microphone) | Dante / AES67 via RJ45 |
| Connectivity (Interface) | 4 Dante Inputs, 2 Dante Outputs, 1 Analog In/Out, USB In/Out |
| Matrix Mixer | Internal with Flexible Routing |
| Equalization | 4-Band Parametric EQ (Analog & USB Outputs) |
| Power Supply | Power over Ethernet (PoE) |
| Encryption | Shure Audio Encryption Supported |
| Control Interface | Web UI and Third-Party Integration Support |
| Compatibility | Microsoft Teams Certified, Compatible with Major Platforms |
| Mounting | Ceiling Tile Installation |
| Color | White |
| Dimensions | 23.8" x 23.8" x 2.15" |
| Weight | 11.8 lb |
| Application | Large Conference Rooms, AV Systems, Voice Lift, Sound Reinforcement |
