Description

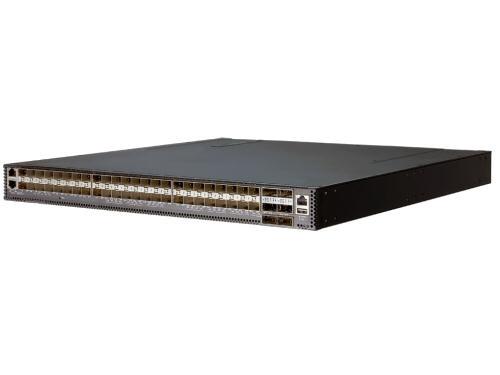

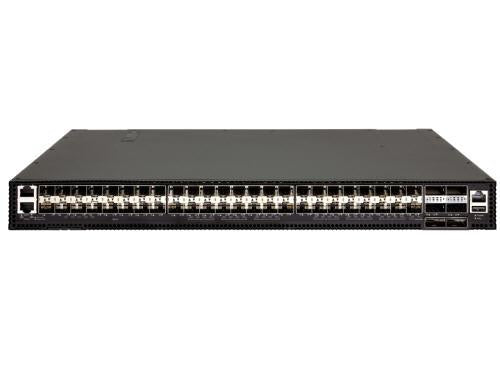

The Edgecore AS5835-54X-BR3-AC-F-US is a high-performance, rack-mountable Layer 2/3 data center switch bundle that includes the AS5835-54X switch and a 3-year L-BRSONIC-10 software license. Designed for scalable cloud and enterprise networks, it delivers robust performance powered by an Intel Atom processor with 16 GB of RAM and 16 MB of flash memory.
This bundle provides reliable, high-speed connectivity with a comprehensive feature set that includes 4+1 redundant fan modules, dual hot-swappable power supplies, and extensive Layer 2/3 functionality to optimize throughput and minimize downtime. The Edgecore AS5835-54X supports advanced management interfaces, jumbo frame capability, and rich software features—making it an ideal choice for modern data centers seeking flexibility, open networking, and long-term software support.
| Category | Specification |
|---|---|
| Manufacturer Part Number (Mfr. P/N) | 5835-54X-BR3-AC-F-US |
| SKU # | 7437119 |
| Model | AS5835-54X |
| Network Device Type | Layer 2/3 Data Center Switch Bundle |
| Included Items | AS5835-54X-O-AC-F Switch + L-BRSONIC-10-3Y License |
| Form Factor | Rack-Mountable (1U) |
| Processor Type | Intel Atom |
| Memory (RAM) | 16 GB |
| Flash Memory | 16 MB |
| Connectivity Technology | Wired |
| Media Layer Supported | Layer 2 or Layer 3 |
| MAC Address Table Size | 32 K (min) / 288 K (max) |
| Jumbo Frame Support | Up to 9 KB |
| Interfaces / Ports | RJ-45 serial console; RJ-45 100/1000BASE-T management; USB Type A storage |
| Power Supply | 2 × Hot-swappable AC PSUs |
| Power Input Voltage | 100–240 VAC @ 50–60 Hz |
| Cooling | 4+1 Redundant Hot-swappable Fan Modules |
| Status Indicators | LED |
| Dimensions (W × D × H) | 17.42 × 18.63 × 1.73 inches |
| Weight | 30 lbs |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | –40 °C to 70 °C |
| RoHS Compliance | Yes |
| TAA Compliance | Yes |
| Service & Support | 3-Year Warranty (Software License Included) |
| Intended Use | Data Centers and High-Performance Enterprise Networks |
| UNSPSC Code | 43222612 |
| Country of Origin | Taiwan |
