Description

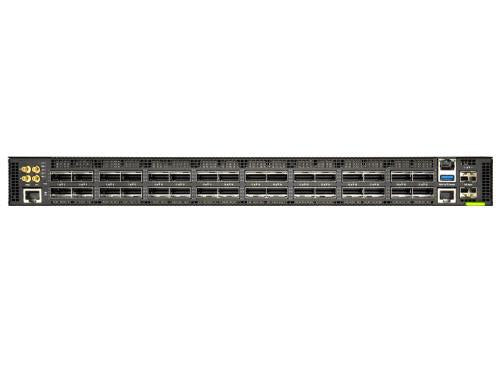

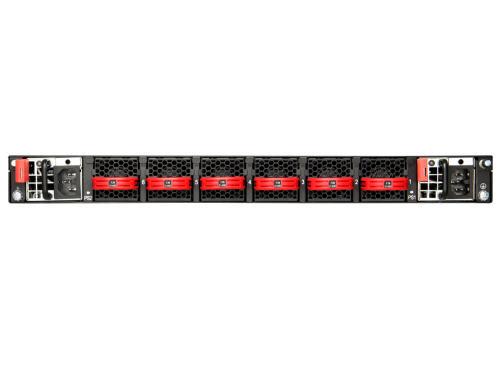

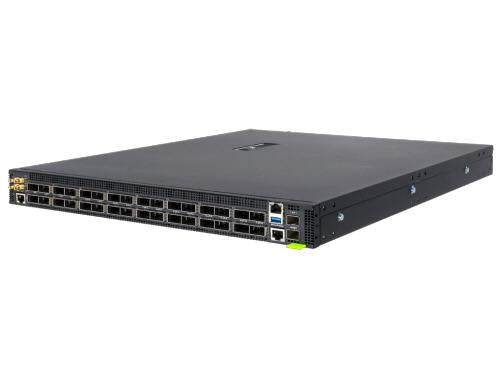

The Edgecore AS9716-32D-BR3-AC-F-US is a high-performance 400G data center spine switch designed for modern cloud and hyperscale environments. This bundle includes the Edgecore AS9716-32D-O-AC-F-US switch and a 3-year SONiC network operating system license (L-BRSONIC-400G-3Y), offering a flexible and open networking solution for advanced Layer 2 and Layer 3 deployments.
Equipped with 32 x QSFP-DD ports, the AS9716-32D delivers full line-rate switching at up to 400 GbE per port, supporting breakout configurations for 100 GbE or 25 GbE connectivity. Powered by an Intel® Xeon® processor with 16 GB of RAM and redundant power supplies, this 1RU switch ensures exceptional reliability, scalability, and interoperability for high-performance data centers.
Loaded with the Open Network Install Environment (ONIE), it enables users to install compatible open or commercial Network Operating Systems (NOS), including SONiC, for optimal network agility and efficiency.
| Category | Specification |
|---|---|
| Model | AS9716-32D |
| Bundle Includes | AS9716-32D-O-AC-F-US + L-BRSONIC-400G-3Y |
| Network Device Type | Spine Switch |
| Form Factor | 1RU Rack-Mountable |
| Connectivity Technology | Wired |
| Data Transfer Rate | 400 Gbps per port |
| Data Link Protocol | 400 Gigabit Ethernet |
| Total Ports | 32 × QSFP-DD |
| Breakout Support | 4 × 100 GbE or 4 × 25 GbE per port |
| Management Interfaces | 2 × SFP+ 10G; RJ-45 serial console; RJ-45 1G management; USB; ToD |
| Processor Type | Intel® Xeon® |
| Memory (RAM) | 16 GB |
| Flash Memory | 16 MB |
| MAC Address Table | 8 K entries |
| Jumbo Frame Support | Up to 9 K bytes |
| Power Supply | 2 × Hot-swappable AC PSU |
| Input Voltage | 100–240 VAC, 50–60 Hz |
| Operating Temperature | 0 °C to 45 °C |
| Storage Temperature | -40 °C to 70 °C |
| Compliance | RoHS, TAA Compliant |
| Dimensions (W × D × H) | 17.25 in × 21.1 in × 1.69 in |
| Weight | 21 lbs |
| Warranty | 3-Year Warranty (Hardware + SONiC License) |
| Use Case | High-performance data center spine interconnects |
