Description

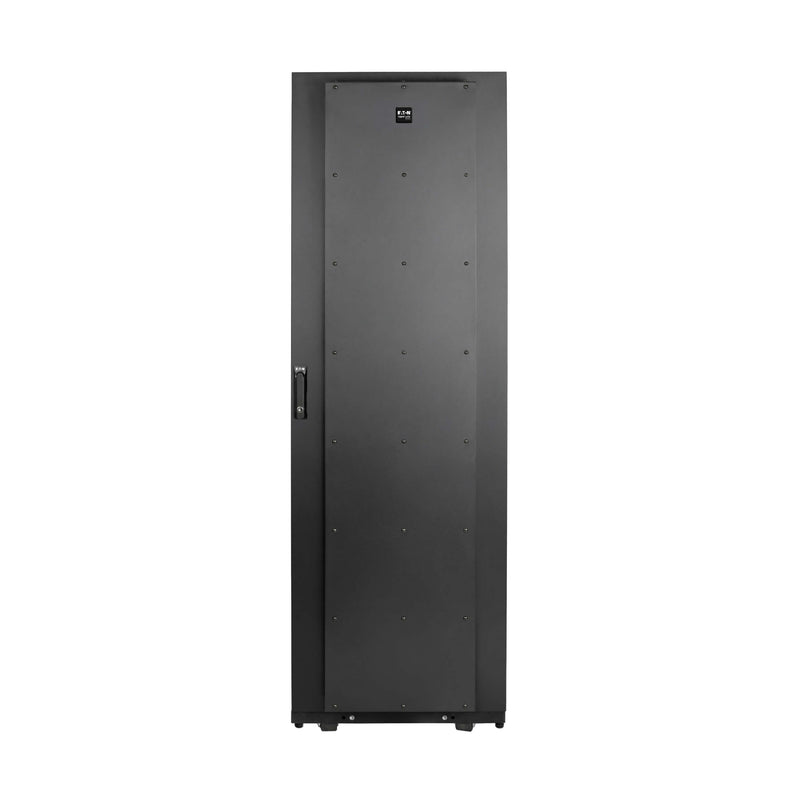

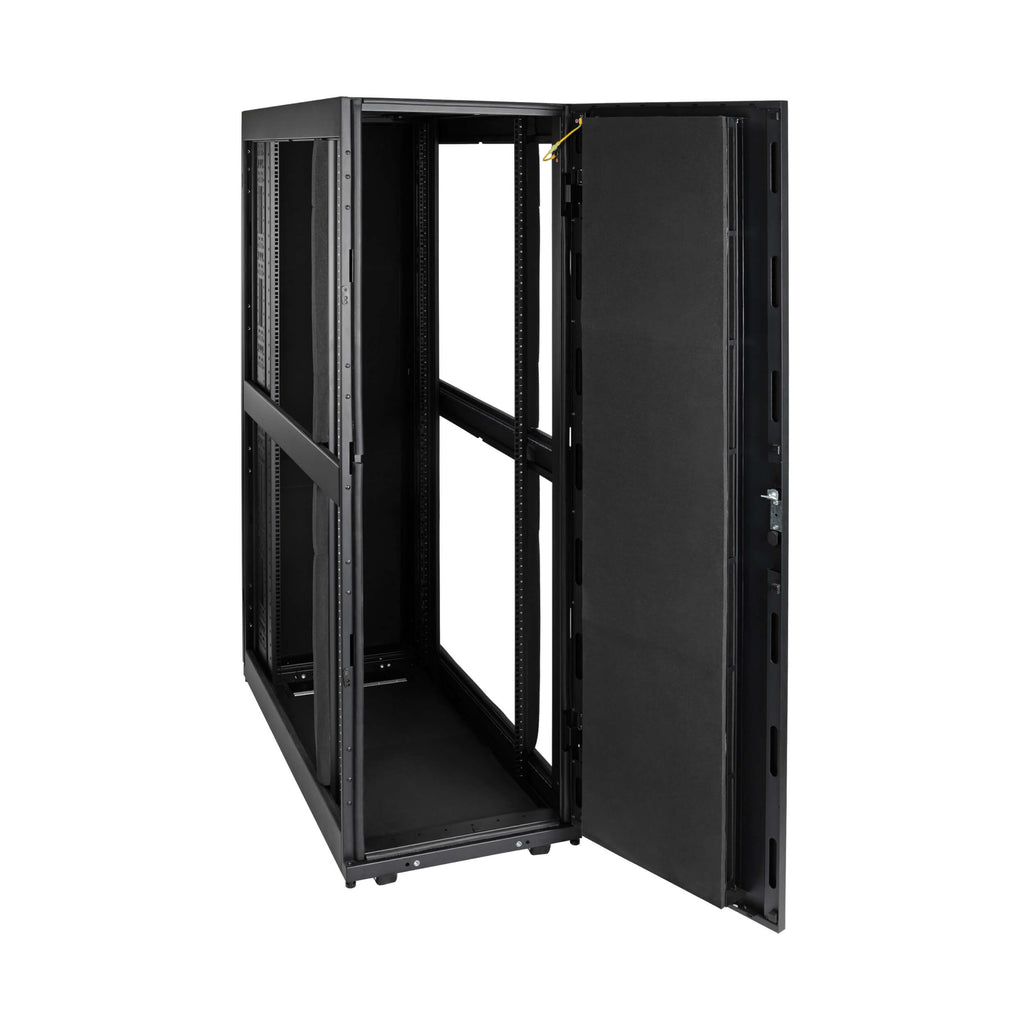

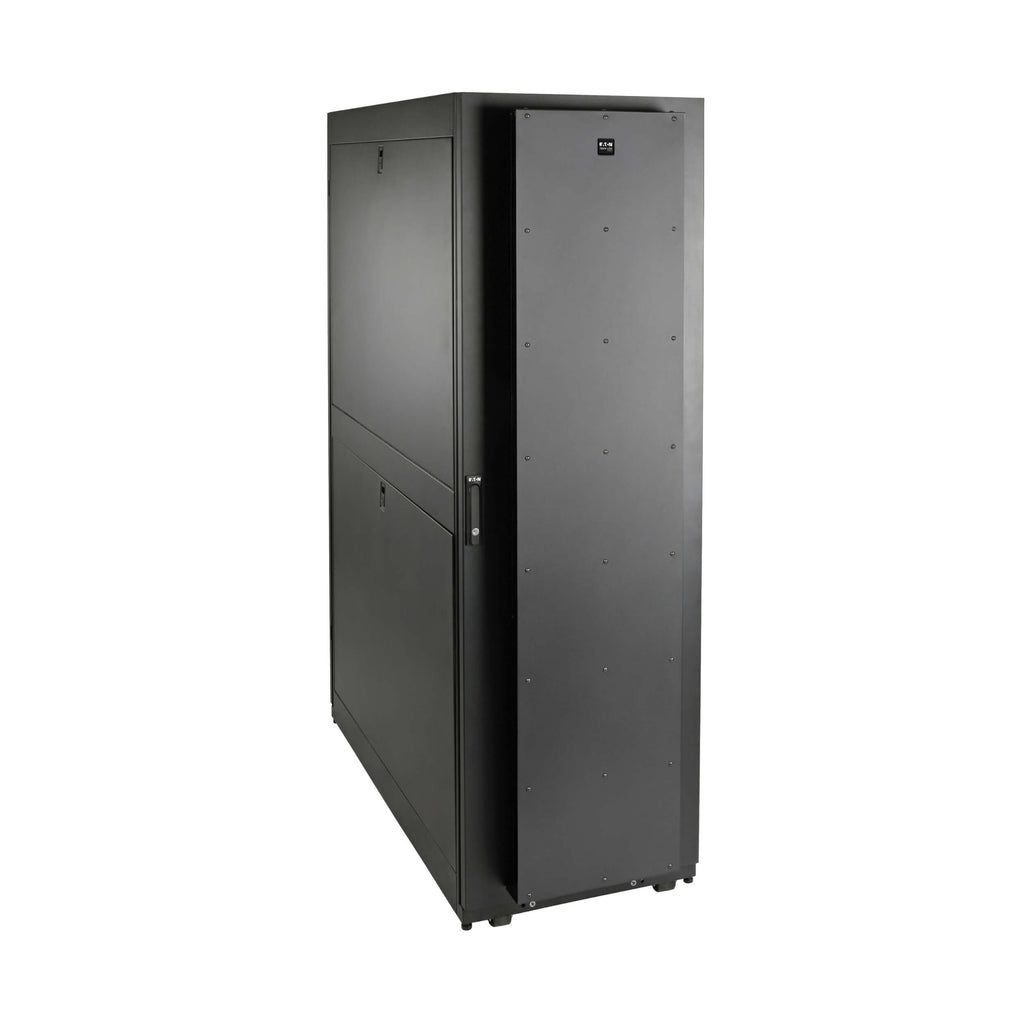

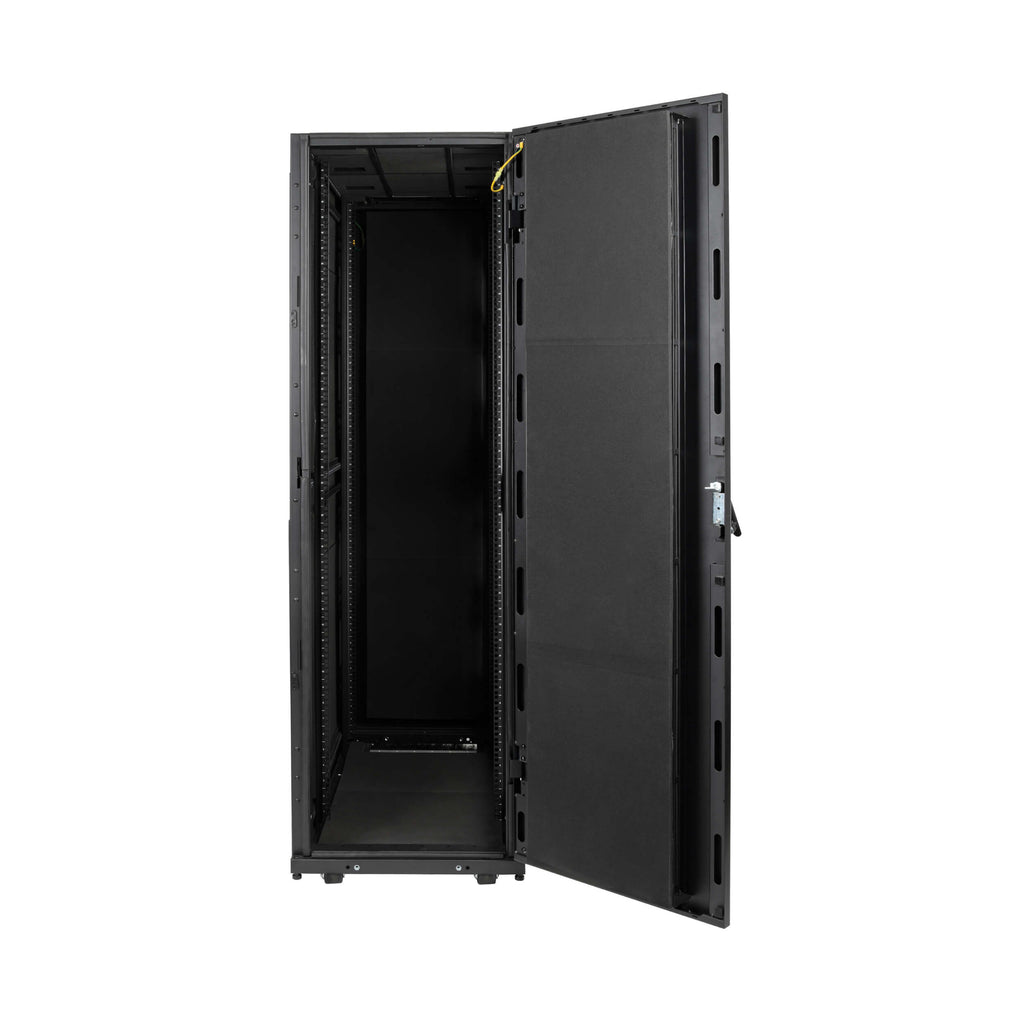

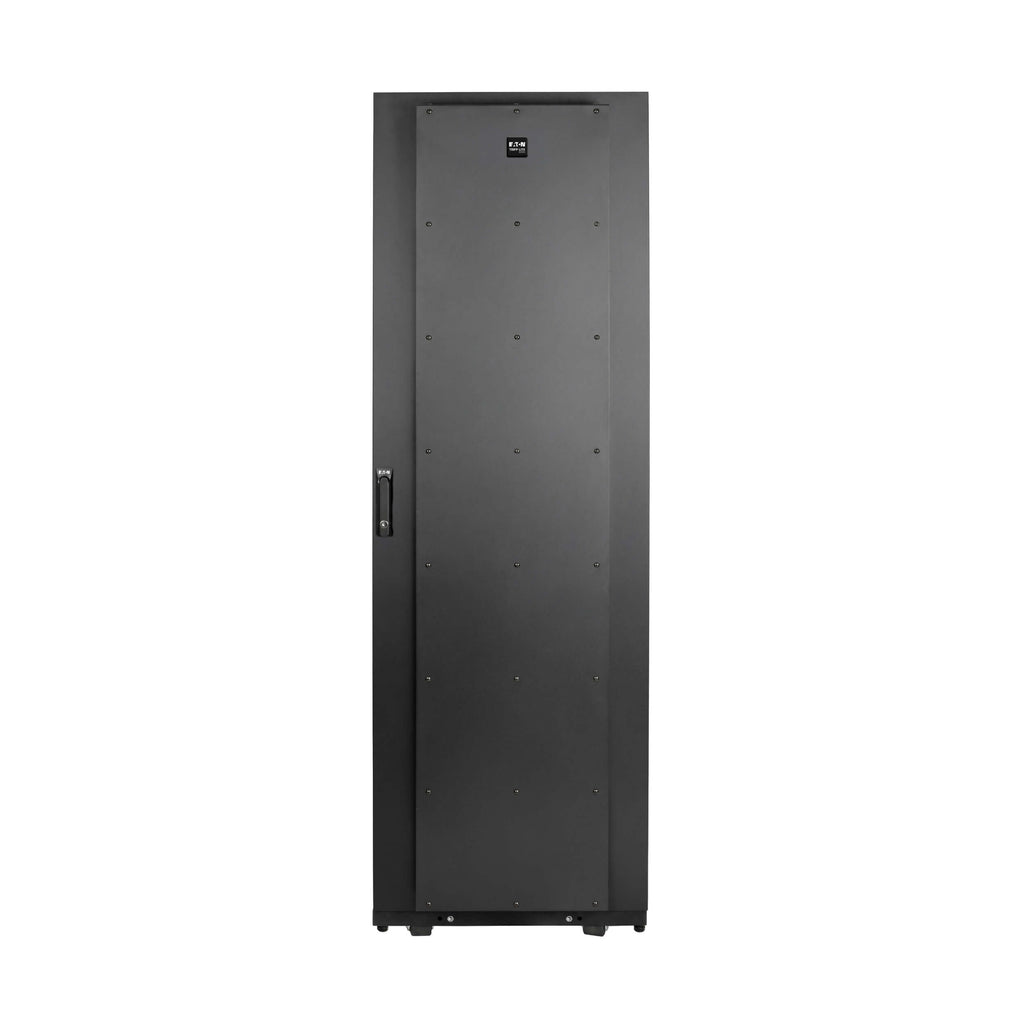

The Eaton Tripp Lite SRQP42UB SmartRack 42U Quiet Server Rack Enclosure is a premium sound-suppressed cabinet designed to secure, organize, and cool EIA-standard 19-inch rack equipment. Engineered for offices, studios, and retail spaces where noise reduction is crucial, it features special foam sound-dampening panels that reduce acoustic levels by up to 20 decibels, minimizing equipment noise without sacrificing airflow or performance.
Built from heavy-duty steel with a black powder-coated finish, this cabinet supports a maximum stationary load of 2400 lbs (1088.6 kg) and a rolling load of 2000 lbs (907.2 kg). It includes a unique passive airflow system that draws cool air through the front intake and exhausts warm air out the rear, maintaining optimal operating temperatures.
The SRQP42UB ships fully assembled with pre-installed casters, locking doors and panels, and adjustable mounting rails for effortless equipment installation. Designed for PCI DSS compliance, it combines robust security with professional-grade noise control—ideal for any quiet IT or AV environment.
| Category | Details |
|---|---|
| Model Number | SRQP42UB |
| Brand | Eaton Tripp Lite |
| Product Type | 42U Quiet Server Rack Enclosure Cabinet |
| Rack Compatibility | EIA-standard 19-inch equipment |
| Rack Height | 42U |
| Rack Depth | Standard |
| Maximum Device Depth | 37 in (940 mm) |
| Minimum Device Depth | 4 in (102 mm) |
| Stationary Load Capacity | 2400 lbs (1088.6 kg) |
| Rolling Load Capacity | 2000 lbs (907.2 kg) |
| Construction Material | Heavy-duty steel, black powder-coated finish |
| Noise Reduction | Up to 20 dB via foam sound-dampening panels |
| Cooling Design | Passive airflow (front intake to rear exhaust) |
| Cable Management | Brush-strip cable plates (top and bottom) |
| Access Panels | Removable, split side panels and toolless top panel |
| Security | Locking front/rear doors and side panels with keys |
| Mounting Rails | Adjustable in 1/4-inch increments; square-hole type |
| Casters and Levelers | Pre-installed casters; removable levelers included |
| Unit Dimensions (H x W x D) | 78.5 x 23.63 x 56.34 in (199.34 x 59.99 x 109.22 cm) |
| Unit Weight | 523 lbs (237.23 kg) |
| Shipping Dimensions (H x W x D) | 83.46 x 25.98 x 58.66 in (211.99 x 65.99 x 149.00 cm) |
| Shipping Weight | 573.2 lbs (260 kg) |
| Grounding Details | Front and rear door frames |
| Certifications | UL 60950-1 |
| Compliance | RoHS, CE (Europe), UKCA |
| Warranty | 5-Year Limited Warranty |
| Included Accessories | (50) M6 screws, (50) M6 cage nuts, (50) M6 washers, (2) keys, owner’s manual |
