Description

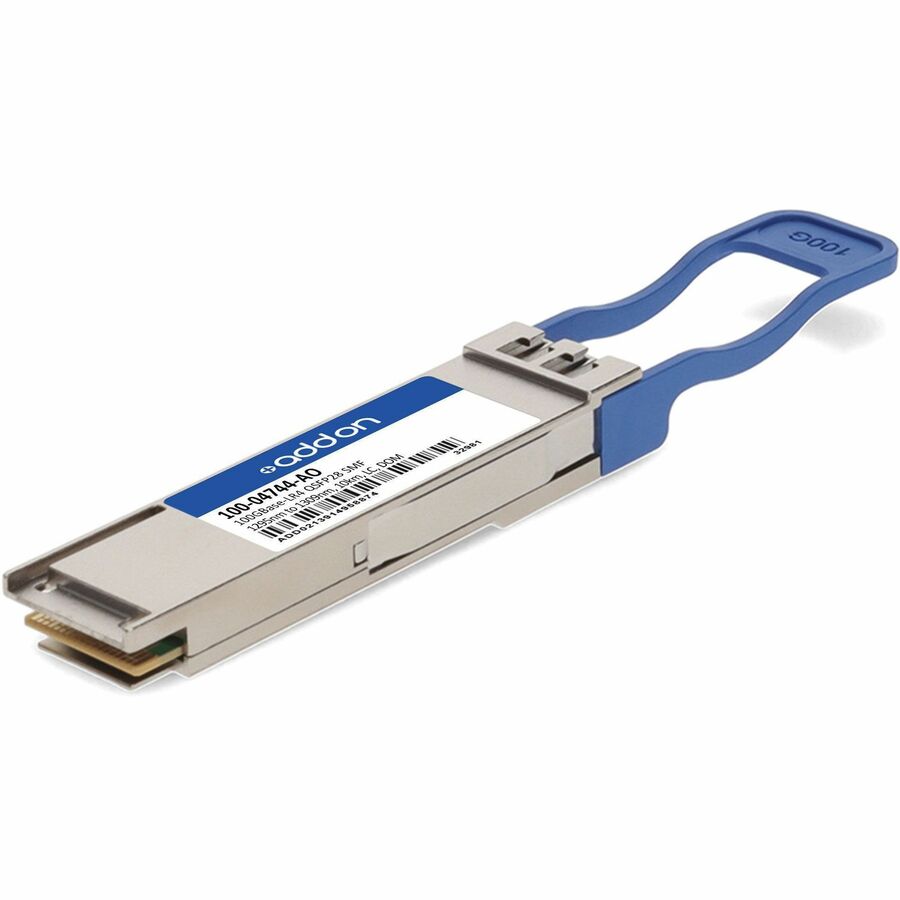

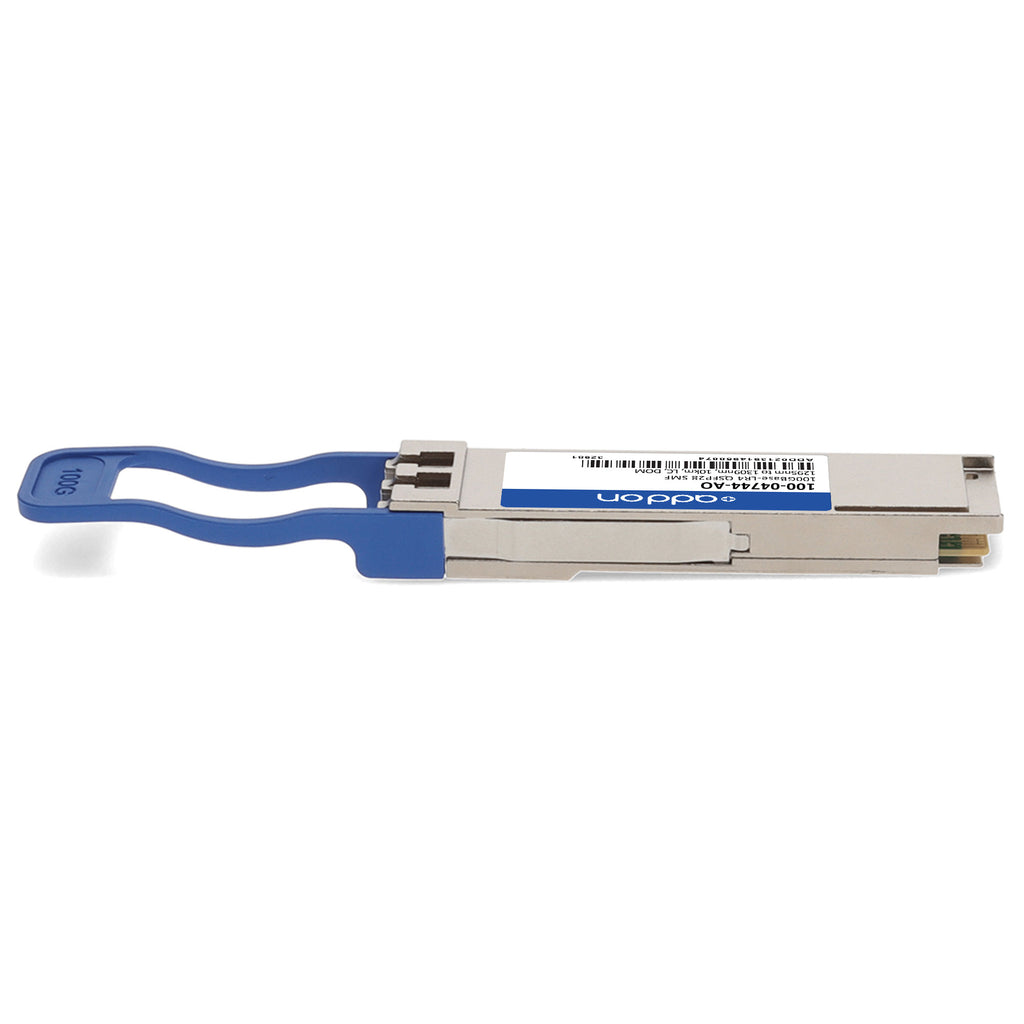

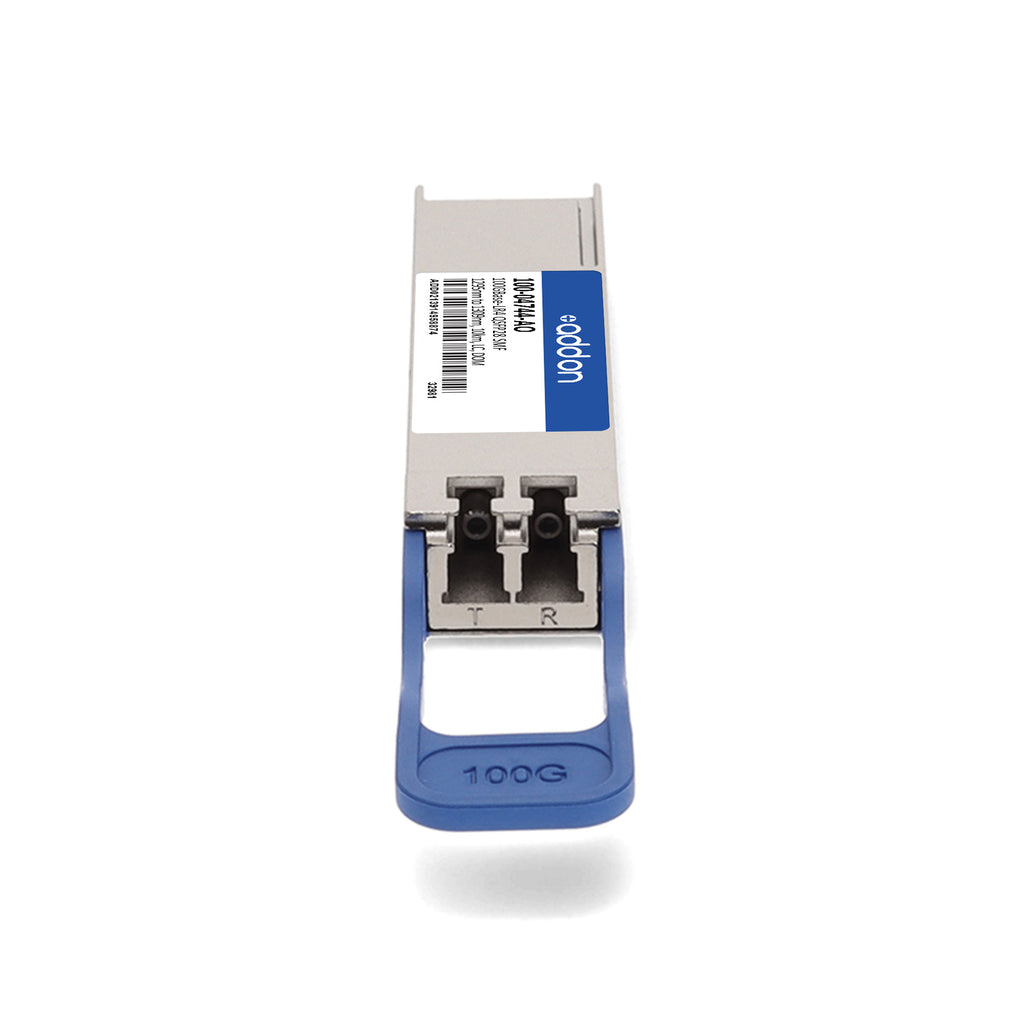

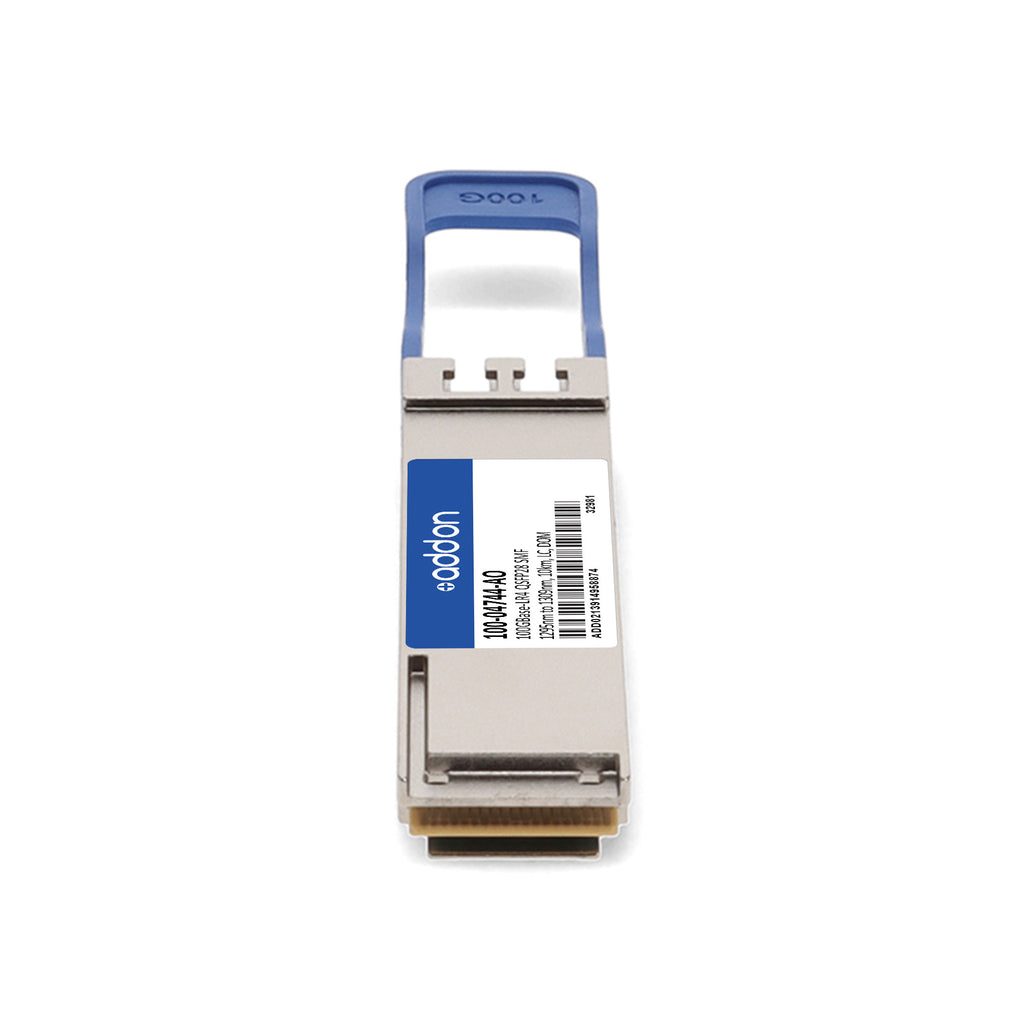

The AddOn Calix® 100-04744 Compatible QSFP28 Transceiver delivers high-performance 100 GBase-LR4 Ethernet connectivity with a reach of up to 10 km over single-mode fiber (SMF) using 1295 nm – 1309 nm wavelengths and an LC duplex connector. Designed to meet or exceed OEM specifications, it ensures seamless interoperability and is 100% compatible with Calix® hardware.
This hot-swappable module supports Digital Optical Monitoring (DOM) for real-time diagnostics, is TAA compliant, and adheres to SFF-8665 standards, making it an ideal choice for access, enterprise, and high-bandwidth networking environments. Built with excellent ESD protection, low EMI metal housing, and RoHS-compliant, lead-free construction, this transceiver guarantees reliable long-distance data transmission and exceptional network performance.
| Specification | Details |
|---|---|
| Brand | AddOn |
| Compatible OEM | Calix® |
| Part Number | 100-04744-AO |
| Form Factor | QSFP28 |
| Application | 100GBase-LR4 Ethernet |
| Compliance | SFF-8665, RoHS, TAA |
| Data Rate | 100 Gbps |
| Transmission Distance | Up to 10 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Wavelength Range | 1295 nm – 1309 nm |
| Connector Type | Duplex LC |
| DOM Support | Yes |
| Hot Swappable | Yes |
| Operating Temperature | 0 °C – 70 °C |
| Storage Temperature | -40 °C – 85 °C |
| Power Dissipation | ≤ 3.5 W |
| Supply Voltage | 3.135 V – 3.465 V |
| Average Launch Power (per lane) | -4.3 dBm – 4.5 dBm |
| Extinction Ratio | ≥ 4 dB |
| Receiver Sensitivity (per lane) | ≤ -8.6 dBm |
| Maximum Receive Power (per lane) | ≤ 4.5 dBm |
| ESD Protection | Enhanced |
| EMI Shielding | Metal Housing, Low EMI |
| Warranty | Limited Lifetime Warranty |
