Description

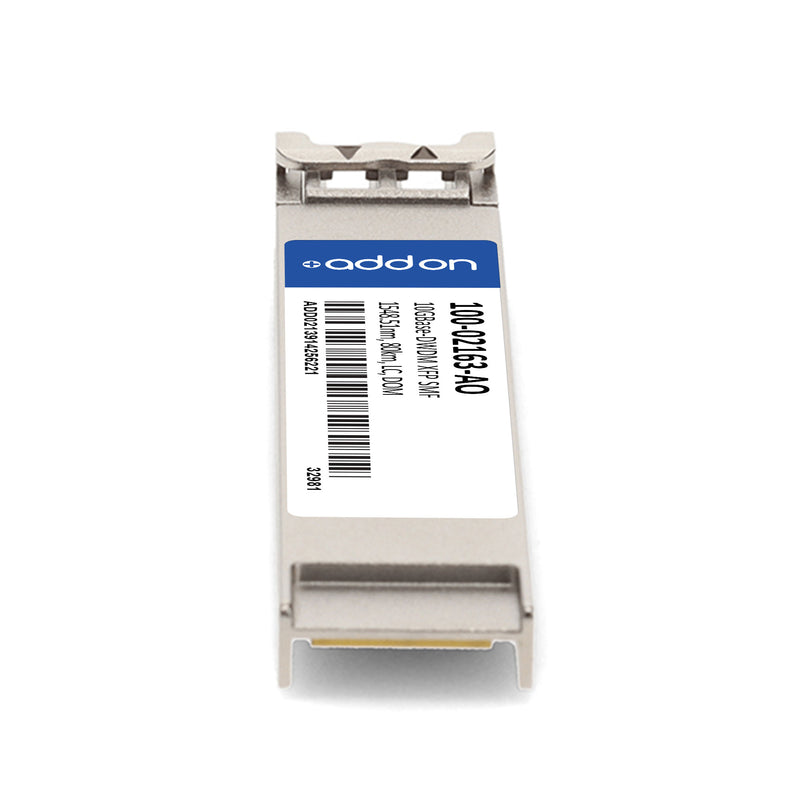

The AddOn Calix® 100-02163 compatible XFP transceiver delivers reliable 10GBase-DWDM performance up to 80km over single-mode fiber (SMF) using a 1548.51nm wavelength via an LC connector. Designed for seamless integration, it is fully compliant with INF-8077i standards, hot-pluggable, and features a temperature-stabilized EML transmitter with an APD receiver for enhanced stability.
With Digital Optical Monitoring (DOM) support, network administrators can access real-time operating parameters, ensuring consistent uptime and optimized performance. This transceiver is TAA compliant, RoHS compliant, and backed by AddOn’s limited lifetime warranty, making it a cost-effective and dependable choice for access, metro, and enterprise network environments.
| Specification | Details |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | 100-02163-AO |
| Form Factor | XFP |
| Data Rate | Up to 11.3 Gbps |
| Wavelength | 1548.51 nm (Channel 36, ITU Grid 100GHz) |
| Distance | Up to 80 km |
| Connector | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Optical Power (TX) | 0 to +5 dBm |
| Receiver Sensitivity | ≤ -23 dBm |
| Receiver Overload | -8 dBm |
| Extinction Ratio | ≥ 9 dB |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Storage Temperature | -40°C to 85°C |
| Power Supply Voltage | +3.3V, +5V |
| Power Consumption | 3.5W (max) |
| Compliance | INF-8077i, RoHS 2.0, TAA, FCC Part 15, IEC 60825-1/2 |
| Features | Hot Pluggable, DOM Support, Excellent ESD Protection, Metal Housing with Low EMI |
| Applications | 10G Ethernet DWDM, 8x/10x Fibre Channel, Access/Metro/Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
