Description

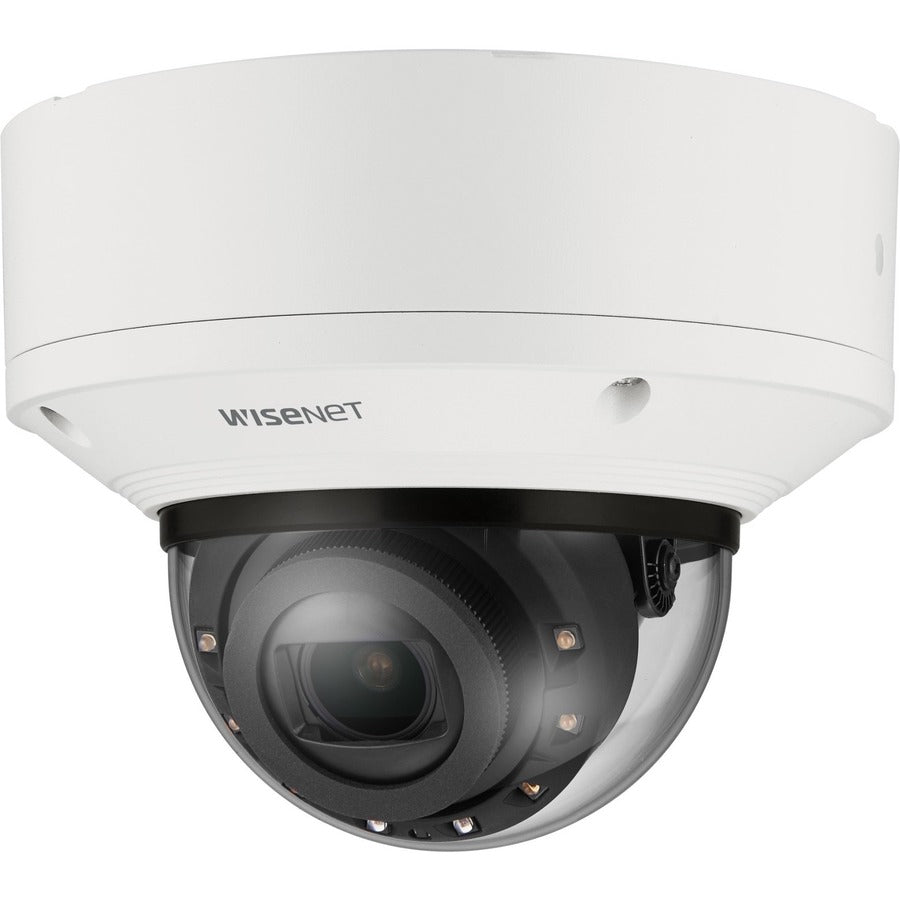

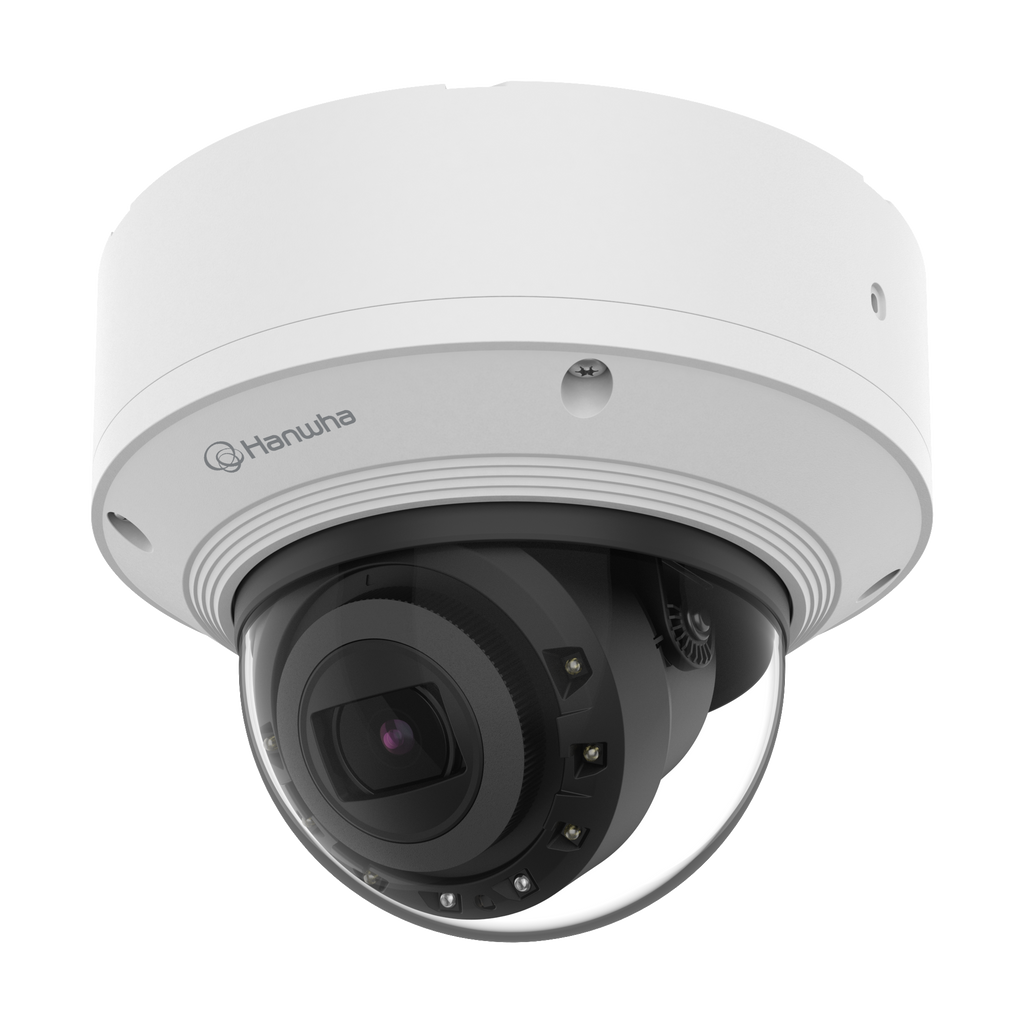

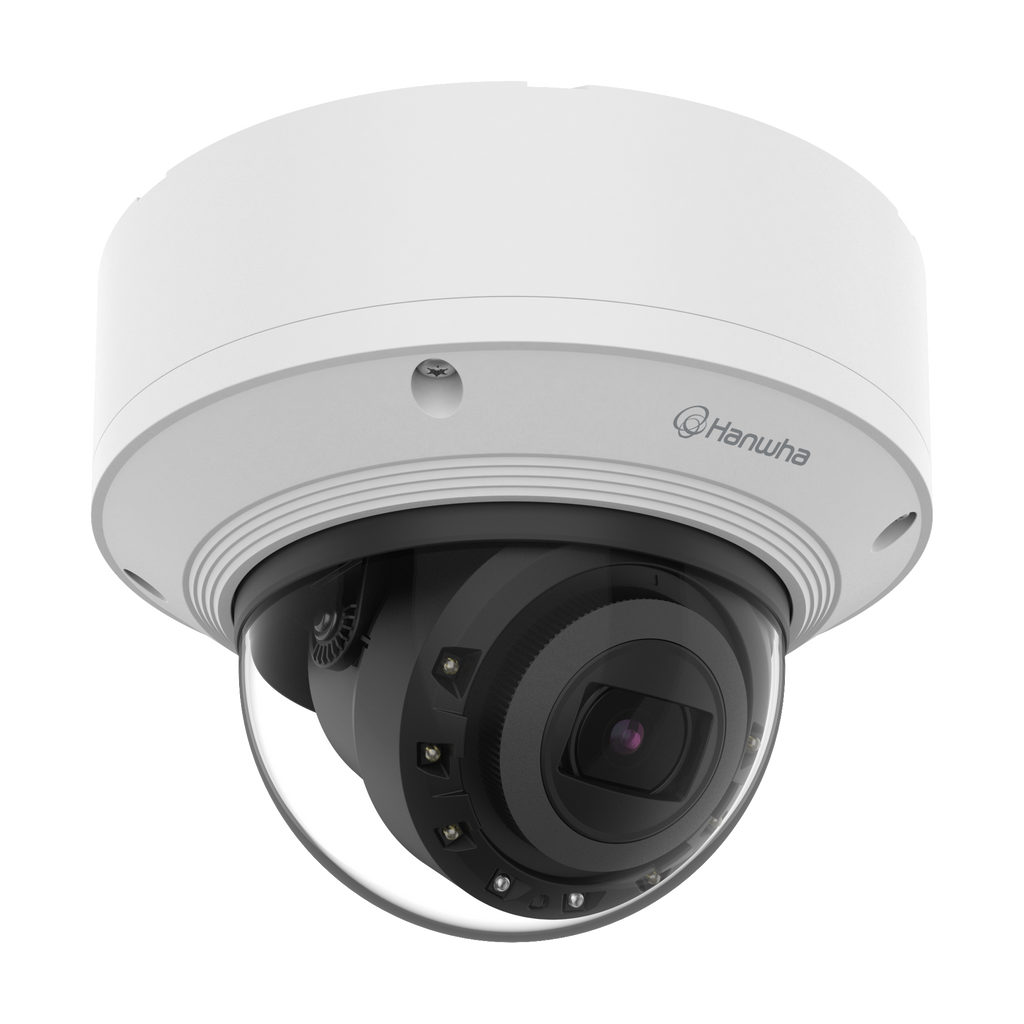

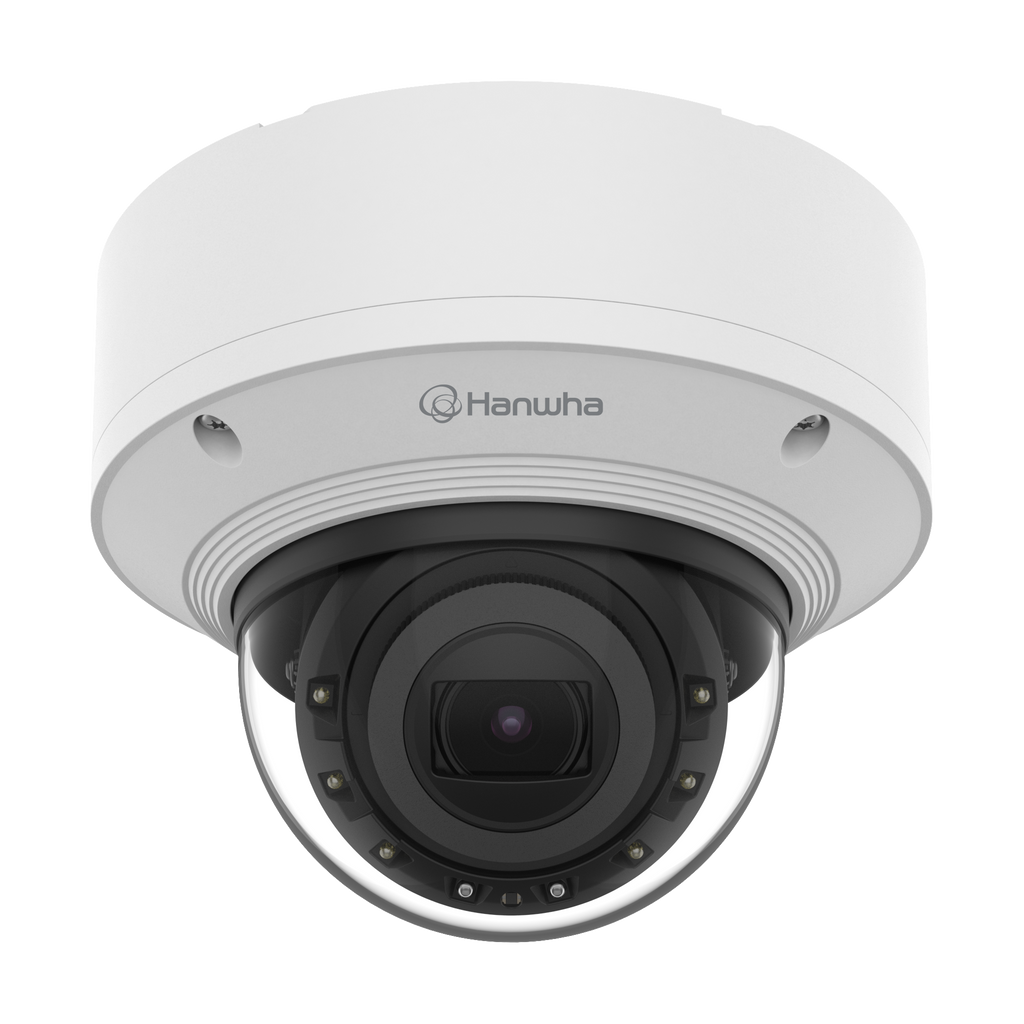

The Wisenet XND-8093RV is a high-performance 6MP indoor dome camera engineered for advanced AI analytics, superior image quality, and reliable monitoring in professional security environments. Equipped with a 10.9–29mm motorized varifocal lens, it delivers flexible coverage with outstanding low-light performance down to 0.06 Lux and true 0 Lux with IR. The integrated WiseIR technology extends IR visibility up to 70m, ensuring clear imaging even in challenging lighting conditions.
Powered by an onboard AI engine (NPU), the camera provides accurate object, face, vehicle, and license plate detection, plus advanced Intelligent Video Analytics (IVA) including virtual line, intrusion, loitering, direction detection, and more. It also supports extremeWDR (120dB), WiseNRII, and WiseStreamIII for optimized clarity and efficient bandwidth use.
Built with a hard-coated IK10 dome, IP52 environmental protection, and TAA compliance, the XND-8093RV is ideal for enterprise-grade installations requiring durability, analytics precision, and dependable operation.
| Category | Specification |
|---|---|
| SKU | XND-8093RV/KEX |
| Camera Type | 6MP Indoor AI IR Network Dome Camera |
| Image Sensor | 1/1.8" CMOS |
| Max Resolution | Up to 3328 × 1872 |
| Lens | Motorized varifocal 10.9–29mm (2.7x optical zoom) |
| Aperture | F1.7 (Wide), F1.73 (Tele) |
| Field of View | H: 42°–15°, V: 23°–8°, D: 49°–17° |
| Min. Illumination | 0.06 Lux (Color), 0.006 Lux (B/W), 0 Lux (IR on) |
| IR Illumination | WiseIR up to 70m (850nm) |
| Frame Rate | 30fps (H.265/H.264), MJPEG 30fps@6MP (max 5fps) |
| Day/Night | ICR (Auto) |
| WDR | extremeWDR 120dB |
| Noise Reduction | WiseNRII (AI-based), SSNRV |
| Image Enhancements | Defog, DIS (gyro-based), LDC, Hallway view, Flip/Mirror |
| AI Object Detection | Person, Face, Vehicle (car, bus, truck, motorcycle, bicycle), License plate |
| AI/IVA Features | Virtual line, Virtual area, Intrusion, Enter/Exit, Loitering, Motion detection |
| Additional Analytics | Defocus, Tampering, Fog detection, Shock detection, Audio detection, Sound classification, Appear/Disappear |
| Audio | Built-in mic, Audio in (mic/line selectable), Audio out |
| Network Interface | RJ-45 (10/100/1000BASE-T) |
| Video Compression | H.265/H.264 (Main/Baseline/High), MJPEG |
| Smart Codec | WiseStreamIII |
| Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, HTTP/HTTPS, DHCP, SNMP, QoS, MQTT, ONVIF S/G/T/M |
| Edge Storage | Dual microSD/SDHC/SDXC slots up to 1TB total (OnCloud up to 2TB total) |
| Security | TPM 2.0, Secure boot, Signed firmware, 802.1X, HTTPS, SRTP |
| Input Voltage | PoE+ (IEEE 802.3at Class 4), 12VDC |
| Power Consumption | PoE: Max 22.5W / Typ 17.9W; 12VDC: Max 20W / Typ 15.6W |
| Operating Temp | –25°C to +50°C (–13°F to +122°F) |
| Ingress/Impact Rating | IP52, IK10 |
| Material / Color | Aluminum, White (RAL 9003) |
| Dimensions | Ø160 × 125mm (6.30 × 4.92 in) |
| Weight | 1,600g (3.53 lb) |
