Description

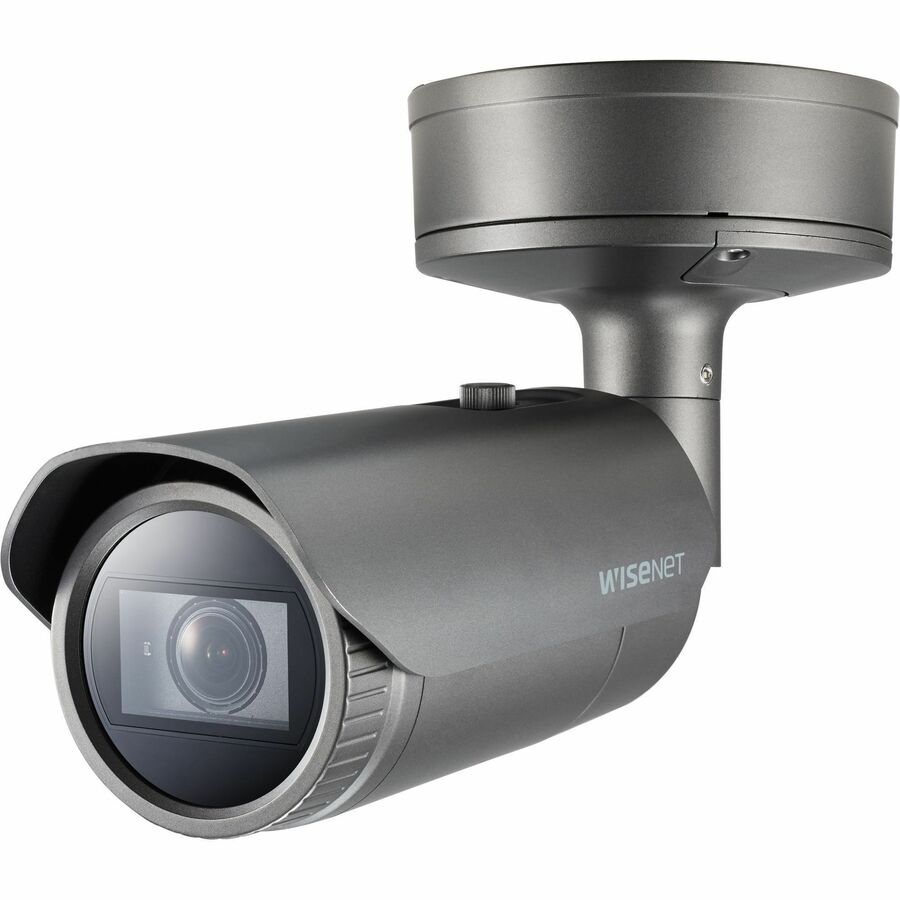

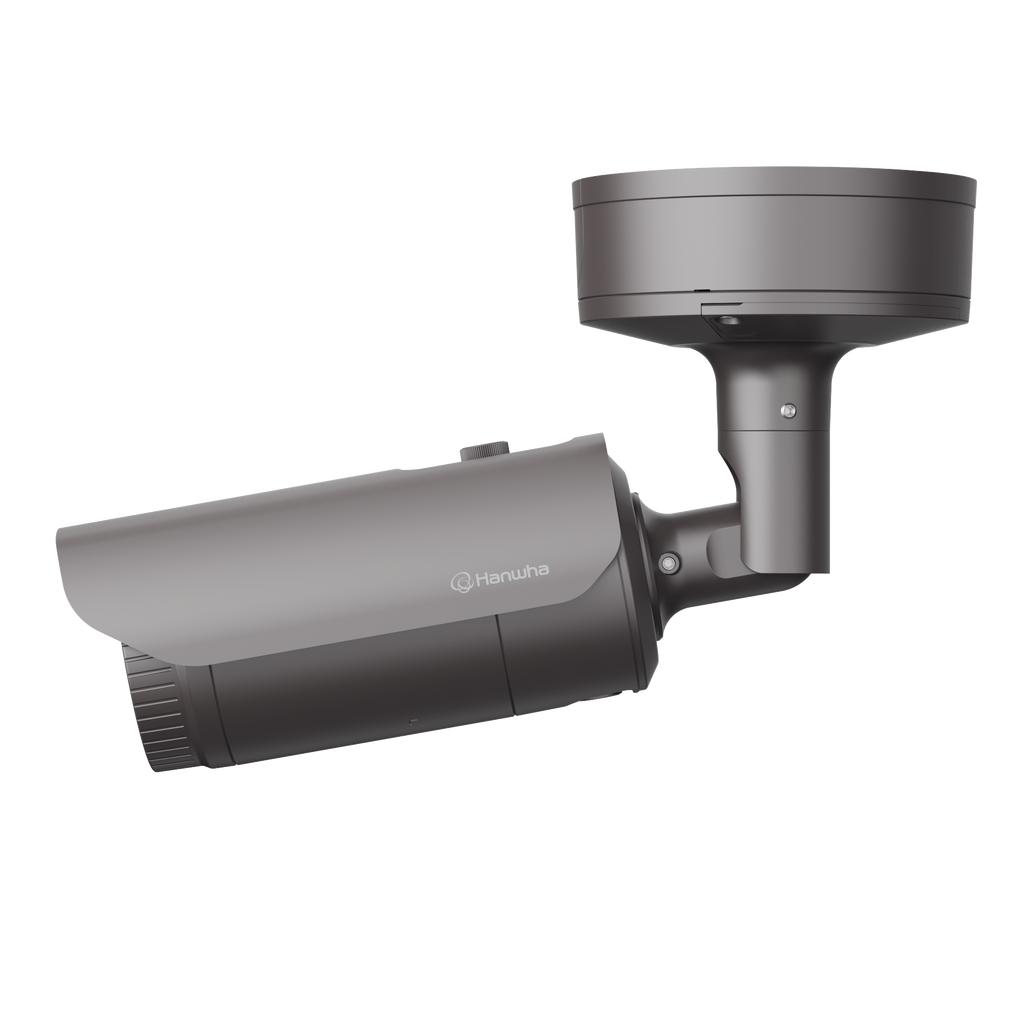

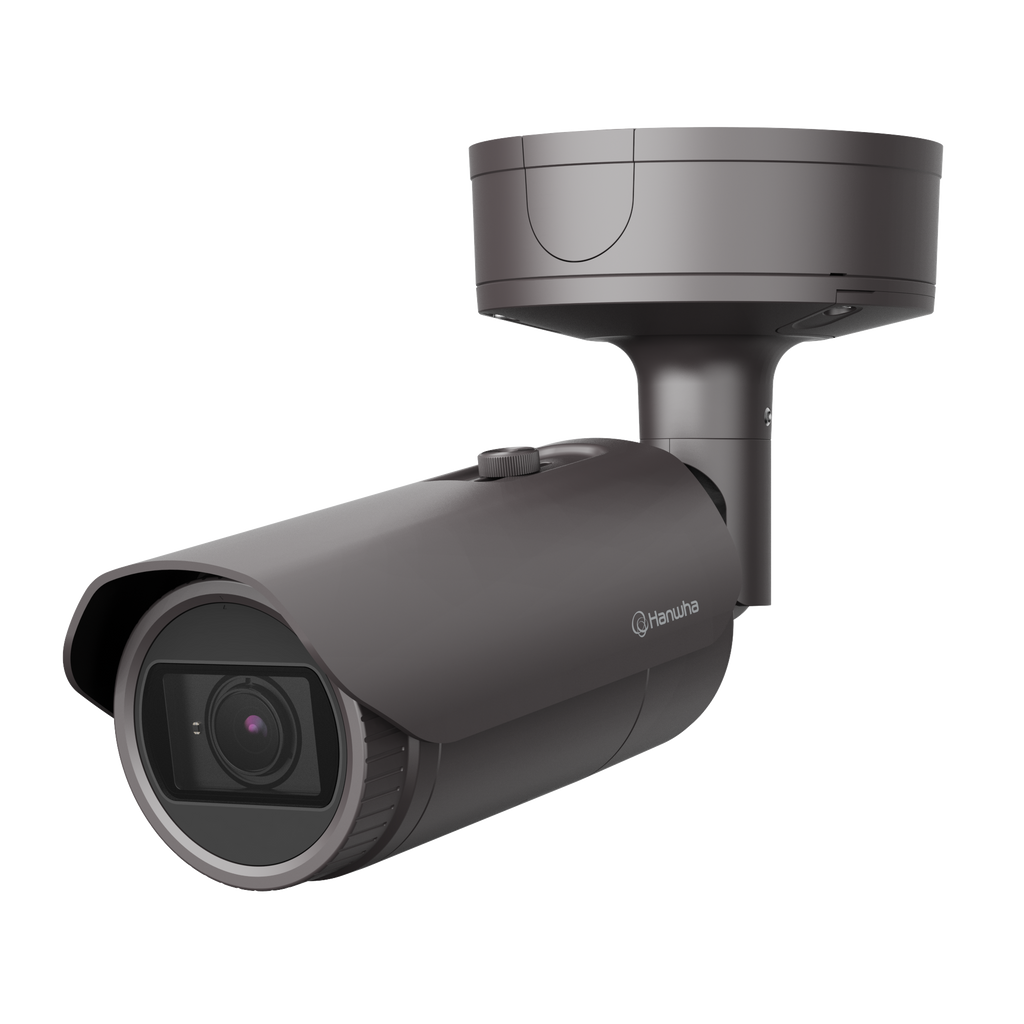

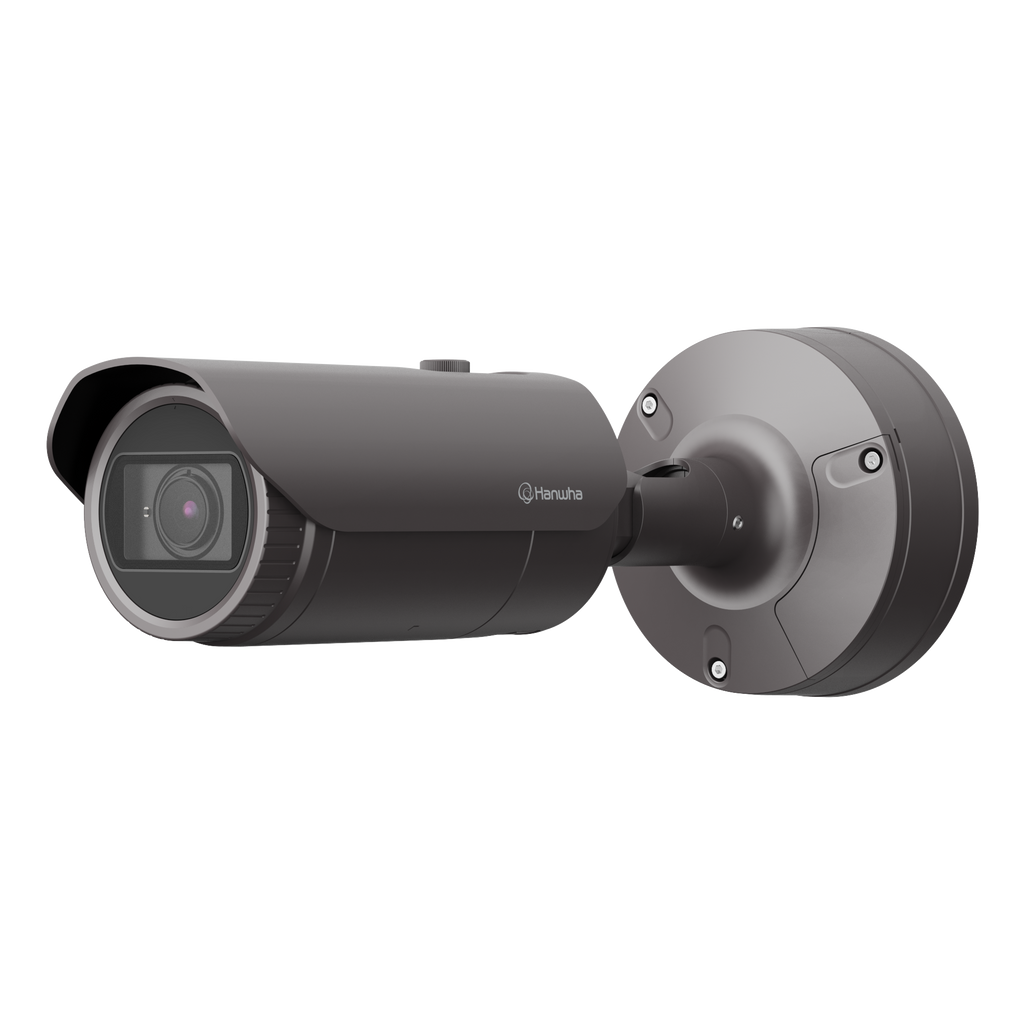

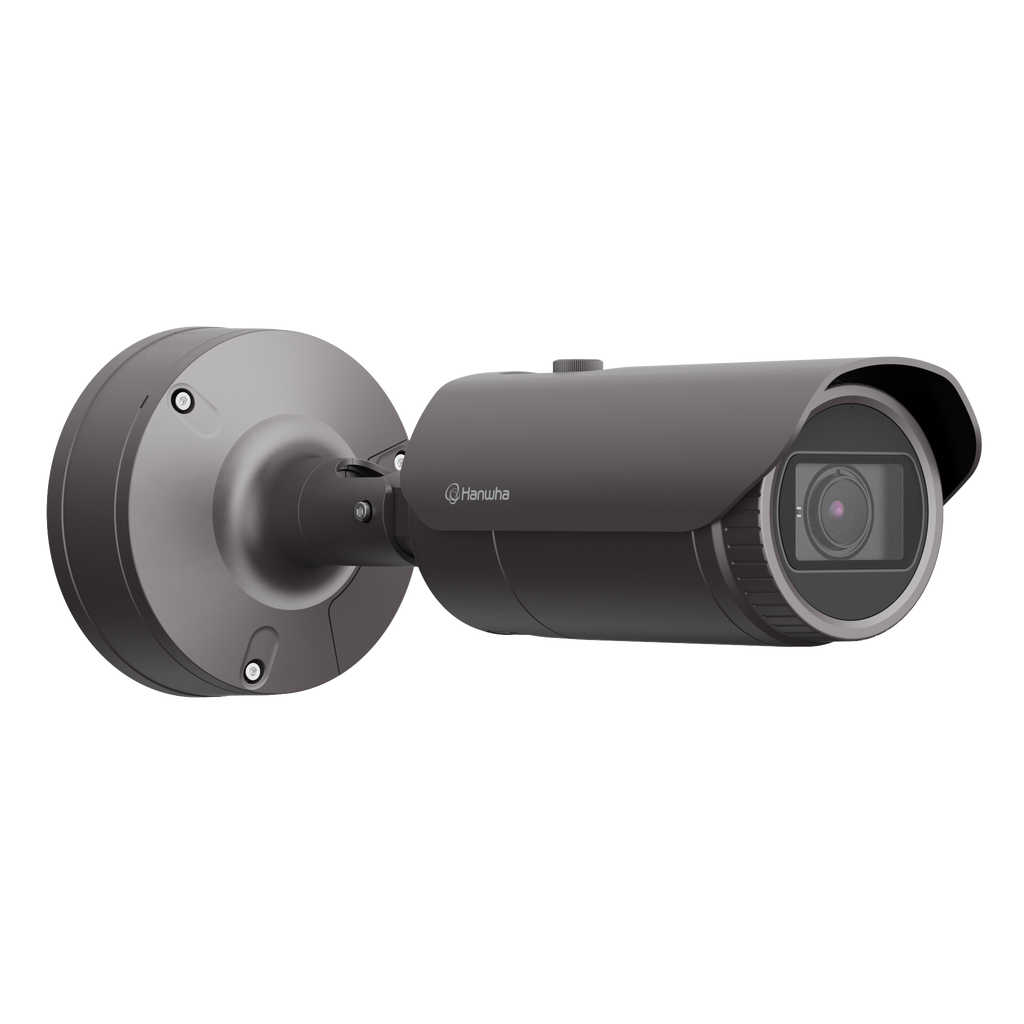

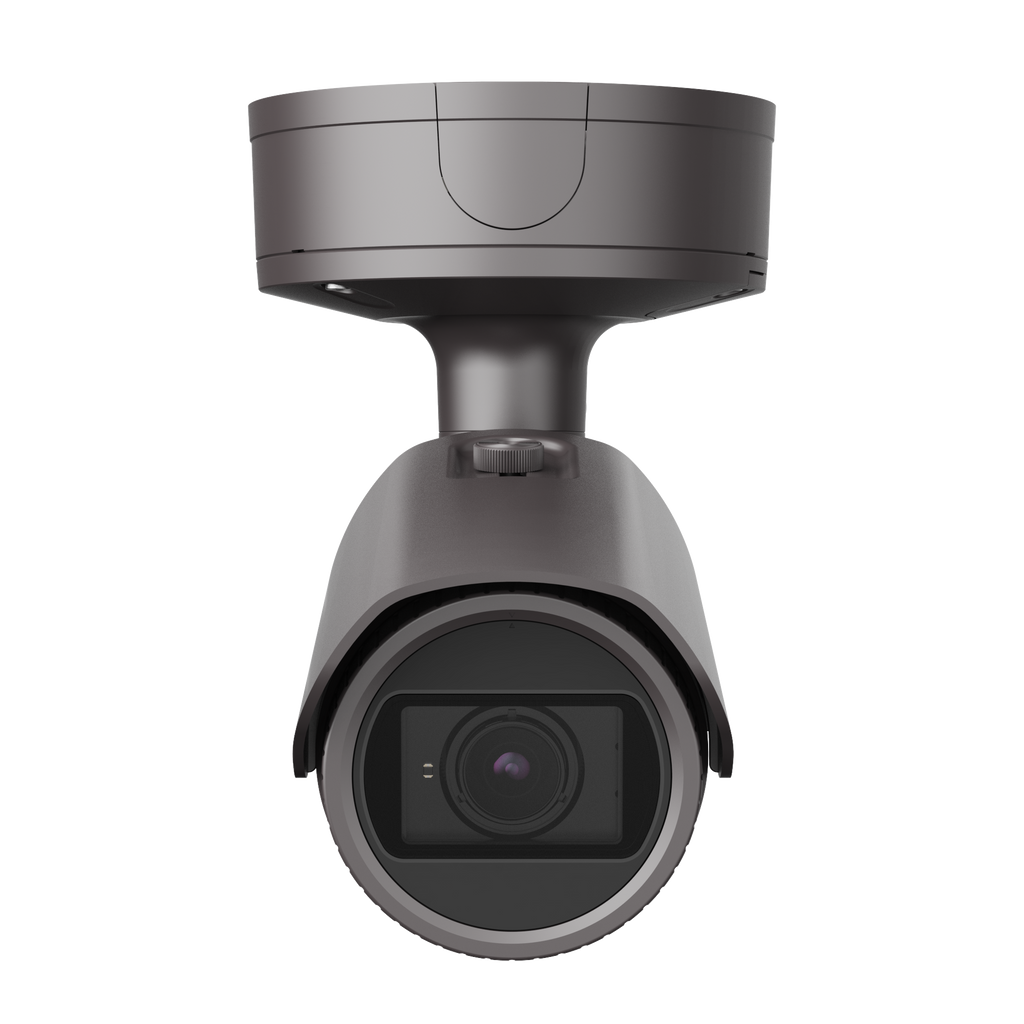

The Wisenet PNO-A9081RLP/KAP is a powerful 4K AI-driven bullet camera designed specifically for license plate recognition (LPR), number plate recognition (ANPR), and vehicle make/model/color identification. Engineered for low- to moderate-speed traffic environments, it features Wisenet Road AI with onboard CNN analytics for enhanced plate accuracy across multiple regions and conditions.
This TAA-compliant camera delivers exceptional clarity with 4K UHD resolution, strong low-light performance down to 0.05 Lux, and IR illumination up to 30 meters. It includes a motorized varifocal P-iris lens, 2.2x optical zoom, and advanced imaging technologies like 120 dB WDR, SSNR noise reduction, and built-in gyro stabilization.
A pre-installed 32GB microSD card enables edge recording for up to 10,000 plate/vehicle image captures. Wisenet Road AI provides comprehensive detection capabilities including LPR, MMCR, allow/deny list management, and smart search by country, plate, brand, model, and color—ideal for parking management, site security, access control, and traffic applications.
| Category | Specification |
|---|---|
| SKU | PNO-A9081RLP/KAP |
| Camera Type | 4K LPR/ANPR/MMCR IR Bullet Camera |
| Color | Dark Gray |
| Compliance | TAA Compliant |
| Image Sensor | 1/1.8" CMOS |
| Max Resolution | 3840 × 2160 (4K UHD) |
| Supported Resolutions | 4K, 3072×1728, 2688×1520, 2592×1944, 2560×1440, 2048×1536, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max Frame Rate | 30fps (H.265/H.264/MJPEG) |
| Minimum Illumination | 0.05 Lux (Color), 0 Lux (B/W, IR On) |
| Lens Type | Motorized Varifocal P-iris (IR-corrected) |
| Focal Length | 4.5–10 mm |
| Optical Zoom | 2.2x |
| Max Aperture | F1.6 (Wide), F2.65 (Tele) |
| Field of View | Horizontal 101.4°–45.5°, Vertical 53.6°–25.5°, Diagonal 120.7°–52.3° |
| IR Illumination | WiseIR up to 30 m (98.42 ft) |
| WDR | 120 dB |
| Noise Reduction | SSNR V |
| Image Stabilization | Digital with built-in gyro sensor |
| Day/Night | Auto (ICR) |
| Motion Detection | 8 polygonal zones |
| Privacy Masking | 6 rectangular zones |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor |
| Shutter Speed | 1/5–1/12,000 sec |
| Video Rotation | Flip, Mirror, Hallway View (90°/270°) |
| Analytics Events | Defocus, Motion, Tampering, Audio detection, Sound classification, Shock detection |
| Smart Codec | WiseStream II |
| Video Codecs | H.265, H.264 (Main/High), MJPEG |
| Audio | Audio In (mic/line), Audio Out (line), G.711, G.726, AAC-LC |
| Streaming | Up to 3 profiles, up to 6 simultaneous users |
| Network | IPv4/IPv6, TCP/IP, UDP, RTP, RTSP, NTP, HTTP/HTTPS, SSL/TLS, DHCP, FTP, SMTP, IGMP, SNMP v1/v2c/v3, QoS, UPnP, Bonjour, LLDP, SRTP |
| API / Integration | ONVIF S/G/T, SUNAPI, JSON over HTTP, Wisenet WAVE, SSM, Genetec, Milestone |
| Road AI Features | LPR/ANPR, Make/Model/Color Recognition, Allow/Deny Lists, Smart Search by plate/country/model/color |
| Vehicle Attribute DB | 100+ makes, 4700+ models, 11 colors |
| Lane Coverage | 1–3 lanes depending on region (NA/EU) |
| Capture Speed Range | Up to 110 km/h (region-specific) |
| Edge Storage | 1× microSD slot (32GB card pre-installed) |
| RAM / Flash | 4GB RAM / 512MB Flash |
| Power Input | PoE+ (IEEE 802.3at) or 12VDC |
| Power Consumption | PoE+: Max 20W (typ. 17W), 12VDC: Max 18W (typ. 16W) |
| Operating Temperature | –40°C to +55°C |
| Humidity | 0–90% RH (non-condensing) |
| Material | Aluminum |
| Dimensions | Ø91.0 × 368.6 mm (without sunshield) |
| Weight | 2.48 kg (5.47 lb) |
