Description

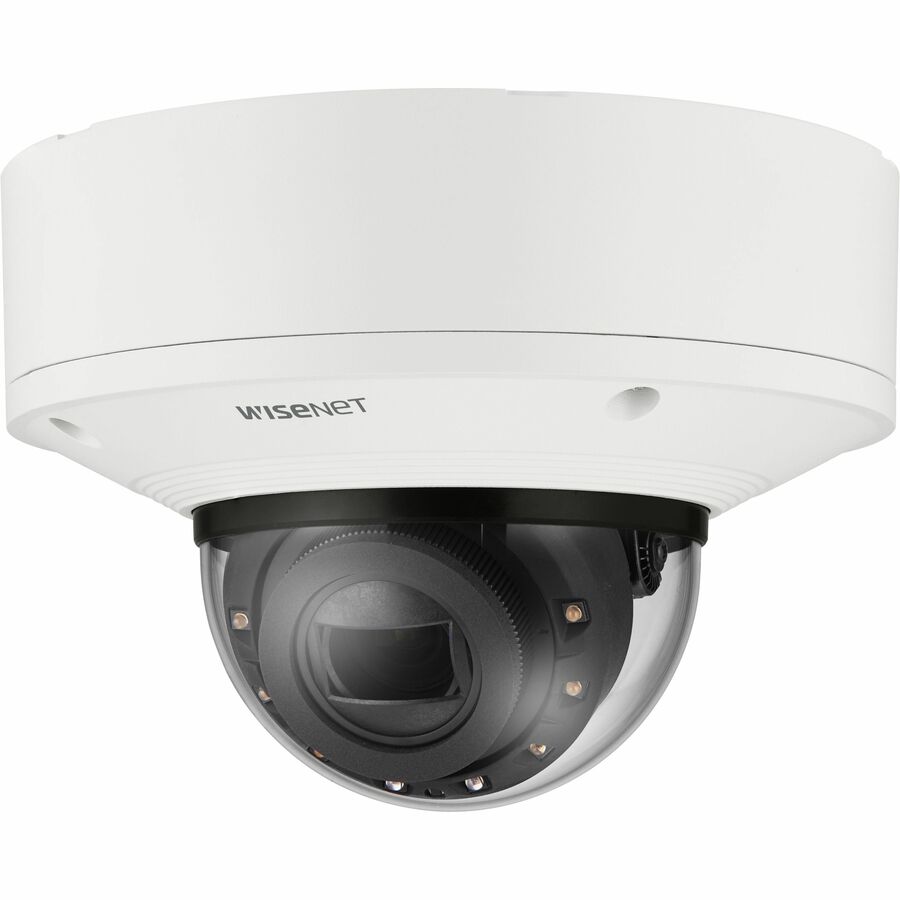

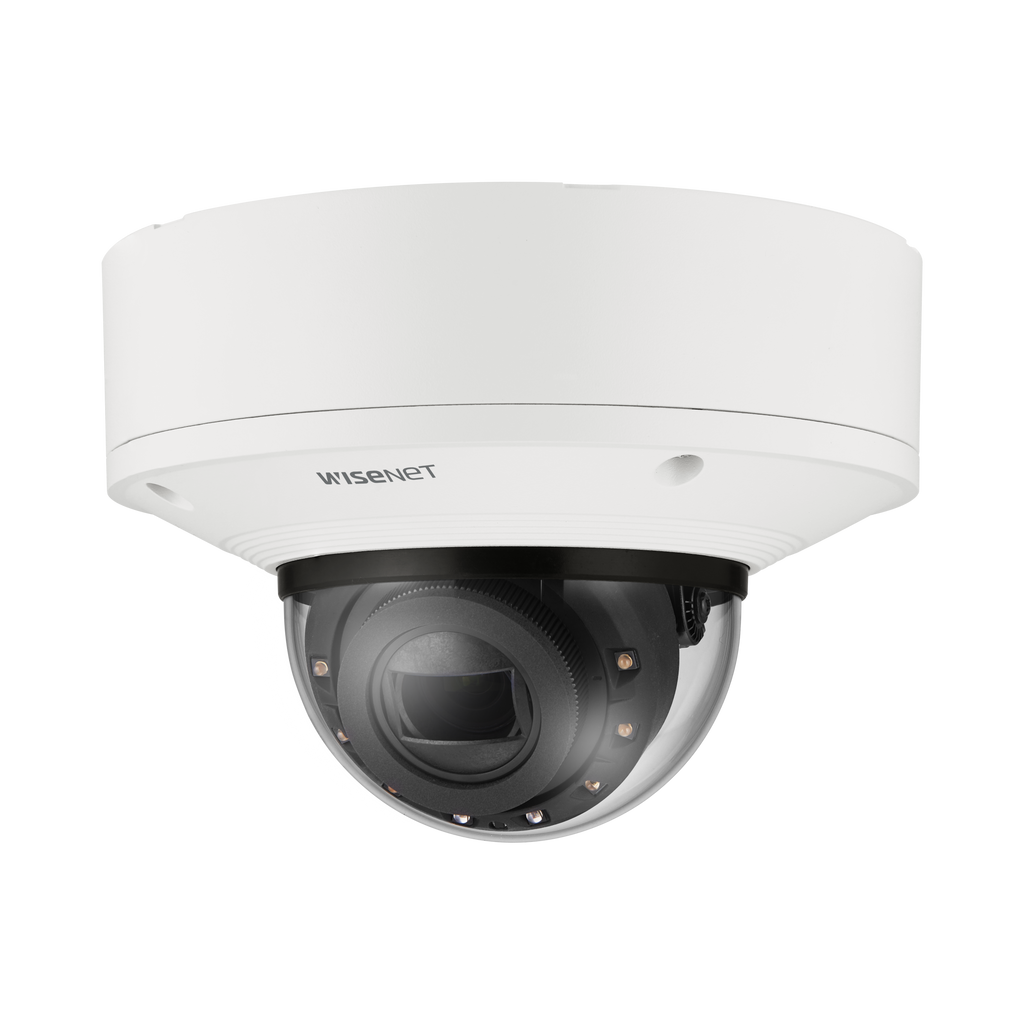

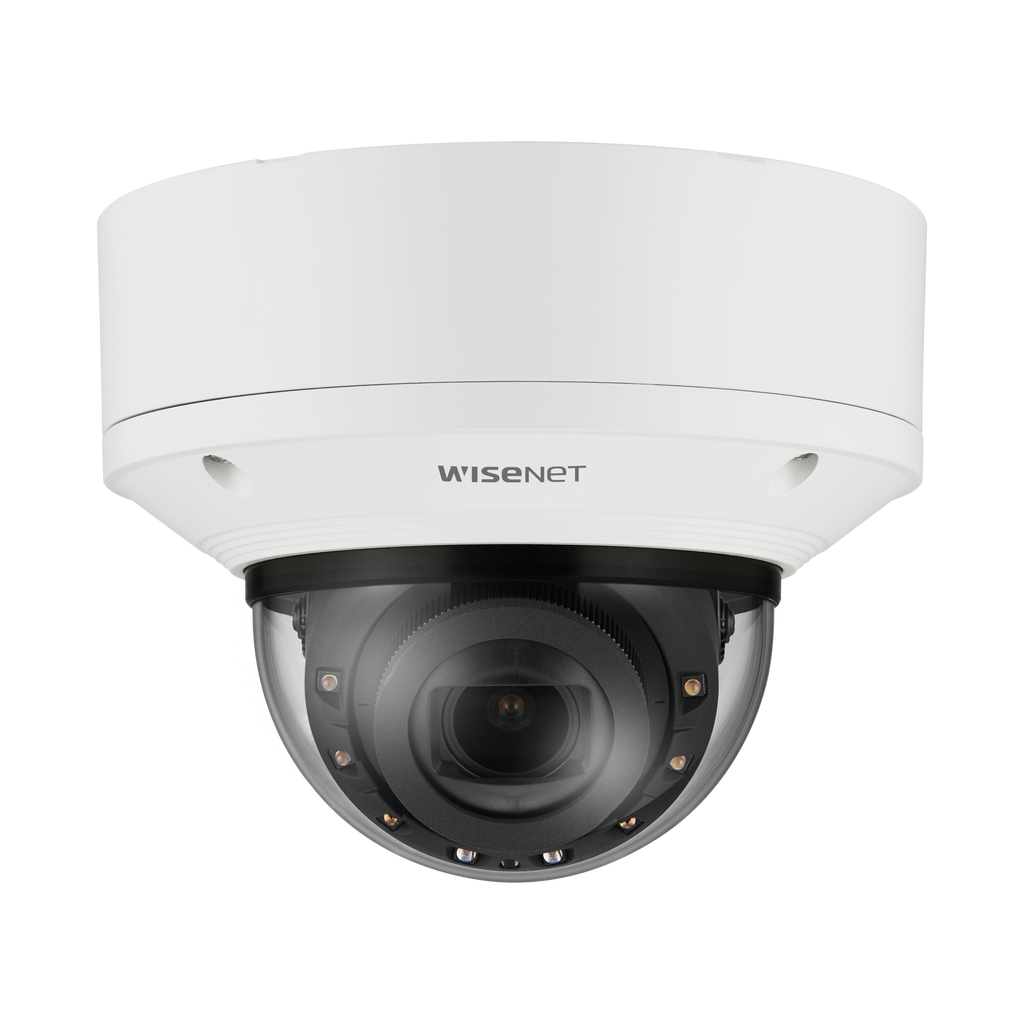

The Wisenet XNV-9083R is a high-performance 4K AI-powered outdoor vandal-resistant dome camera designed for mission-critical surveillance environments. Built with a 1/1.8" CMOS sensor, advanced AI engine, and a 4.4–9.3mm motorized varifocal P-iris lens, it delivers exceptional clarity, accurate object detection, and reliable performance in diverse lighting conditions.
Equipped with WiseIR for up to 50m (164 ft) IR illumination, extremeWDR at 120 dB, and low-light sensitivity down to 0.04 Lux, the camera ensures detailed imaging day or night. Its AI-driven analytics classify people, faces, vehicles, license plates, and more, enabling precise alerts and efficient forensic search.
Engineered for durability, the XNV-9083R features an IK10+ impact rating and weather protection levels IP66/IP67/IP6K9K with NEMA 4X compliance, making it suitable for challenging outdoor installations. With support for two microSD card slots, H.265/H.264/MJPEG compression, WiseStream III optimization, and extensive security hardening, this dome camera delivers reliable, modern, and secure surveillance for enterprise environments.
| Category | Specifications |
|---|---|
| SKU | XNV-9083R/KEX |
| Image Sensor | 1/1.8" CMOS |
| Resolution | Up to 4K (3840×2160) |
| Lens | 4.4–9.3mm motorized varifocal, P-iris (IR corrected), 2.1x optical zoom |
| Field of View | H: 113°–47° / V: 58°–26° / D: 138°–54° |
| Min. Illumination | Color: 0.04 Lux (F1.3, 1/30sec, 30IRE) / B/W: 0.004 Lux |
| IR Illumination | WiseIR, up to 50m (164 ft), 850nm |
| Frame Rate | 30fps (H.265/H.264) |
| WDR | ExtremeWDR 120 dB |
| Day/Night | Auto (ICR) |
| Video Compression | H.265, H.264 (Main/Baseline/High), MJPEG |
| Smart Codec | WiseStream III |
| AI Analytics (NPU) | Object detection: person, face, vehicle (car/bus/truck/motorcycle/bicycle), license plate; IVA: virtual line, area, intrusion, enter/exit, loitering, direction |
| Standard Analytics | Motion detection, defocus, tampering, fog detection, shock detection, appear/disappear, audio detection & classification |
| Business Intelligence | People counting, queue management, heatmap, vehicle counting |
| Audio I/O | Audio in (mic/line selectable), audio out (line out) |
| Alarm I/O | 2 configurable I/O ports |
| Network | 10/100/1000BASE-T, IPv4/IPv6, RTP/RTSP, HTTPS, TLS, MQTT, ONVIF S/G/T/M |
| Security Features | Secure boot, TP M 2.0 (FIPS 140-2 Level 2), encrypted firmware, AES-256 SD encryption, digest authentication |
| Edge Storage | Dual microSD slots, up to 1TB (2TB total with OnCloud-certified cards) |
| Operating Temperature | −50°C to +60°C (−58°F to +140°F) |
| Ingress & Impact Rating | IP66/IP67/IP6K9K, IK10+, NEMA 4X |
| Power | PoE+ (IEEE 802.3at) or 12VDC; Max 22.5W (PoE) |
| Dimensions | Ø180 × 125 mm (7.09 × 4.92 in) |
| Weight | 1.9 kg (4.19 lb) |
| Color / Material | White (RAL9003) / Aluminum with hard-coated dome |
