Description

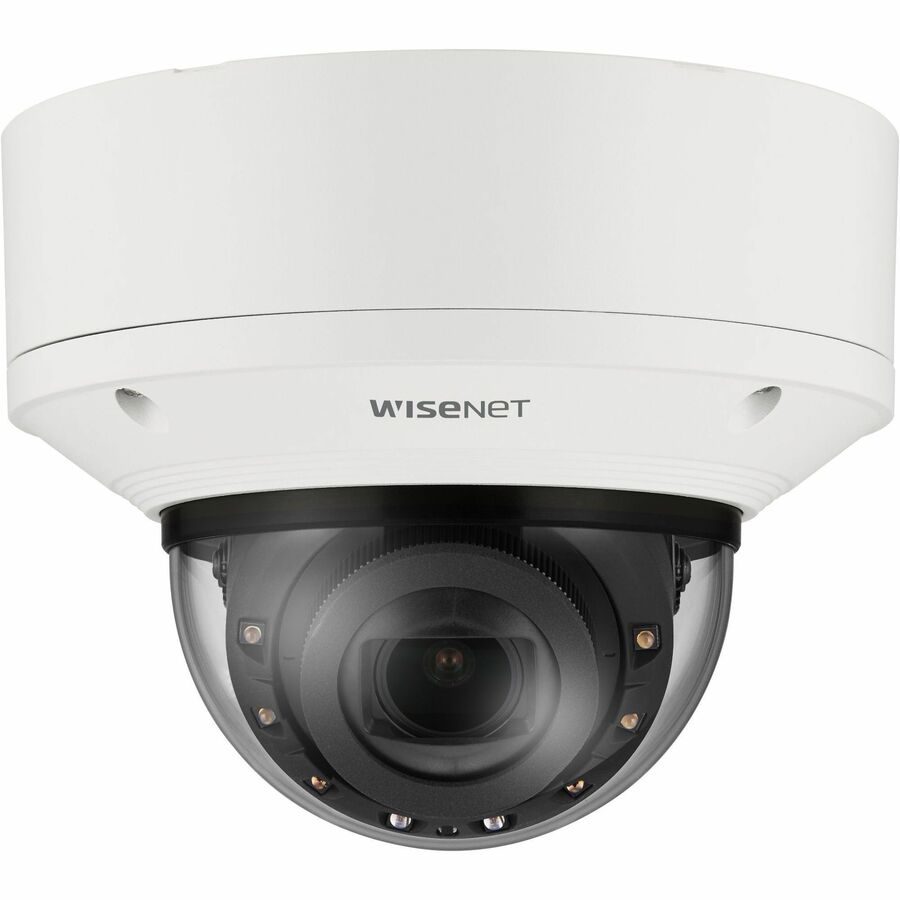

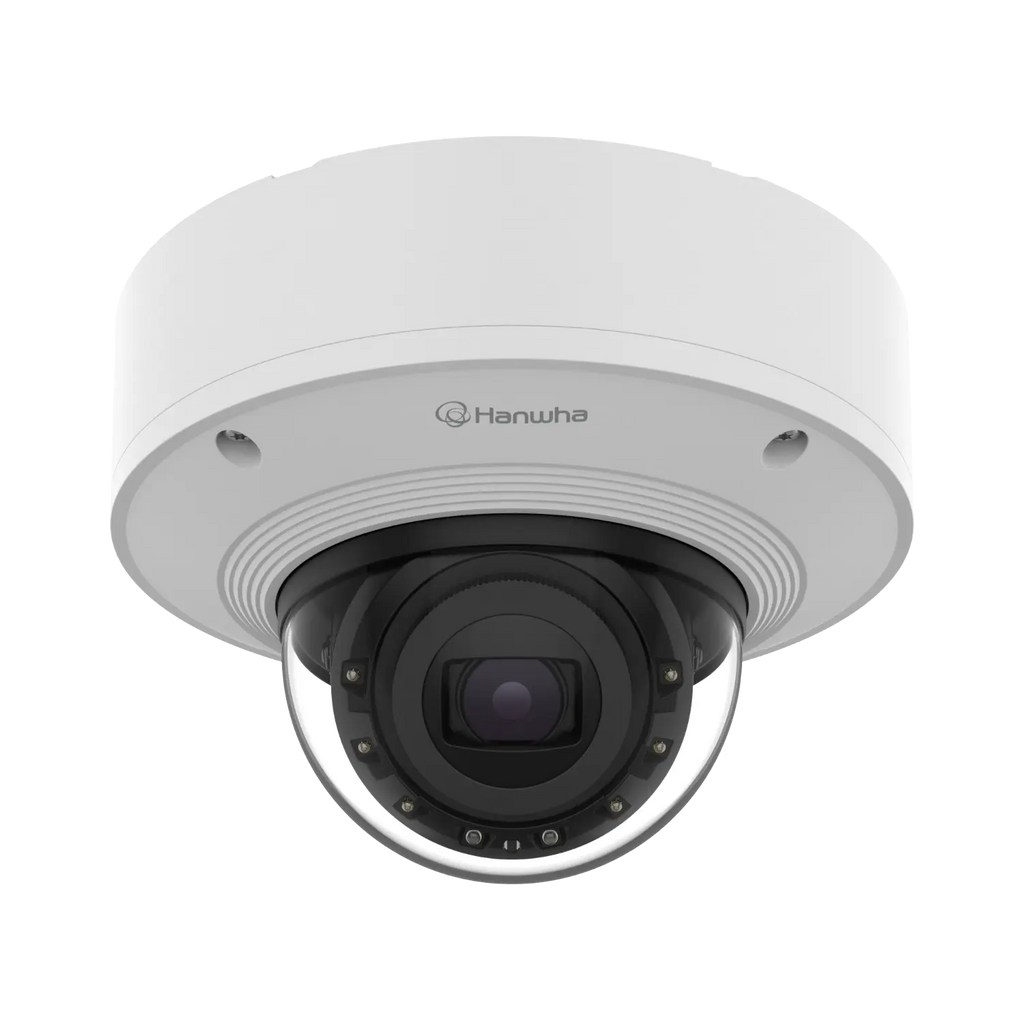

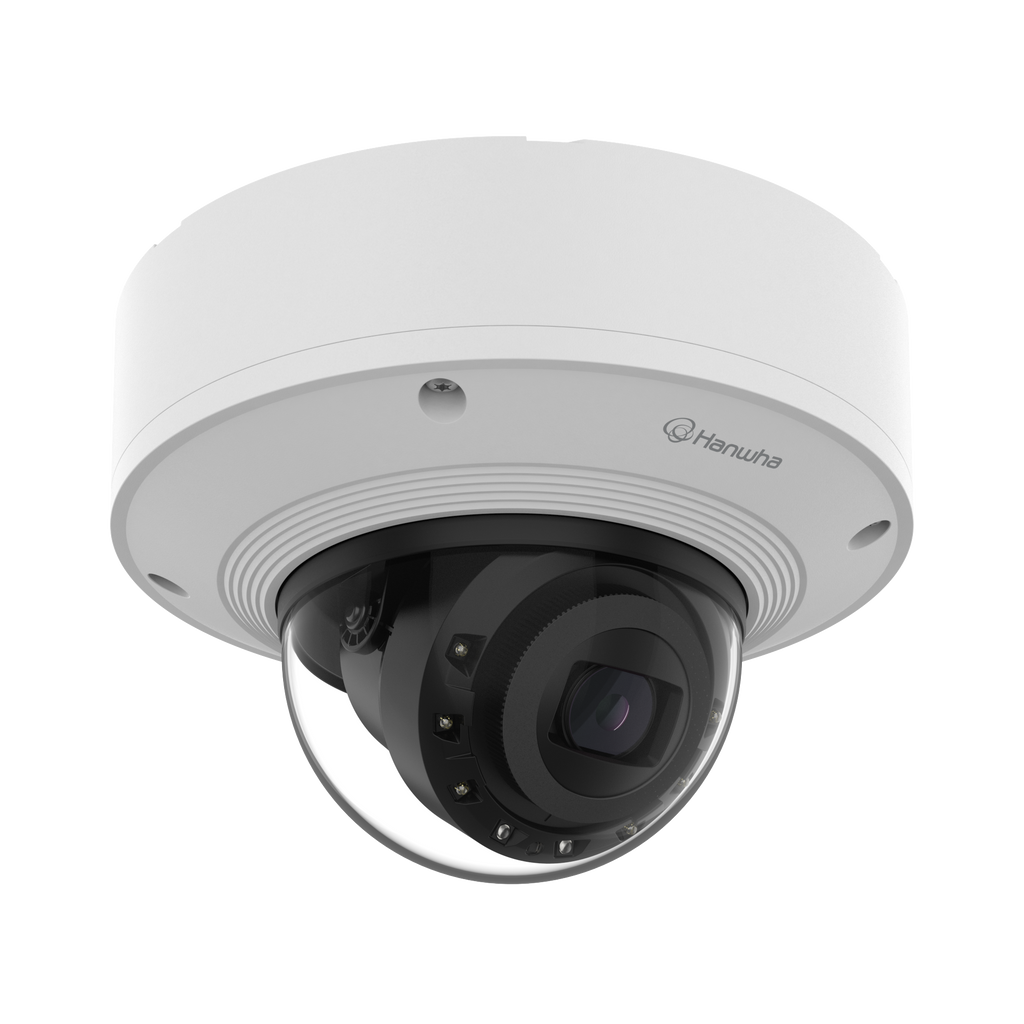

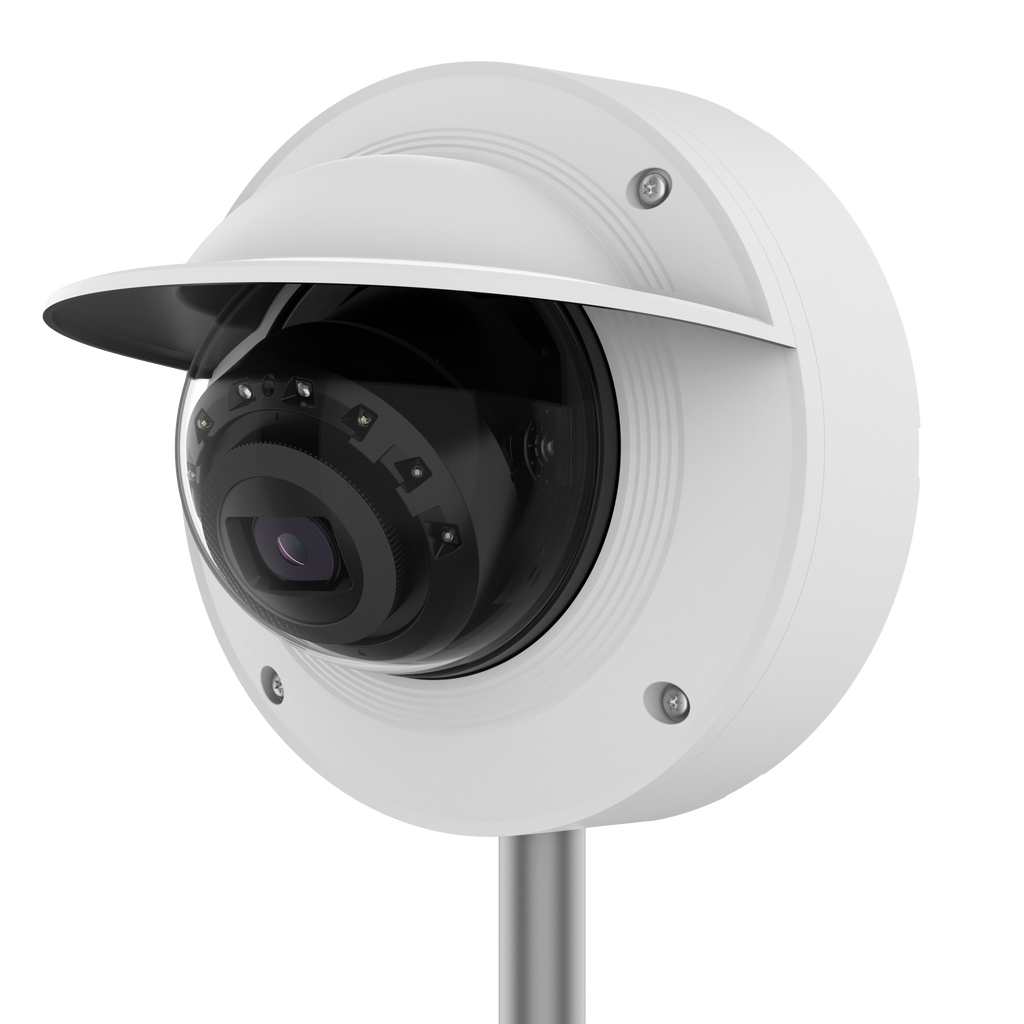

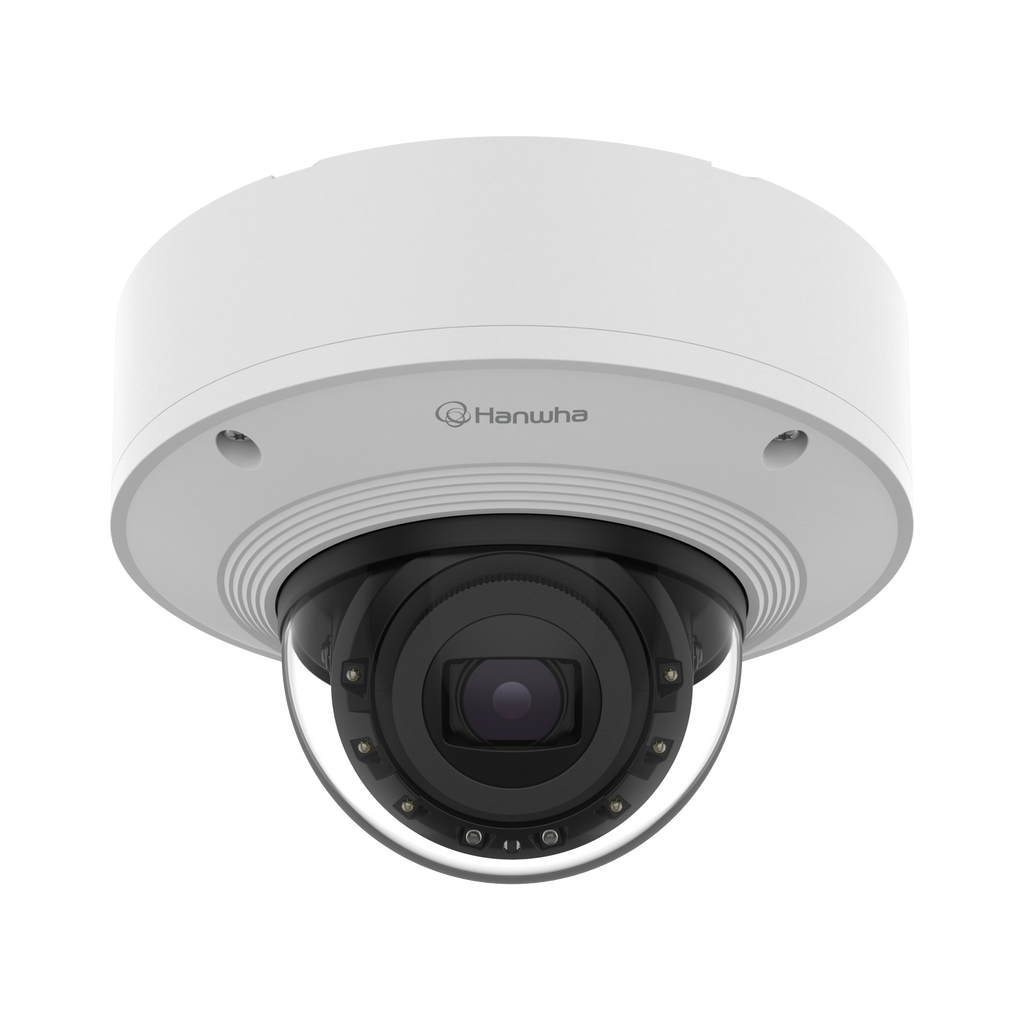

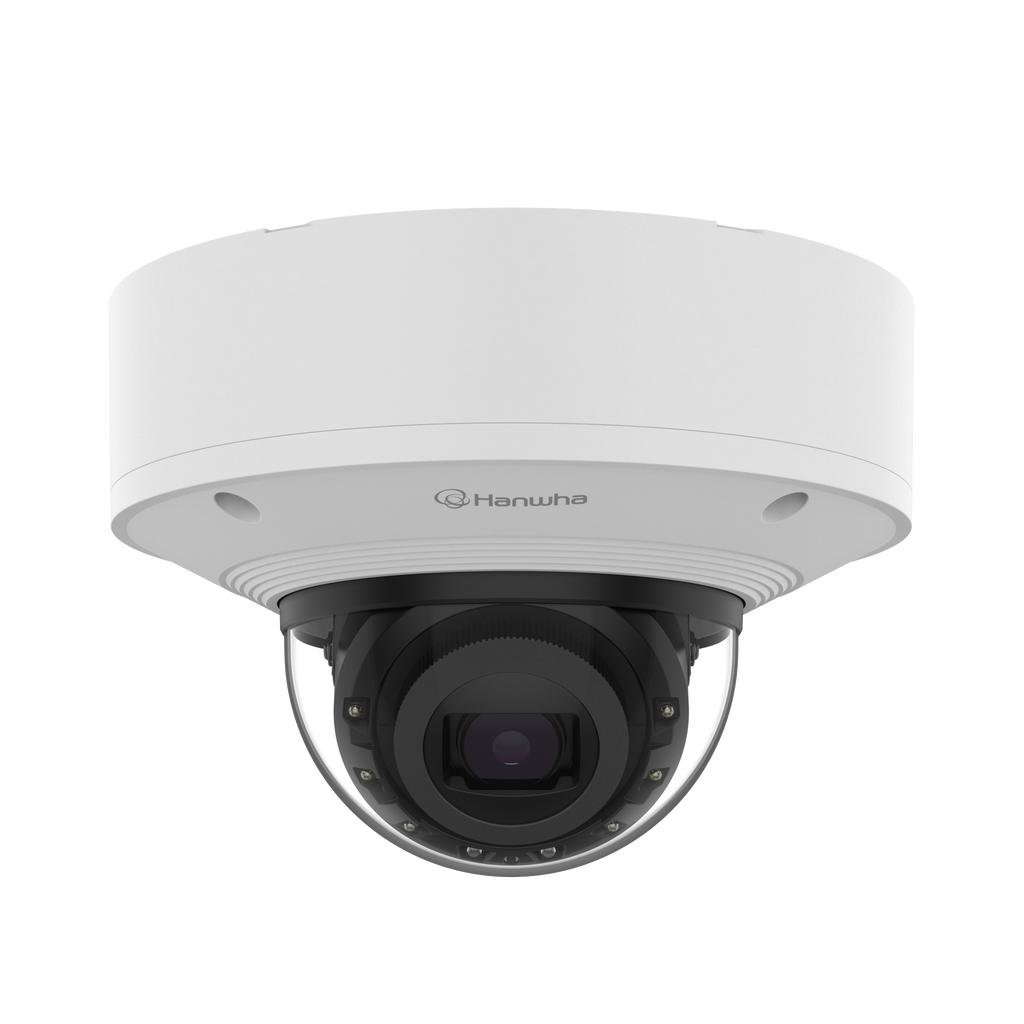

The Wisenet XNV-8093R is a high-performance 6MP outdoor AI dome camera engineered for demanding security environments. Built on Hanwha’s advanced AI engine, it delivers precise classification of people, faces, vehicles, and license plates, dramatically reducing false alarms from irrelevant motion such as shadows, foliage, or small animals. This empowers operators to focus on real events and perform fast, efficient forensic searches.
With AI-powered image enhancement tools such as WiseNR II for intelligent noise reduction and Preferred Shutter Control for motion-optimized clarity, the camera consistently produces clean, detailed footage in challenging low-light or dynamic scenes. WiseStream III further optimizes bandwidth by allocating maximum quality to detected objects without sacrificing overall image performance.
Designed for harsh environments, the camera features a rugged IK10+ vandal-resistant housing and is fully rated IP66/IP67/IP6K9K and NEMA 4X, ensuring long-term reliability in extreme weather conditions. Its 70m IR illumination, motorized 10.9–29mm varifocal lens, and 120 dB extremeWDR technology provide versatile deployment options for wide-area monitoring, perimeter protection, or critical infrastructure surveillance.
| Category | Details |
|---|---|
| SKU | XNV-8093R/KEX |
| Resolution | 6MP |
| Image Sensor | 1/1.8" CMOS |
| Minimum Illumination | 0.06 Lux (Color, F1.7, 1/30s, 30IRE), 0 Lux (IR on) |
| Lens | 10.9–29mm motorized varifocal, 2.7x optical zoom |
| Aperture | F1.7 (Wide), F1.73 (Tele) |
| IR Illumination | WiseIR, up to 70m (229.66 ft) |
| Frame Rate | Max 30 fps (H.265/H.264) |
| WDR | extremeWDR (120 dB) |
| Day/Night | ICR (Auto) |
| AI Capabilities | Object classification (person, face, vehicle types, license plate) |
| AI Analytics | Virtual line/area, intrusion, loitering, enter/exit, direction, motion detection |
| Additional Analytics | Defocus, tampering, fog detection, audio detection, shock detection, appear/disappear |
| Video Compression | H.265/H.264 (Main/High/Baseline), MJPEG |
| Smart Codec | WiseStream III |
| Edge Storage | Dual microSD/SDHC/SDXC up to 1TB each (2TB total on OnCloud models) |
| Audio I/O | Mic/Line-in selectable, Line-out |
| Alarm I/O | 2 configurable ports |
| Network Interface | RJ-45 (10/100/1000BASE-T) |
| Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, HTTP/HTTPS, SNMP, ONVIF S/G/T/M |
| Operating Temperature | –50°C to +55°C (–58°F to +131°F) |
| Ingress/Rugged Rating | IP66/IP67/IP6K9K, NEMA 4X, IK10+ |
| Power | PoE+ (IEEE 802.3at) or 12VDC |
| Power Consumption | Max 22.5W (PoE+), Max 20W (12VDC) |
| Housing Material | Aluminum, RAL9003 White |
| Dimensions | Ø180 × 125 mm (7.09 × 4.92 in) |
| Weight | 1.9 kg (4.19 lb) |
