Description
Make the most of limited installation space with the Christie Captiva DWU500S Black, a high-brightness ultra-short-throw laser projector built for classrooms, boardrooms, and collaborative environments. Its 0.25:1 fixed ultra-short-throw lens delivers large 130–150-inch WUXGA images from close range, helping reduce shadows and preserve valuable room space.
With 5,000 ISO lumens, 4,500 ANSI lumens, solid-state laser illumination, and up to 20,000 hours of operation, the Captiva DWU500S provides dependable, low-maintenance performance for demanding professional AV installations. Flexible connectivity includes dual HDMI, VGA, Ethernet, RS-232, and compatibility with Crestron RoomView, AMX, and PJLink control systems.
- WUXGA 1920 × 1200 native resolution
- 5,000 ISO lumens / 4,500 ANSI lumens
- 0.25:1 ultra-short-throw lens
- Solid-state laser illumination with up to 20,000-hour life
- HDMI, VGA, Ethernet, RS-232, and 3D support
- Black finish
Technical specifications
| Specification | Details |
|---|---|
| Manufacturer | Christie |
| Model | Captiva DWU500S WW Black |
| SKU | 171-037101-02 |
| Display technology | 1-chip DLP, 0.67 in. DMD |
| Native resolution | WUXGA, 1920 × 1200 |
| Aspect ratio | 16:10 |
| Brightness | 5,000 ISO lumens / 4,500 ANSI lumens |
| Contrast ratio | 1,800:1 full on/off |
| Light source | Solid-state laser |
| Light-source life | Up to 20,000 hours |
| Throw ratio | 0.25:1 |
| Recommended image size | 130–150 in. diagonal |

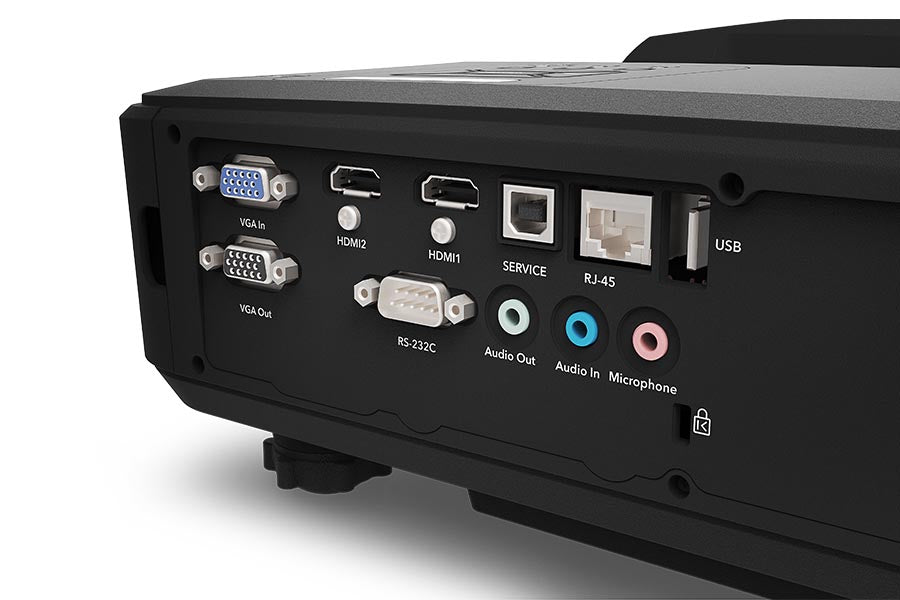

| Inputs | 2 × HDMI, 1 × VGA, VGA audio, microphone input, USB-A power |
| Outputs | VGA monitor out, 3.5 mm audio out, 10 W speaker |
| Control / networking | Ethernet, RS-232, keypad; Crestron RoomView, AMX, PJLink compatible |
| 3D support | HDMI 1.4a and DLP Link formats |
| Noise level | 36 dBA standard / 30 dBA Eco |
| Power | 100–240 VAC, 50/60 Hz; 350 W max |
| Dimensions (W × D × H) | 15.08 × 12.50 × 3.46 in. |
| Weight | 12.79 lb / 5.8 kg |
| Finish | Black |
