Description

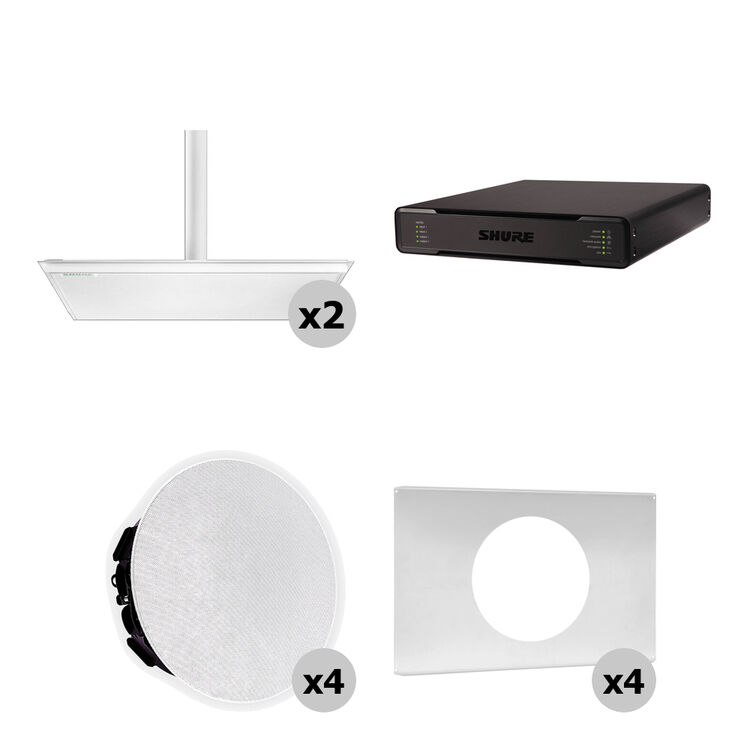

The Shure 920X W-V Large Conferencing Room Bundle is a complete, enterprise-grade audio solution engineered for large meeting rooms and conferencing spaces. This fully integrated system combines dual MXA920-S ceiling microphone arrays, a P300 IntelliMix audio processor, and four MXN5W-C networked ceiling speakers to deliver exceptional speech clarity, intelligent audio capture, and seamless system control.
Designed for modern collaboration environments, the MXA920-S arrays feature Automatic Coverage and Steerable Coverage technologies, enabling precise voice capture across wide areas without complex setup. With eight configurable pickup lobes per array and onboard IntelliMix DSP, the system ensures clear, natural conversations by reducing noise, echo, and unwanted audio artifacts.
The P300 IntelliMix processor serves as the central hub, offering advanced DSP processing, acoustic echo cancellation, and flexible connectivity including Dante, USB, analog, and mobile integration. Combined with the MXN5W-C Dante-enabled ceiling speakers, the system provides consistent, intelligible audio distribution throughout the room using a single network cable for power, audio, and control.
Pre-configured for efficiency and built on Shure’s secure audio ecosystem, this bundle enables quick deployment, simplified management, and scalable performance for enterprise conferencing, training rooms, and executive boardrooms.
| Specification | Details |
|---|---|
| System Type | Large Room Audio Conferencing Bundle |

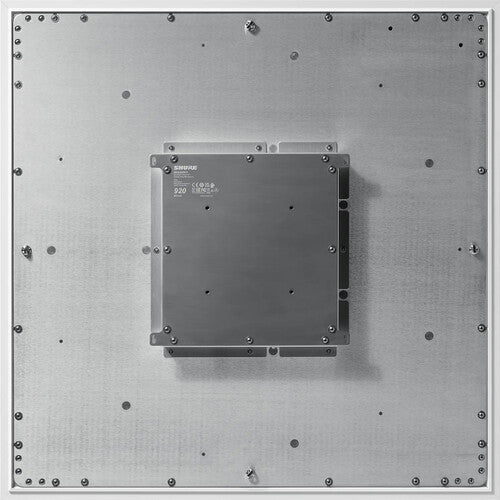

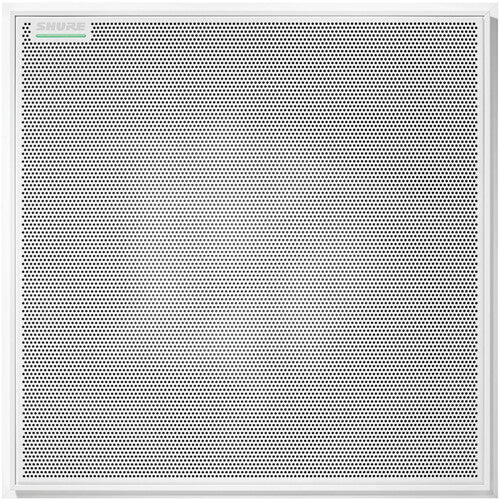

| Included Microphones | 2 x MXA920-S Ceiling Array Microphones |
| Microphone Element Type | 8 x MEMS per array |
| Microphone Coverage | Up to 30 x 30 ft per array |
| Pickup Technology | Automatic Coverage and Steerable Coverage (8 lobes per array) |
| Frequency Response (Mic) | 125 Hz to 20 kHz |
| Maximum SPL | 95.7 dB |
| Dynamic Range | 77.5 dB |
| DSP (Microphones) | IntelliMix DSP (AEC, noise reduction, AGC, automixing) |
| Audio Processor | P300 IntelliMix Conferencing Processor |
| DSP (Processor) | Acoustic Echo Cancellation, Noise Reduction, Matrix Mixing |

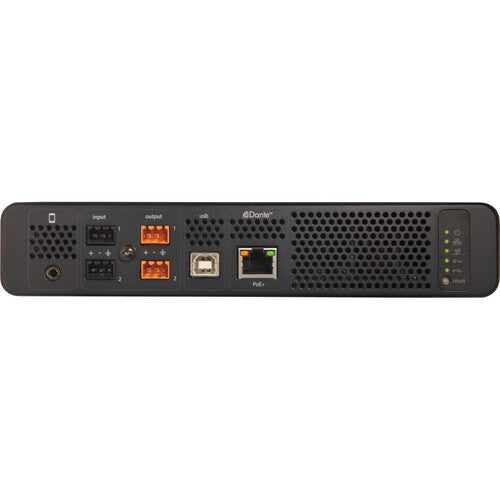

| Processor Connectivity | Dante (10 in / 8 out), USB Type-B, Analog Block I/O, 3.5 mm |
| Network Audio | Dante / AES67 |

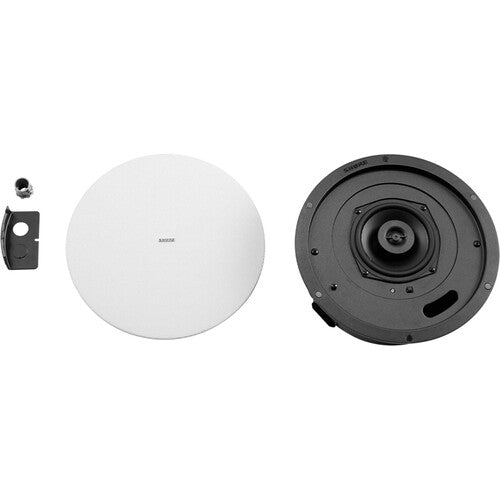

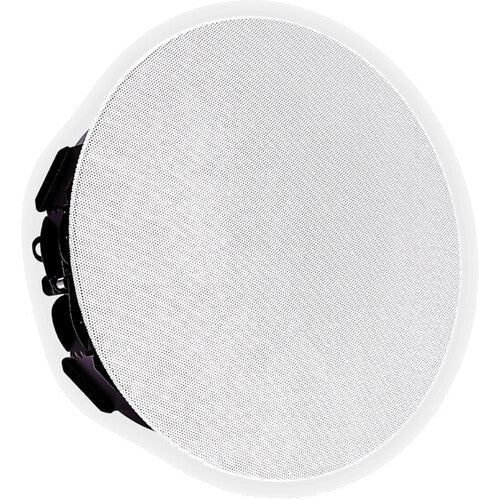

| Speakers Included | 4 x MXN5W-C Networked Ceiling Speakers |
| Speaker Type | 2-way active speaker with integrated amplifier |
| Speaker Frequency Response | 120 Hz to 20 kHz |
| Speaker Driver | 5.25" woofer |
| Speaker DSP | EQ, delay, limiter, signal generator |
| Audio Outputs | Dante network audio |
| Power Requirements | PoE / PoE+ (single cable per device) |
| Mounting Accessories | 4 x Tile Bridges for Speakers |
| System Connectivity | Dante, USB, Analog, Mobile Device Input |
| Encryption | AES-256 Shure Audio Encryption |
| Software Compatibility | Shure Designer, SystemOn Audio Management |

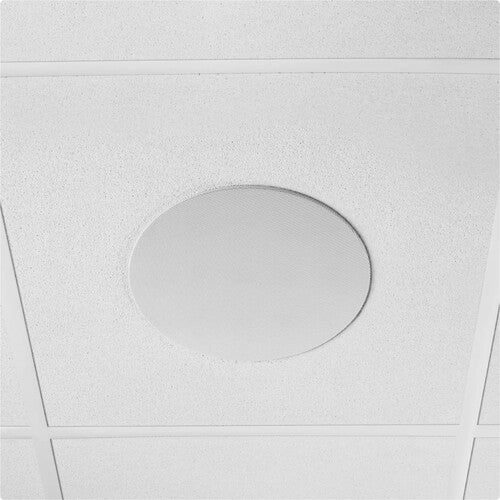

| Installation Type | Drop-ceiling mounted microphones and speakers |
| Color | White |
| Room Size Suitability | Large conference rooms and boardrooms |
| Included Accessories | Mounting hardware, USB cable, grille covers, conduit clamps |
| Warranty | Limited 2-Year Manufacturer Warranty |
