Description

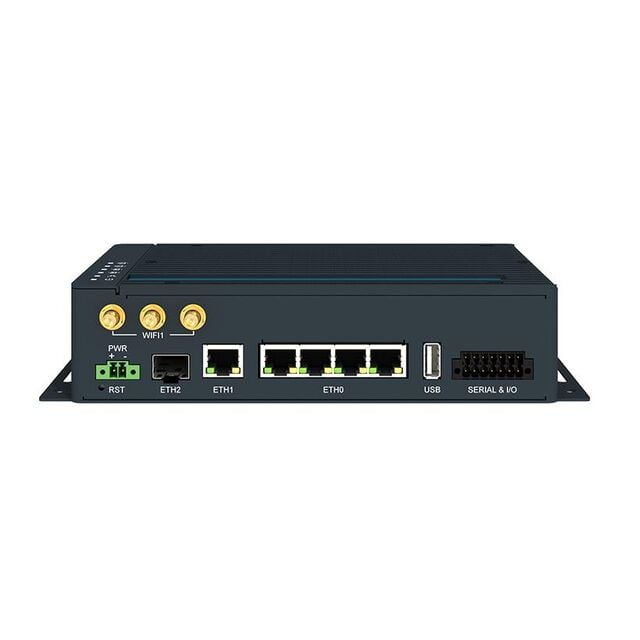

The Advantech ICR-4401WS is a high-performance industrial wired router and edge computing gateway designed for mission-critical IIoT and industrial networking environments. Built on a powerful quad-core ARM Cortex-A72 platform with integrated TPM 2.0 security, it delivers fast, reliable connectivity for industrial automation, transportation systems, security camera networks, and remote infrastructure monitoring.
This model includes dual-band Wi-Fi (802.11ac) with 3×3 MIMO support, along with 5 Gigabit Ethernet ports, an SFP cage supporting up to 10 Gbps modules, and a wide range of industrial interfaces including RS232, RS485, CAN Bus, digital I/O, and USB host. With rugged IP30 metal enclosure and support for Router Apps, Docker, and Node-RED, the ICR-4401WS is ideal for advanced edge deployments requiring secure computing power in harsh environments.
| Specification Category | Details |
|---|---|
| Product Type | Industrial Edge Computing Router & Gateway |
| Brand | Advantech |
| Model | ICR-4401WS |
| SKU | ICR-4401WS |
| CPU | Quad-Core ARM Cortex-A72, 1200 MHz |
| RAM | 1 GB (1024 MB) |
| Storage | 4 GB eMMC + MicroSD Slot |
| Ethernet Ports | 5× Gigabit Ethernet (10/100/1000 Mbps) |
| PoE Support | Optional 4× PoE+ PSE (IEEE 802.3at/af) |
| SFP Expansion | 1× SFP cage (up to 10 Gbps) |
| Wi-Fi Included | Yes – Dual-Band 802.11ac (3×3 MIMO) |
| Wi-Fi Data Rate | Up to 600 Mbps (2.4 GHz) / 1300 Mbps (5 GHz) |
| Serial Interfaces | 1× RS232, 1× RS485 |
| Industrial Bus | 1× CAN Bus |
| Digital I/O | 2× Digital Inputs, 2× Digital Outputs |
| USB Port | 1× USB 2.0 Host |
| Security | TPM 2.0, Firewall, VPN, HTTPS/SSH |
| Operating System | ICR-OS (Linux-based) |
| Edge Software Support | Router Apps, Python, Docker, Node-RED |
| Power Input | 9–48 V DC |
| Operating Temperature | -40 to +75 °C |
| Enclosure Rating | IP30 Rugged Metal Housing |
| Mounting Options | Wall Mount (DIN Rail Optional) |
| Dimensions | 47 × 109 × 195 mm |
| Weight | Approx. 1350 g |
