Description

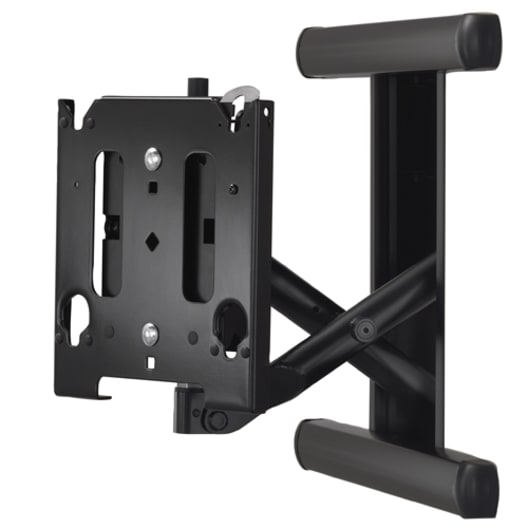

The Chief MIWRFUB Medium Low-Profile In-Wall Swing Arm Mount is engineered to create a clean, recessed display installation while maintaining exceptional flexibility and ease of adjustment. Designed for flat panel displays ranging from 30″ to 50″, this universal in-wall mount delivers a sleek, low-profile appearance that keeps hardware hidden behind the screen.
Pre-assembled for fast installation, the MIWRFUB features an in-wall swing arm with up to 9.9″ of extension, allowing smooth articulation and up to 37° of left-to-right swivel for optimal viewing angles. Fingertip tilt adjustment and post-installation leveling ensure precise alignment even after the display is mounted. Integrated cable management keeps wiring concealed for a polished, professional finish, making this mount ideal for residential, corporate, education, and commercial AV environments.
| Category | Specification |
|---|---|
| Mount Type | Low-profile in-wall swing arm mount |
| Compatible Screen Size | 30″–50″ flat panel displays |
| Weight Capacity | Supports displays up to 125 lb (56.7 kg) |
| Extension Range | Up to 9.9″ from the wall |
| Lateral Shift | 127 mm (5 in) |
| Tilt Range | +2° / −15° fingertip tilt |
| Swivel | Up to 37° left/right |
| Minimum Depth | 4.32 cm (1.7 in) |
| VESA Mounting Pattern | 100 × 100 mm up to 709 × 431 mm |
| Orientation Support | Landscape and portrait orientations |
| Interface | Universal interface included |
| Post-Installation Leveling | Integrated roll adjustment for final leveling |
| Cable Management | Built-in cable management for a clean installation |
| Color | Black |
| Application | In-wall display mounting |
| Solution Type | Universal |
| Compliance | Not TAA compliant |
| Shipping Dimensions | 31.5″ × 12.5″ × 9.5″ (800.1 × 317.5 × 241.3 mm) |
| Shipping Weight | 23.13 kg (51 lb) |
| UPC | 841872110646 |
