Description

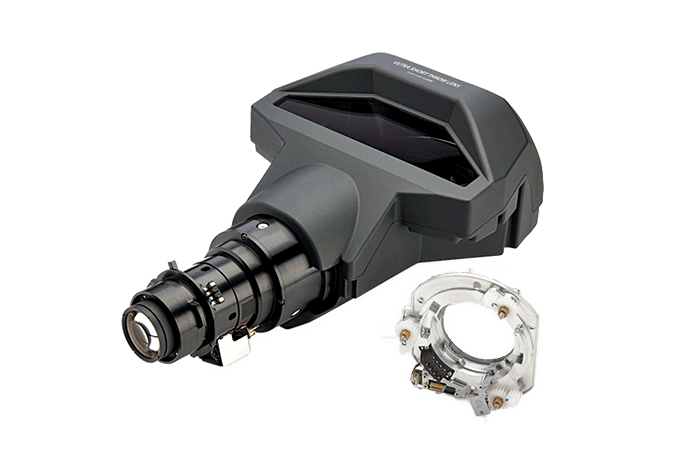

The Christie 0.36:1 Ultra Short Throw Lens is designed for GS Series 1DLP projectors, enabling large, high-impact images from extremely short projection distances. Ideal for environments where installation space is limited, this lens allows projectors to be positioned close to the screen while still producing expansive, high-quality visuals.
Engineered for professional AV applications, the lens delivers a precise 0.36:1 throw ratio and optimized optical performance for WUXGA and 1080p 1DLP projection systems. Its advanced optical design ensures consistent clarity, accurate geometry, and reliable performance across large screen sizes.
With a fixed ultra short throw configuration and precision lens assembly, the Christie 0.36:1 lens is suited for immersive installations, digital signage, museums, simulation environments, and other professional projection deployments that require large images in compact spaces.
For optimal performance, this lens is recommended for Christie GS Series projectors operating up to 11,000 ISO lumens.
| Specification | Details |
|---|---|
| Brand | Christie |
| Product Type | Ultra Short Throw Projector Lens |
| Throw Ratio | 0.36:1 |
| Lens Type | Fixed Ultra Short Throw |
| Zoom Capability | Fixed lens with no zoom functionality |
| Focal Length | 9.49 – 9.55 mm |
| F Number | Approximately F/2.0 |
| Lens Configuration | 23 elements in 23 groups |
| Compatible Projector Series | Christie GS Series projectors |
| Compatible Models | Christie 630-GS, 635-GS, 700-GS, 850-GS, 1075-GS |
| Supported Imaging Technology | 1DLP projection systems |
| Supported Chip Sizes | 0.67" WUXGA 1DLP and 0.65" 1080p 1DLP |
| Recommended Screen Size | 120" – 350" diagonal (±3% tolerance) |
| Recommended Brightness Range | Best suited for projectors up to 11,000 ISO lumens |
| Net Weight | 3.0 kg |
| Application | Professional AV installations, digital signage, simulation, museums, immersive environments |
| Installation Benefit | Enables large image projection from extremely short distances |
