Description

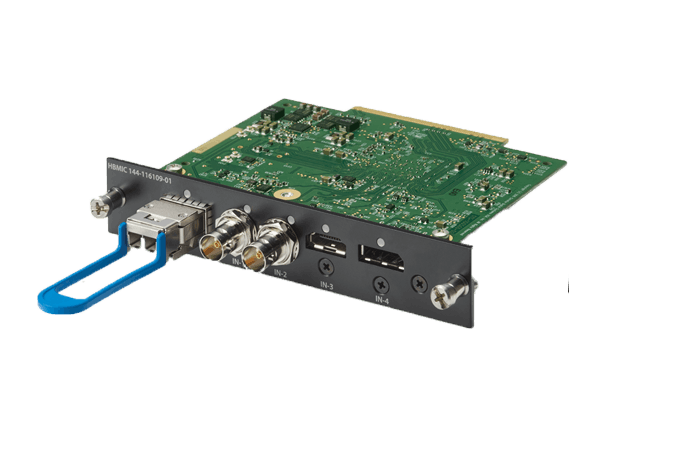

The Christie High Bandwidth Multi-Input Card (HBMIC) expands the connectivity capabilities of compatible Christie projection systems by supporting high-bandwidth video sources and advanced signal distribution. Designed for professional AV environments, this input card enables reliable 4K 60Hz signal transmission through a single cable while offering a versatile range of digital and broadcast-grade input formats.
With support for 12G-SDI, HDMI 2.0, DisplayPort 1.2, and Christie Link fiber connectivity, the HBMIC allows system integrators and operators to connect multiple high-resolution sources with minimal latency and rapid input switching. Each input supports preview functionality, enabling operators to quickly monitor and select sources without interrupting ongoing presentations.
The integrated Christie Link fiber connection provides direct compatibility with a Christie Link Transmitter, enabling long-distance, high-bandwidth signal transport over fiber for complex installations such as large venues, simulation environments, and visualization centers.
Designed for seamless integration, the HBMIC installs directly into compatible Christie projector platforms including Boxer and Mirage systems, making it an ideal solution for expanding input flexibility in demanding professional AV deployments.
| Specification | Details |
|---|---|
| Product Type | High bandwidth multi-input expansion card |
| Brand | Christie |
| Model | High Bandwidth Multi-Input Card (HBMIC) |
| SKU | 144-116109-01LA |
| Supported Video Resolution | Up to 4K at 60Hz over a single cable |
| SDI Inputs | 2 × 12G-SDI |
| HDMI Input | 1 × HDMI 2.0 with HDCP 2.2 support |
| DisplayPort Input | 1 × DisplayPort 1.2 with HDCP 1.3 support |
| Fiber Input | Christie Link fiber connection via QSFP+ |
| Preview Capability | Supported for all inputs |
| Switching Performance | Fast input synchronization and switching between sources |
| Compatible Projector Platforms | Christie Boxer 4K, Boxer 30, Mirage 304K, and Boxer 2K |
| Installation Slot Compatibility | Slot 0 on Boxer 4K, Boxer 30, Mirage 304K; Slot 1 or Slot 2 on Boxer 2K |
| Connectivity Purpose | Enables multiple high-bandwidth video inputs for professional AV workflows |
| Application Environments | Visualization systems, simulation environments, control rooms, live events, and large venue projection |
