Description

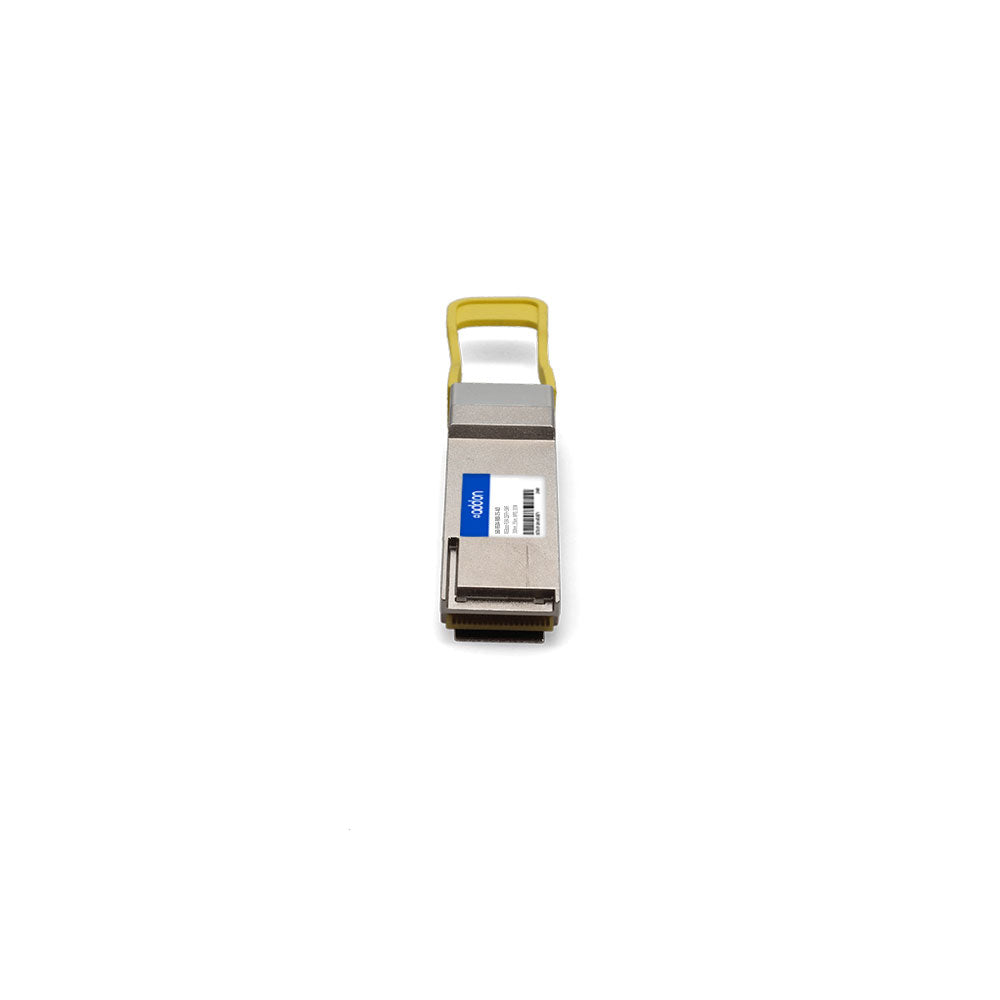

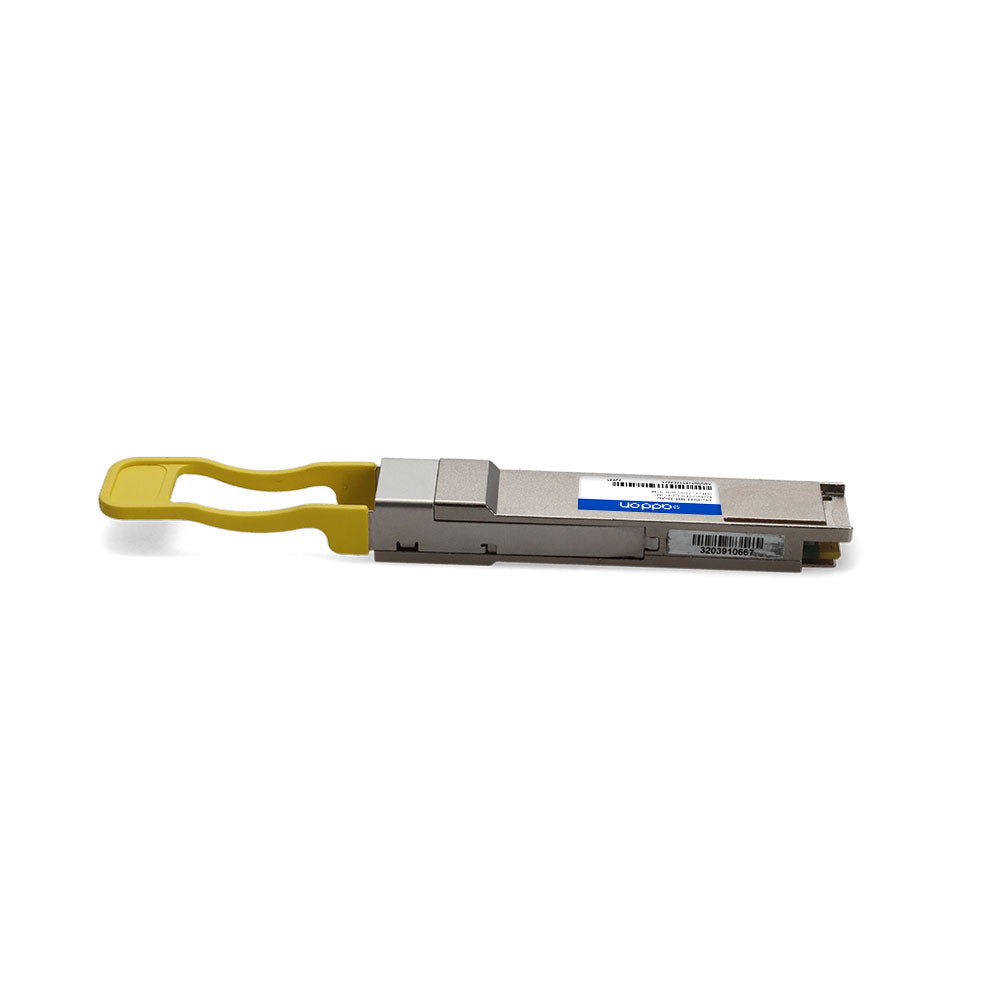

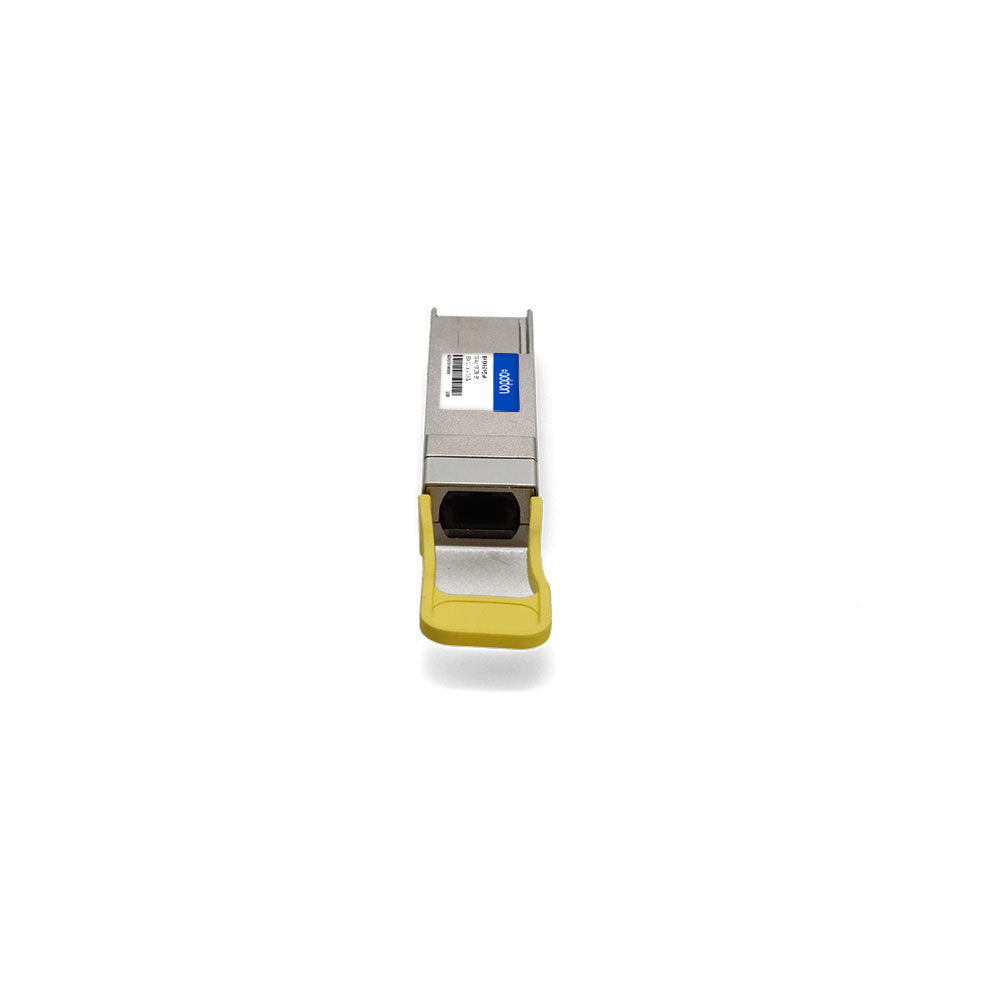

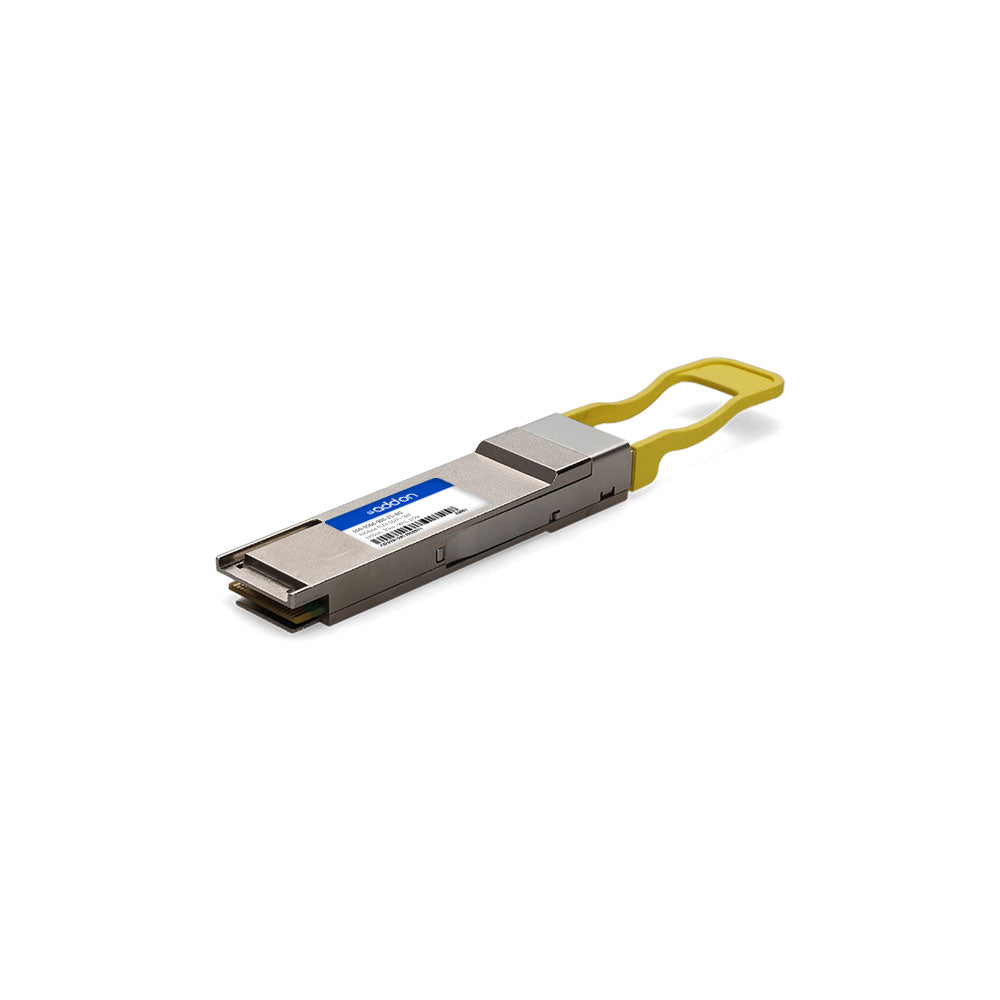

The AddOn Ciena® 160-9504-900-25 Compatible TAA 40GBase-PLR4 QSFP+ Transceiver is a high-performance optical module designed for 40 Gigabit Ethernet applications over single-mode fiber (SMF) up to 25 km using a 1310 nm wavelength. Featuring an MPO connector and fully compliant with the SFF-8436 standard, this hot-swappable transceiver provides a reliable, high-speed solution for data center, enterprise, and access network environments.
Engineered for seamless interoperability, it is 100% compatible with the original Ciena® transceiver and includes Digital Optical Monitoring (DOM) for real-time diagnostics of optical parameters. With excellent ESD protection, low EMI metal housing, and TAA compliance, this transceiver ensures robust performance and long-term reliability while maintaining OEM-level quality.
| Specification | Details |
|---|---|
| Compatible OEM | Ciena® |
| Compatible With OEM Part Number(s) | 160-9504-900-25 |
| Form Factor | QSFP+ |
| Data Rate | 40GBase-PLR4 |
| Wavelength | 1310 nm |
| Distance | Up to 25 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | MPO |
| Digital Optical Monitoring (DOM) | Supported |
| Hot Swappable | Yes |
| Compliance Standards | SFF-8436, IEEE 802.3ba |
| Operating Temperature | 0 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Supply Voltage | 3.135 V – 3.465 V |
| Power Dissipation | 3.5 W (Max) |
| Module Supply Current | 1100 mA |
| Transmitter Optical Power (per lane) | -3 dBm to +1.5 dBm |
| Receiver Sensitivity (OMA) | -12.6 dBm |
| Maximum Receiver Input Power | +2.3 dBm |
| Extinction Ratio | ≥ 3.5 dB |
| Side Mode Suppression Ratio | ≥ 30 dB |
| Launch Optical Power (TX Disable) | ≤ -30 dBm |
| Relative Humidity | 5 % – 95 % |
| Applications | 40G Ethernet, Access, Enterprise |
| Compliance | RoHS, TAA |
