Description

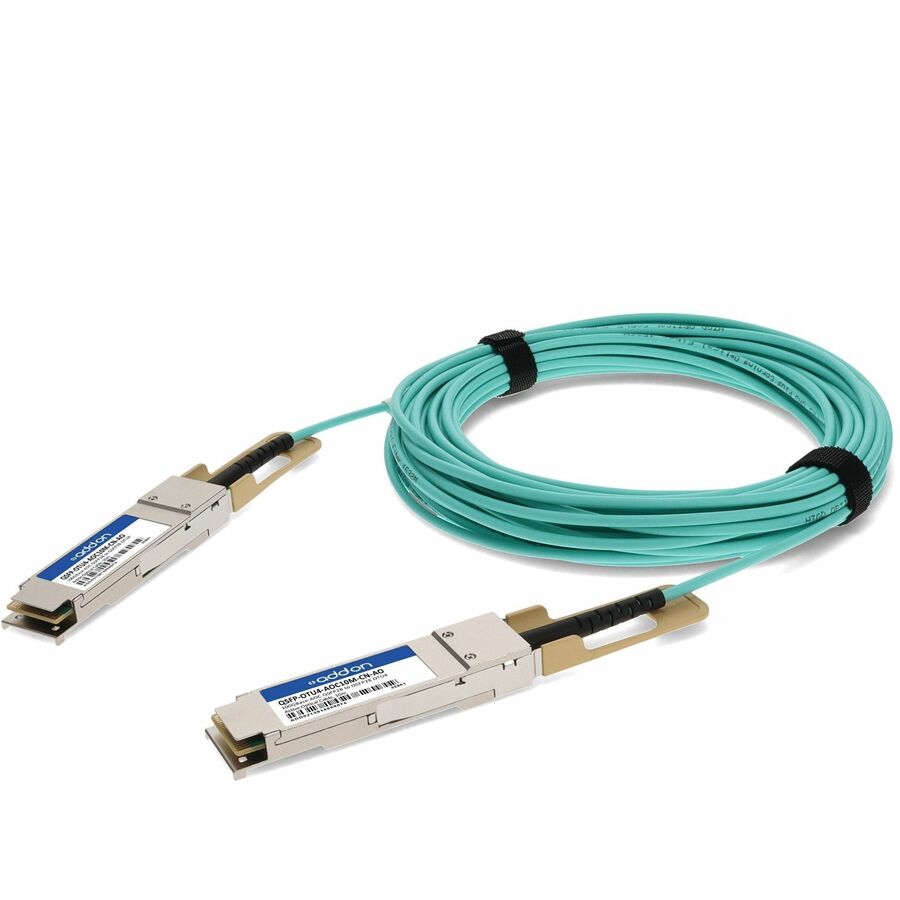

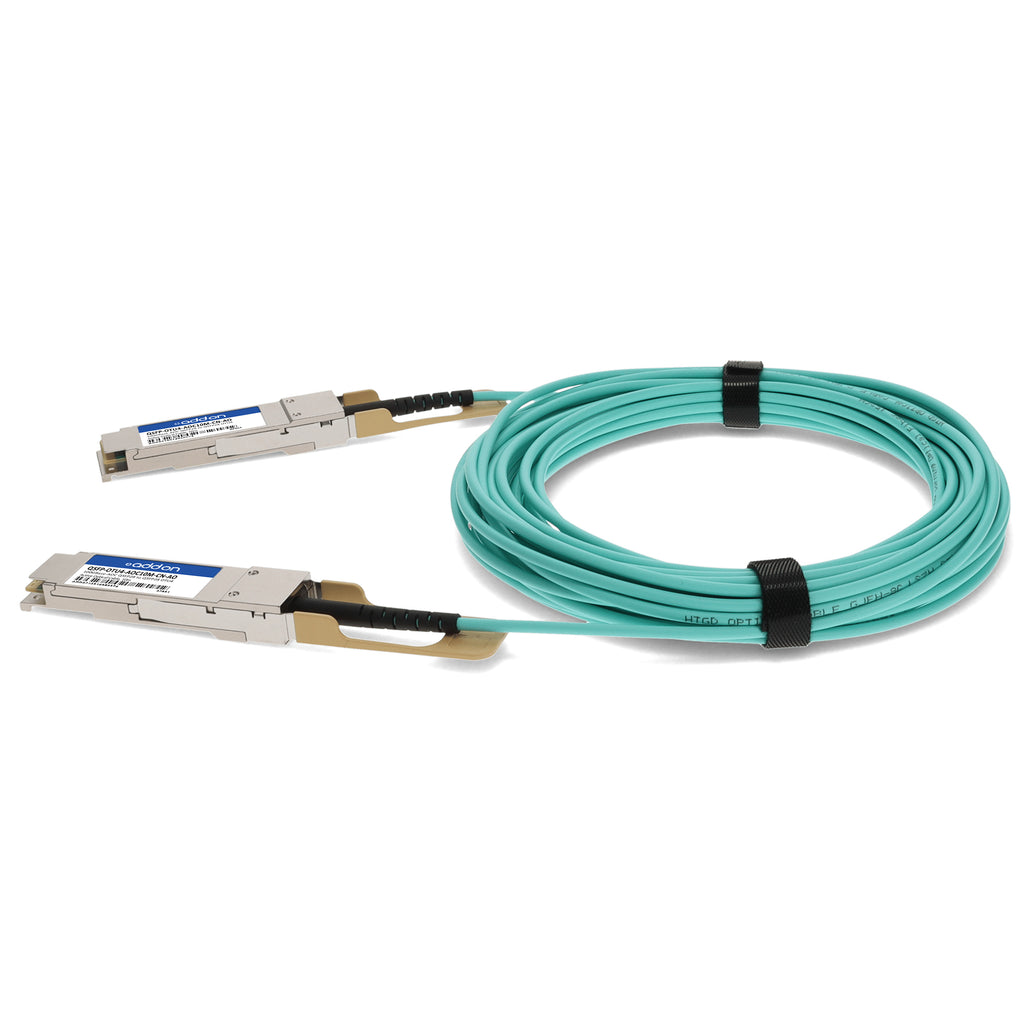

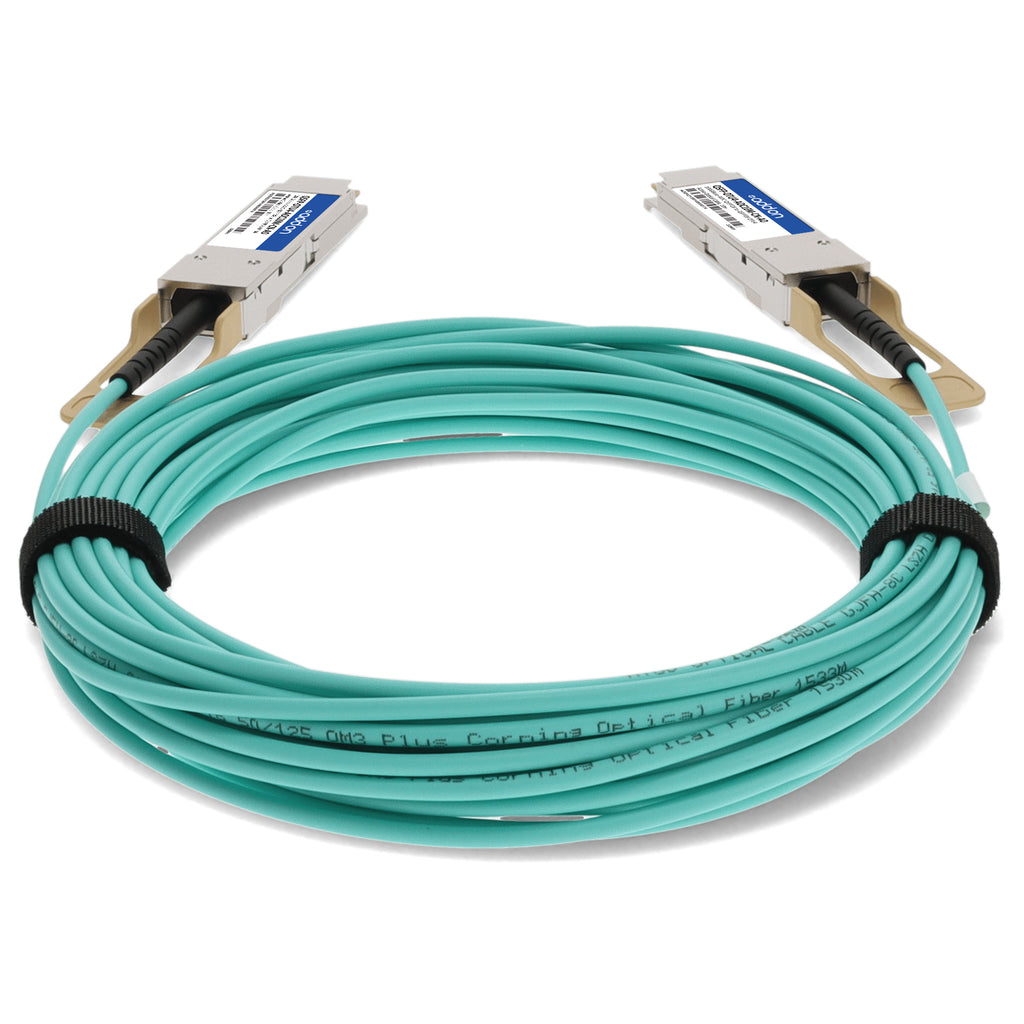

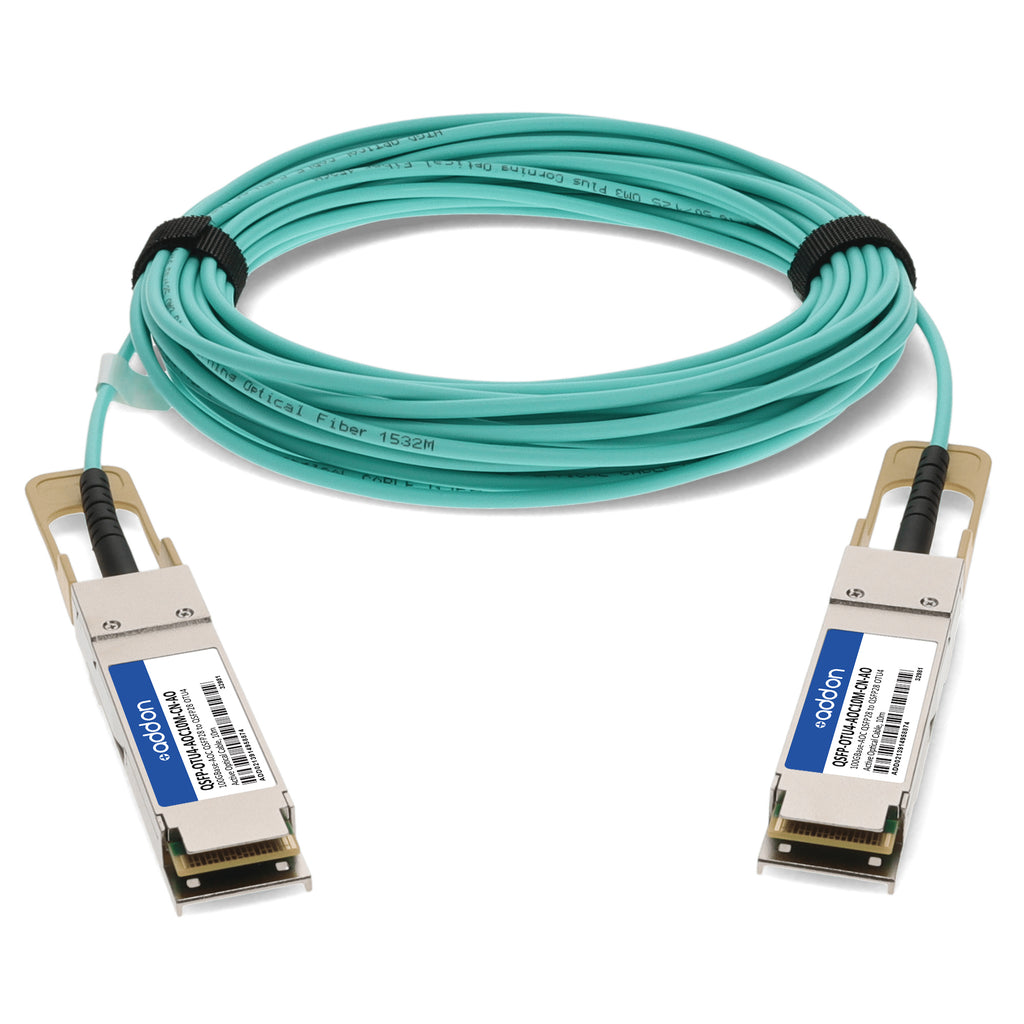

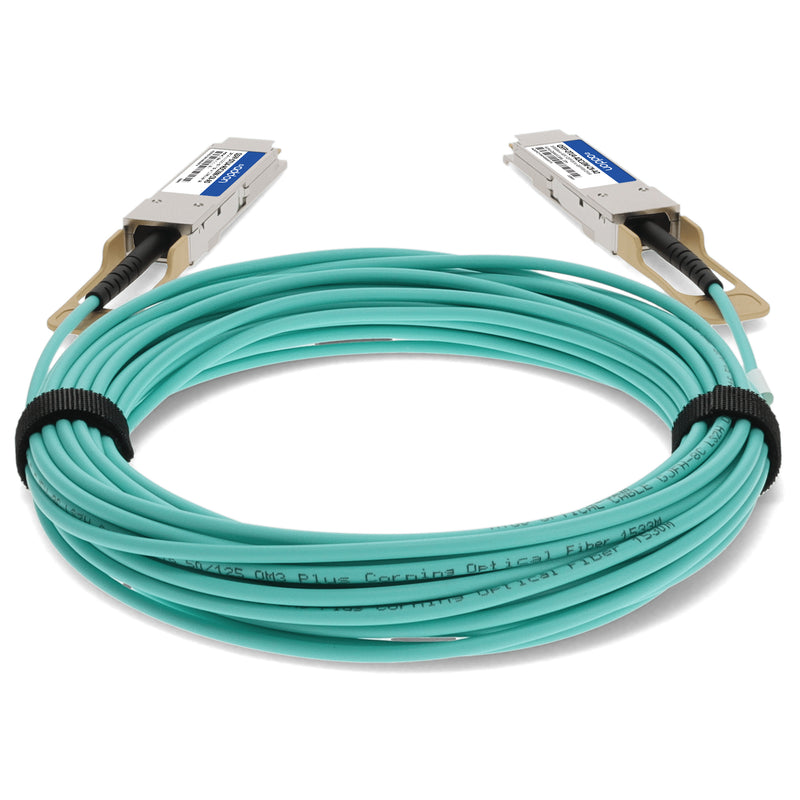

The AddOn QSFP-OTU4-AOC10M-CN-AO is a Ciena® compatible 100GBase-OTU4 Active Optical Cable designed for high-speed, high-density data center, enterprise, and telecommunications environments. Featuring QSFP28 to QSFP28 connectivity, this active optical cable delivers reliable 4×28 Gbps bi-directional performance over multimode fiber at 850nm with a maximum reach of 10 meters. It is fully compliant with SFF-8636, 100GE, and OTU4 standards, and it meets TAA and MSA requirements for government and enterprise deployments.
Engineered with low power consumption (<2.5W), robust VCSEL and PIN photonic components, and advanced signal integrity, this cable supports seamless integration into 100G Ethernet, high-performance computing, and server or data storage networks. Each unit is uniquely serialized, programmed, and thoroughly application-tested to ensure 100% functionality and long-term reliability.
| Specification | Details |
|---|---|
| Brand | AddOn |
| SKU | QSFP-OTU4-AOC10M-CN-AO |
| Compatibility | Ciena® |
| Cable Type | QSFP28 to QSFP28 Active Optical Cable |
| Data Rate | Up to 4×28 Gbps (112 Gbps aggregate) |
| Standards Compliance | SFF-8636, 100GE, OTU4, MSA |
| Wavelength | 850 nm |
| Fiber Type | MMF (Multimode Fiber) |
| Maximum Reach | 10 meters |
| Power Consumption | < 2.5 W |
| Interface | I²C standard management |
| Temperature Range | 0°C to 70°C (Operating), -40°C to 85°C (Storage) |
| Power Supply Voltage | 3.135 V – 3.465 V |
| Supply Current | 750 mA |
| Optical Return Loss Tolerance | 12 dB |
| Differential Data Input Swing | 180 – 1200 mV |
| Receiver Overload (Pavg) | 2.5 dBm |
| Damage Threshold | 3.4 dBm |
| Cable Pull Strength (0° / 90°) | 44 N / 33 N |
| Insertion / Extraction Force | 0 – 18 N / 0 – 25 N |
| Insertion/Removal Cycles | 50 cycles |
| Certifications | RoHS, TAA Compliant, Lead-Free |
| Warranty | Limited Lifetime Warranty |
