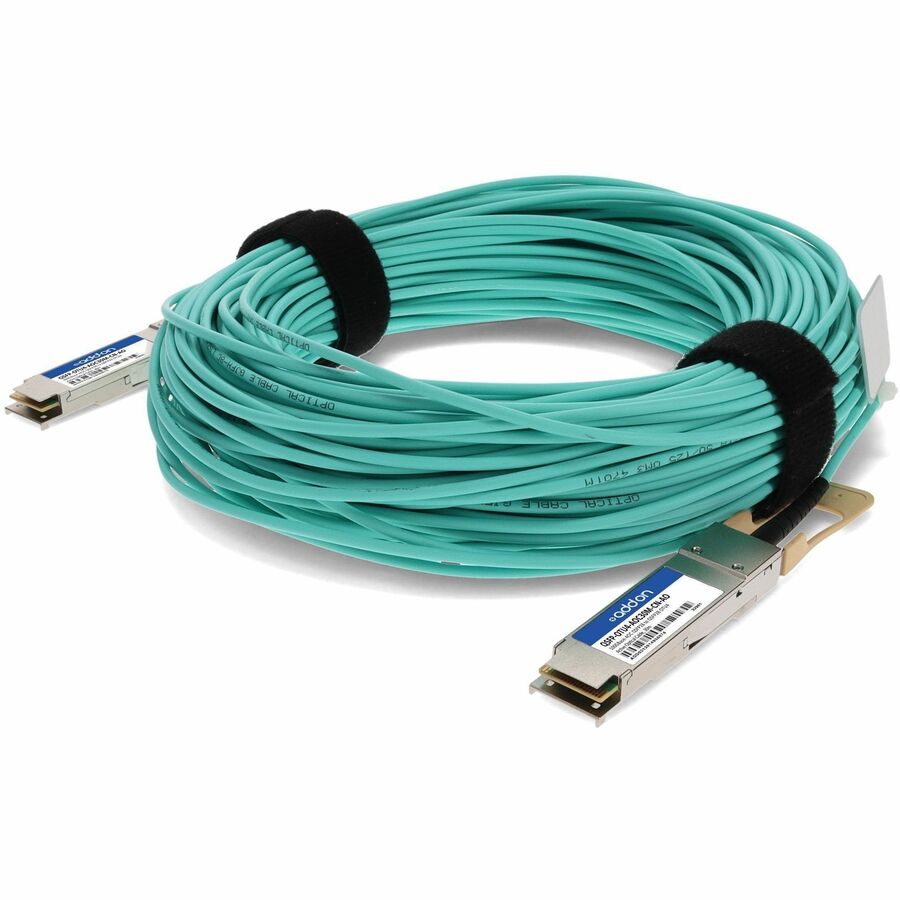

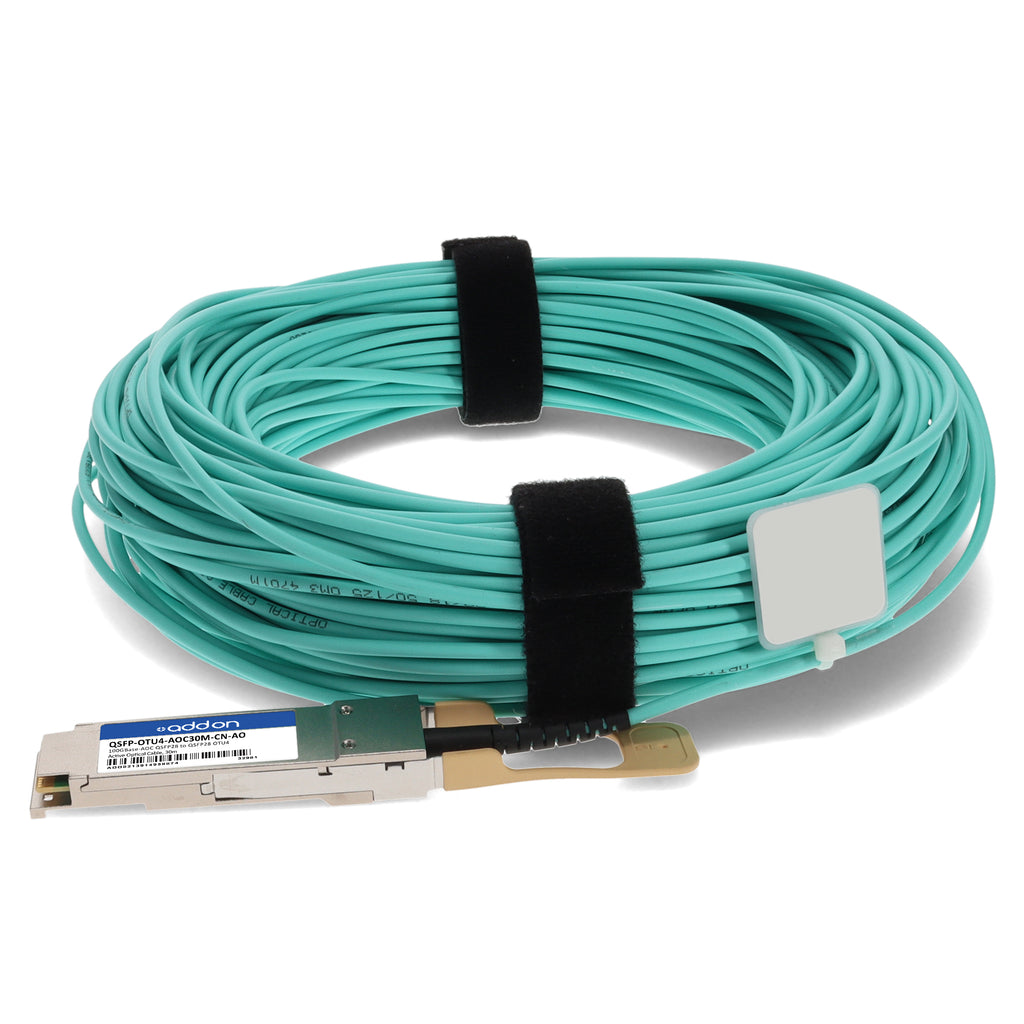

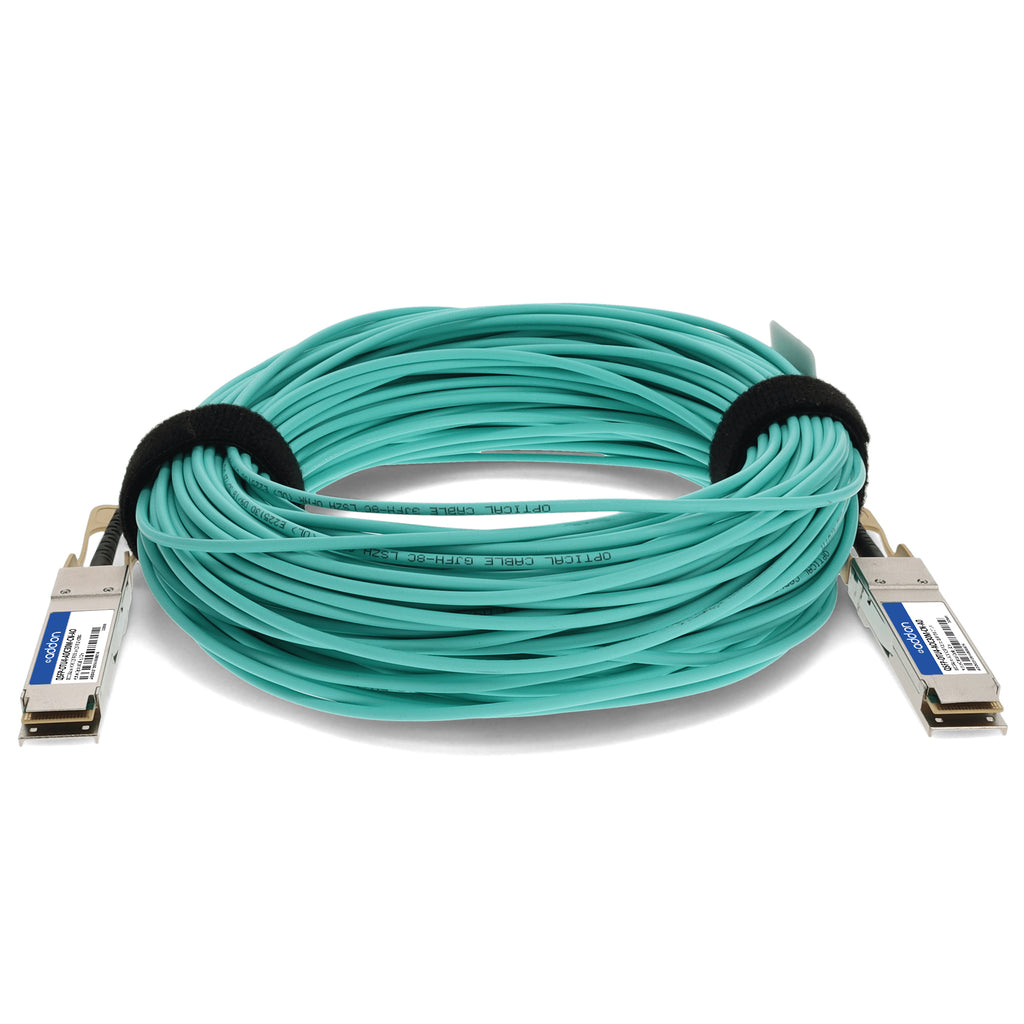

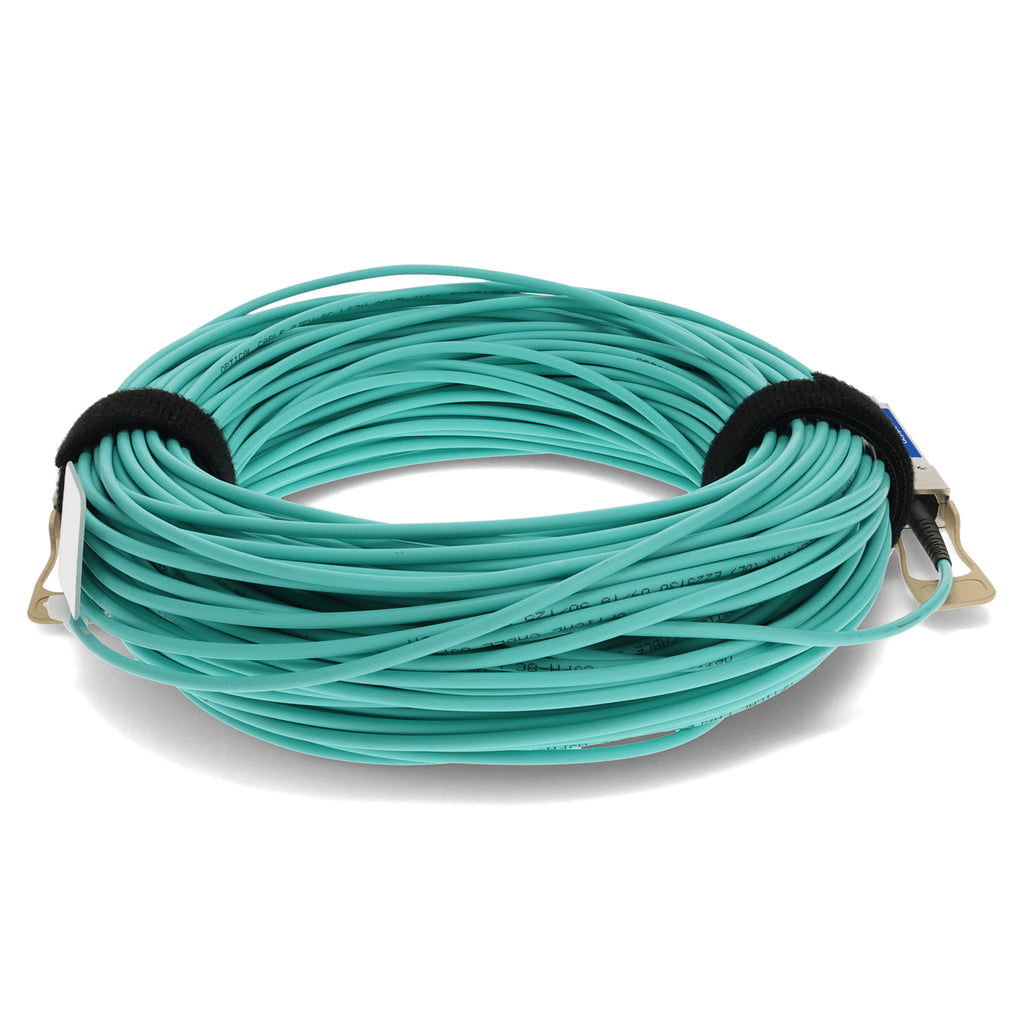

The AddOn Ciena® Compatible QSFP-OTU4-AOC30M-CN-AO is a 100GBase-OTU4 QSFP28 to QSFP28 Active Optical Cable designed for high-speed, high-density data center interconnects and enterprise networking. Operating over multimode fiber (MMF) with a maximum reach of 30 meters at 850nm, this AOC provides a reliable and energy-efficient solution with power consumption under 2.5W. It supports 4x28 Gbps bi-directional operation, ensuring excellent high-speed signal integrity for 100G Ethernet and OTU4 applications. Fully compliant with SFF-8636 and MSA standards, it features I²C standard management, automatic power-down for enhanced eye safety, and a robust design for demanding data center, high-performance computing, and storage environments. Each cable is uniquely serialized, rigorously tested for performance, and backed by AddOn’s limited lifetime warranty.
| Specification | Details |
|---|---|
| Brand | AddOn |
| SKU | QSFP-OTU4-AOC30M-CN-AO |
| Compatibility | Ciena® |
| Form Factor | QSFP28 to QSFP28 |
| Cable Type | Active Optical Cable (AOC) |
| Data Rate | 100GBase-OTU4 / 4x28 Gbps |
| Wavelength | 850nm |
| Fiber Type | Multimode Fiber (MMF) |
| Maximum Reach | 30 meters |
| Compliance Standards | SFF-8636, MSA, RoHS, TAA |
| Power Consumption | < 2.5W |
| Management Interface | I²C standard |
| Operating Case Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 85% (non-condensing) |
| Supply Voltage | 3.135V – 3.465V |
| Applications | 100G Ethernet, OTU4, High-Performance Computing, Data Center Interconnect, Server & Storage Connectivity |
| Warranty | Limited Lifetime Warranty |
