Description

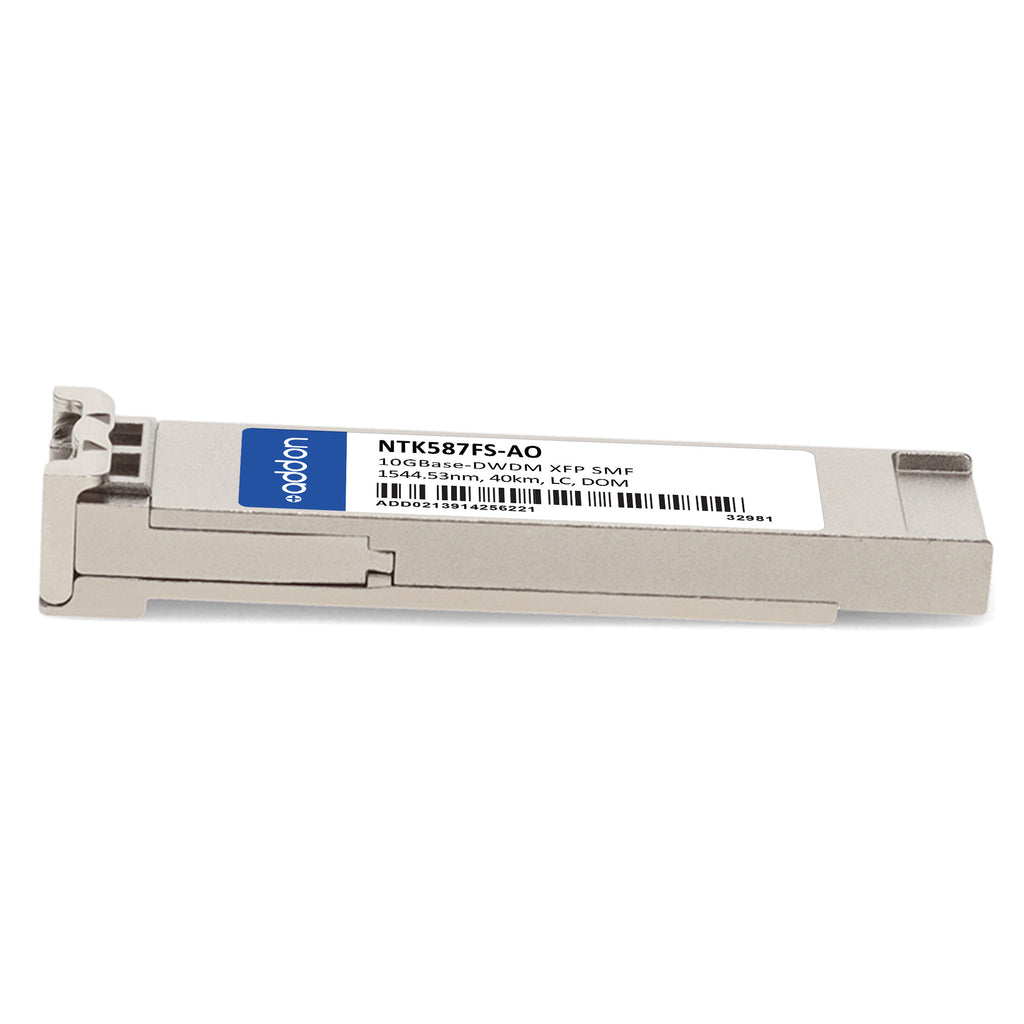

The AddOn Ciena® NTK587FS Compatible TAA 10GBase-DWDM XFP Transceiver is designed for high-performance 10G DWDM applications, delivering reliable data transmission up to 40km over single-mode fiber (SMF). Operating at a 1544.53nm wavelength on a 100GHz channel, this hot-swappable XFP module features a temperature-stabilized EML transmitter, PIN receiver, and Digital Optical Monitoring (DOM) for real-time diagnostics.
It fully complies with INF-8077i, is RoHS 2.0 compliant, and offers excellent ESD and EMI protection. Ideal for 8G/10G Fibre Channel, 10G Ethernet over DWDM, access, metro, and enterprise networks, it ensures seamless integration and interoperability with the original Ciena® transceiver. Backed by a limited lifetime warranty, this transceiver guarantees dependable performance and long-term network reliability.
| Specification | Details |
|---|---|
| Brand | AddOn |
| SKU | NTK587FS-AO |
| Compatibility | Ciena® NTK587FS |
| Form Factor | XFP |
| Data Rate | 10GBase-DWDM (9.95 – 11.3 Gb/s) |
| Wavelength | 1544.53 nm (100GHz ITU Channel 41) |
| Transmission Distance | Up to 40 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Transmitter Type | Temperature-stabilized EML |
| Receiver Type | PIN |
| DOM Support | Yes |
| Operating Temperature | 0°C to 70°C |
| Power Dissipation | 3.5 W (Max) |
| Optical Output Power | -1 to +4 dBm |
| Receiver Sensitivity | -24 dBm @ 9.953 Gb/s / -15 dBm @ 11.1 Gb/s |
| Extinction Ratio | ≥ 9 dB |
| Compliance Standards | INF-8077i, RoHS 2.0 (2015/863/EU), FCC Part 15, EN55022:2010, FDA 21CFR, EN60950-1, IEC 60825-1/2 |
| Hot Pluggable | Yes |
| Applications | 8G/10G Fibre Channel, 10G Ethernet over DWDM, Access, Metro, Enterprise |
| Warranty | Limited Lifetime Warranty |
