Description

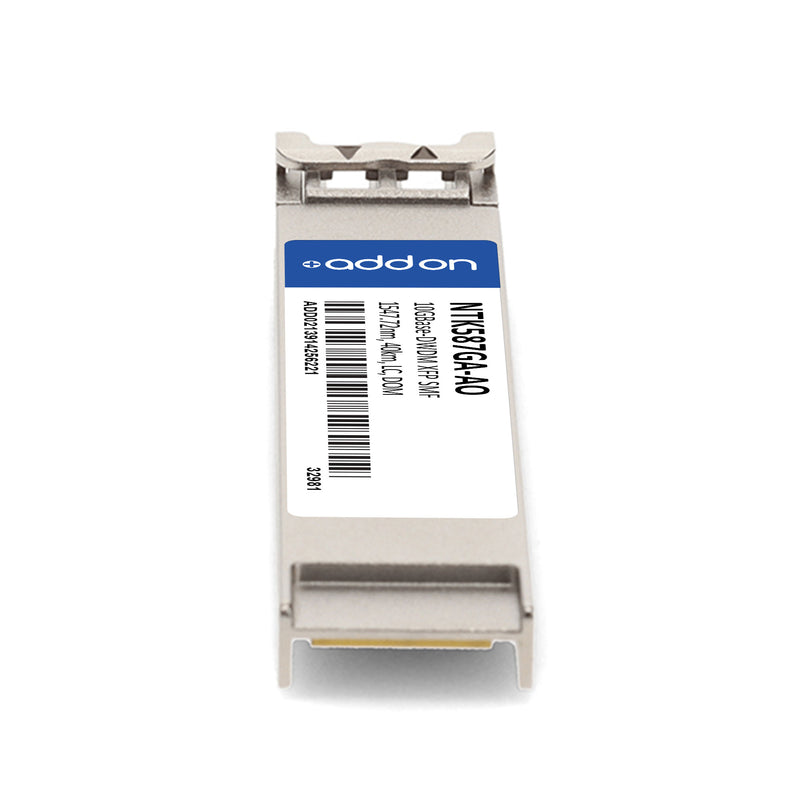

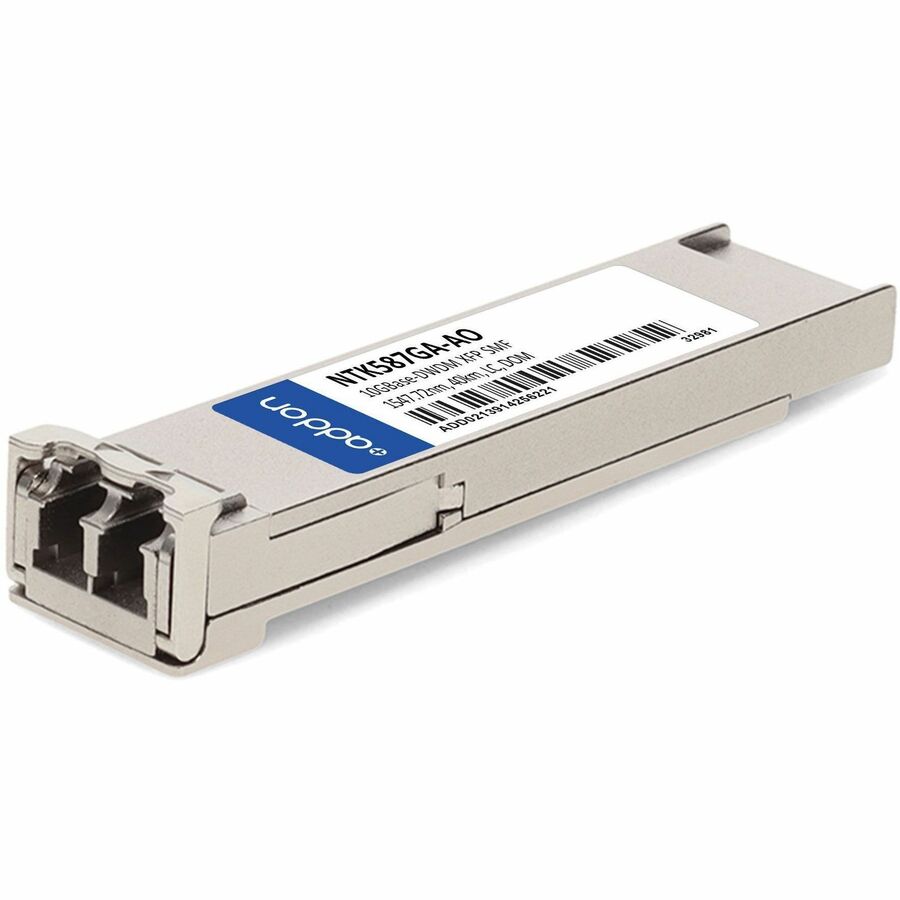

This Ciena® NTK587GA compatible XFP transceiver from AddOn delivers reliable 10GBase-DWDM performance over single-mode fiber (SMF) with a reach of up to 40km, utilizing a center wavelength of 1547.72nm and 100GHz channel spacing via a duplex LC connector. Designed for seamless integration, it is fully compliant with INF-8077i standards and supports Digital Optical Monitoring (DOM) for real-time diagnostics. Its hot-pluggable form factor, temperature-stabilized EML transmitter, and PIN receiver ensure high performance and easy deployment in DWDM networks for 8x/10x Fibre Channel and 10G Ethernet applications. This module is TAA compliant, RoHS compliant, lead-free, and rigorously tested to ensure 100% compatibility with OEM equipment.
| Parameter | Specification |
|---|---|
| SKU | NTK587GA-AO |
| Compatibility | Ciena® NTK587GA |
| Form Factor | XFP |
| Data Rate | 9.95 – 11.3 Gb/s |
| Application | 8x/10x Fibre Channel, 10G Ethernet over DWDM, Access/Metro/Enterprise |
| Transmission Standard | 10GBase-DWDM |
| Wavelength | 1547.72nm (100GHz ITU-T Channel 37) |
| Wavelength Range | 1528.77 – 1563.86nm |
| Reach / Distance | Up to 40km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Transmitter Type | Temperature-stabilized EML |
| Receiver Type | PIN |
| Digital Diagnostics (DOM) | Supported |
| Optical Power (Tx) | -1 to +4 dBm |
| Receiver Sensitivity | -24 dBm (9.953 Gb/s) / -15 dBm (11.1 Gb/s) |
| Receiver Overload | -1 dBm |
| Extinction Ratio | ≥ 9 dB |
| Optical Return Loss | ≥ 27 dB |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Power Supply Voltage | 3.3V / 5V |
| Power Consumption | ≤ 3.5W |
| Hot Pluggable | Yes |
| Compliance | INF-8077i, FDA 21CFR, EN60950-1, IEC 60825-1/2, FCC Part 15B, EN55022:2010, RoHS 2.0 |
| TAA Compliant | Yes |
| Warranty | Limited Lifetime Warranty |
