Description

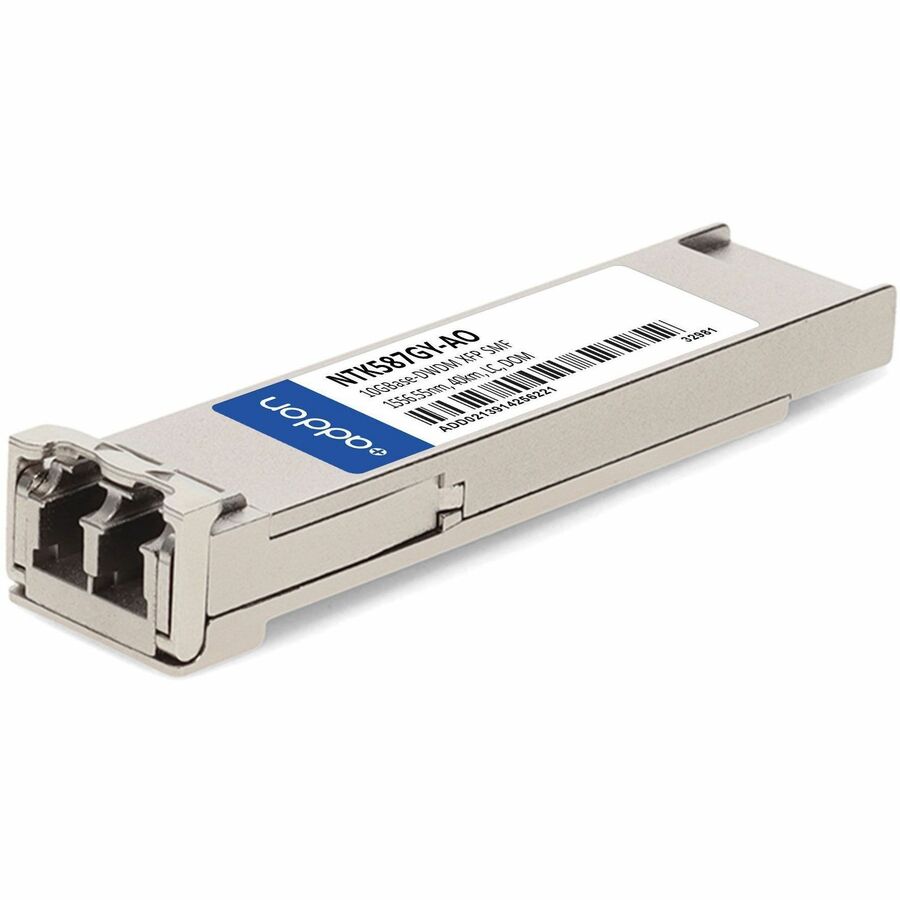

The AddOn Ciena® NTK587GY compatible XFP transceiver delivers reliable 10GBase-DWDM performance up to 40km over single-mode fiber (SMF) using a wavelength of 1556.56nm via a duplex LC connector. Featuring a temperature-stabilized EML transmitter and PIN receiver, this hot-swappable, easy-to-install module ensures seamless network integration and is fully compliant with INF-8077i standards. It supports digital optical monitoring (DOM) for real-time parameter tracking and is ideal for 8x/10x Fibre Channel, 10G Ethernet over DWDM, and access, metro, and enterprise applications. Built to meet or exceed OEM specifications, it is TAA compliant, RoHS certified, and backed by a limited lifetime warranty.
| Parameter | Specification |
|---|---|
| SKU | NTK587GY-AO |
| Brand Compatibility | Ciena® |
| Form Factor | XFP |
| Data Rate | 9.95 – 11.3 Gb/s |
| Application | 8x/10x Fibre Channel, 10G Ethernet over DWDM |
| Wavelength | 1556.56nm (100GHz DWDM) |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Max Reach | 40 km |
| Transmitter Type | Temperature-stabilized EML |
| Receiver Type | PIN |
| Digital Optical Monitoring (DOM) | Supported |
| Operating Temperature | 0°C to 70°C |
| Power Dissipation | 3.5 W |
| Transmit Optical Power | -1 to +4 dBm |
| Receiver Sensitivity (@9.953Gb/s) | -24 dBm |
| Receiver Sensitivity (@11.1Gb/s) | -15 dBm |
| Receiver Overload | -1 dBm |
| Extinction Ratio | ≥ 9 dB |
| Compliance | INF-8077i, RoHS 2.0, FCC Part 15, EN55022, FDA 21CFR, EN60950-1, IEC 60825-1/2 |
| TAA Compliant | Yes |
| Hot Pluggable | Yes |
| Warranty | Limited Lifetime Warranty |
