Description

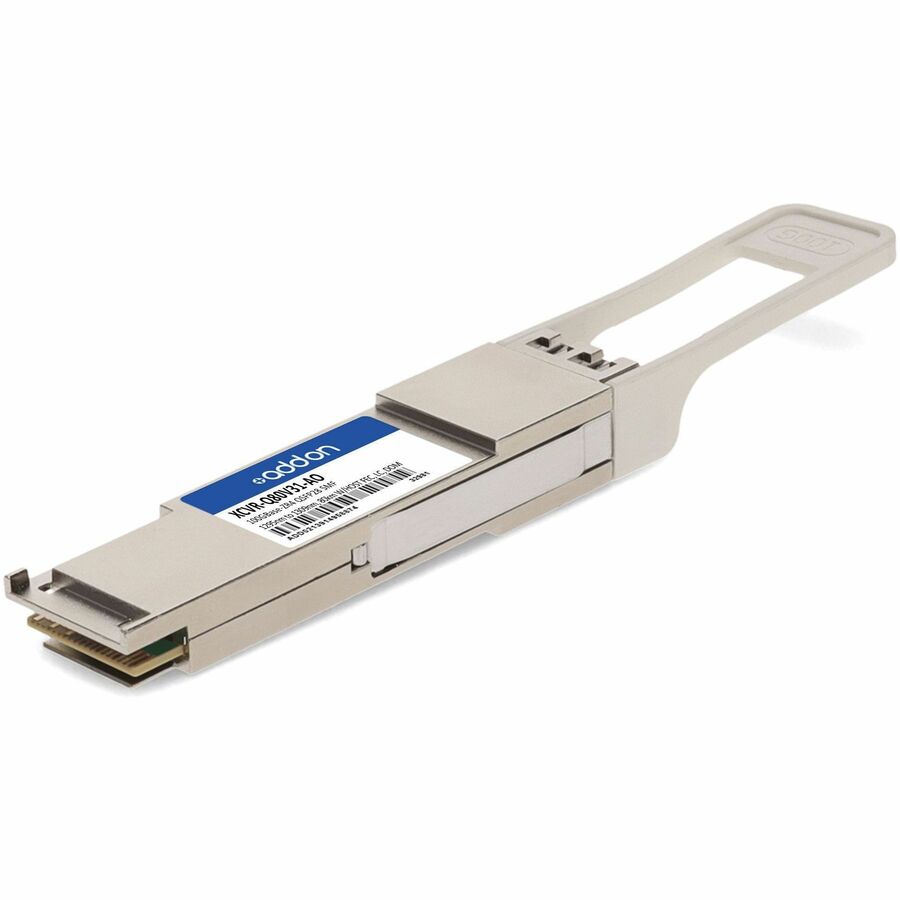

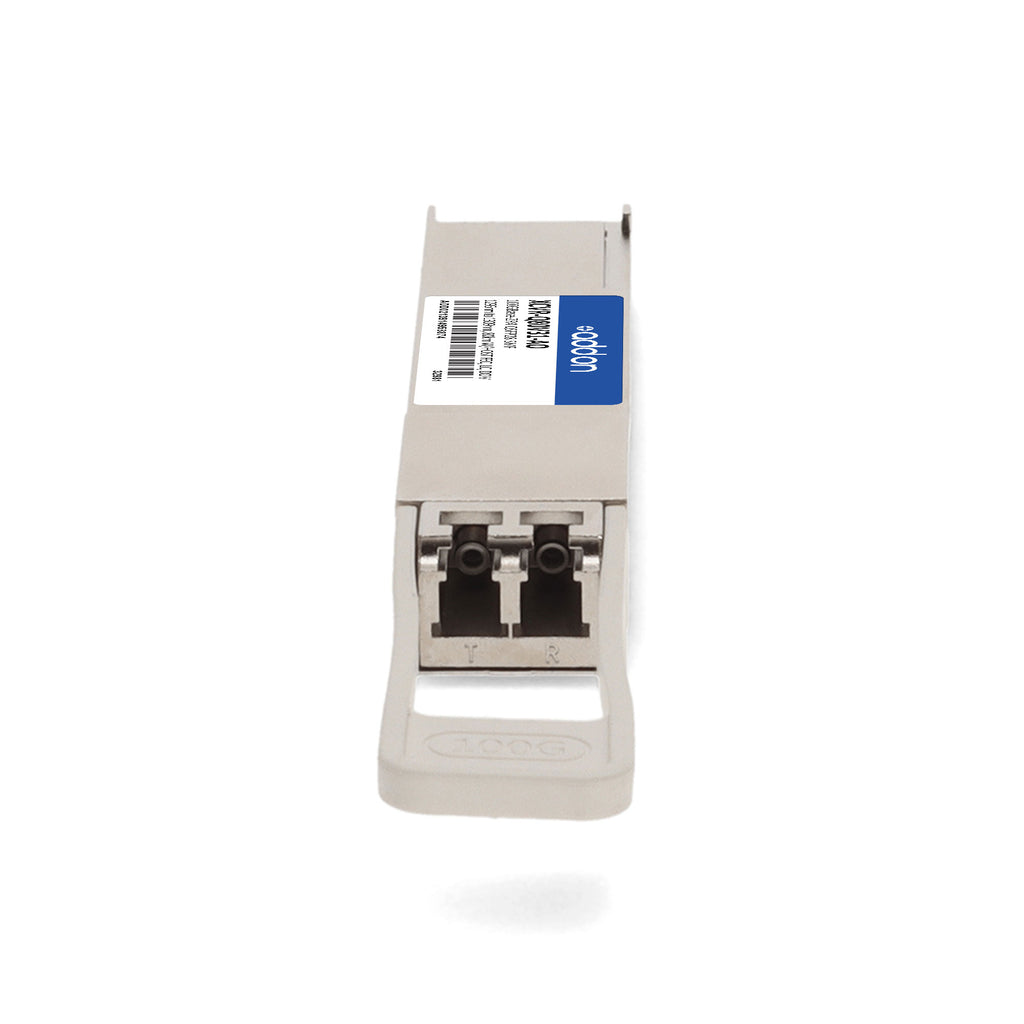

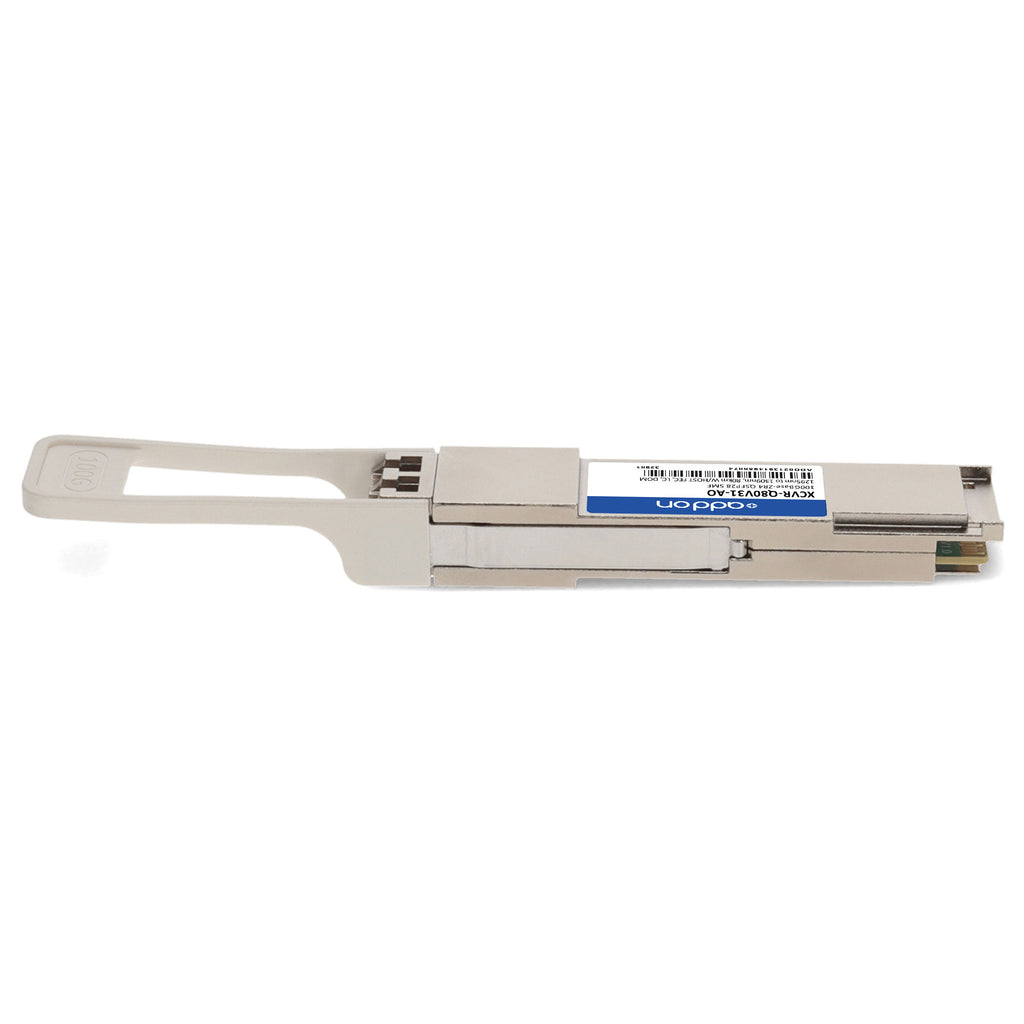

This Ciena® XCVR-Q80V31 compatible QSFP28 transceiver from AddOn provides high-performance 100GBase-ZR4 throughput up to 80 km over single-mode fiber (SMF) using wavelengths between 1295 nm and 1309 nm via a duplex LC connector. Designed for demanding data center, access, and enterprise network environments, this hot-pluggable module complies with IEEE 802.3ba and ITU-T G.959 standards and features a 4×25 Gbps LAN-WDM EML transmitter and SOA+PIN receiver. With support for Digital Optical Monitoring (DOM), network operators can access real-time diagnostics for optimal performance and uptime. This transceiver is fully TAA-compliant, RoHS-certified, and backed by AddOn’s lifetime warranty, ensuring seamless interoperability and long-term reliability in high-capacity optical networks.
| Specification | Details |
|---|---|
| SKU | XCVR-Q80V31-AO |
| Compatible OEM | Ciena® |
| Form Factor | QSFP28 |
| Data Rate | 100 Gbps (4×25 Gbps) |
| Application | 100GBase-ZR4 Ethernet |
| Wavelength Range | 1295 nm – 1309 nm |
| Reach / Distance | Up to 80 km over SMF (with FEC) |
| Connector Type | Duplex LC |
| Optical Components | EML TOSA transmitter, SOA+PIN ROSA receiver |
| Digital Diagnostic Monitoring (DOM) | Supported |
| Operating Temperature | 0 °C to 70 °C |
| Storage Temperature | –40 °C to 85 °C |
| Power Supply Voltage | 3.3 V |
| Power Consumption | ≤ 5.5 W |
| Compliance Standards | IEEE 802.3ba, ITU-T G.959, CEI-28G-VSR, MSA, TAA, RoHS |
| Launch Power (Total) | 7 dBm to 12.5 dBm |
| Receiver Sensitivity (Per Lane) | –26.4 dBm |
| Damage Threshold | 5.5 dBm |
| Supported Applications | Access, Enterprise, Data Center Networking |
| Hot-Swappable | Yes |
| Warranty | Limited Lifetime Warranty |
