Description

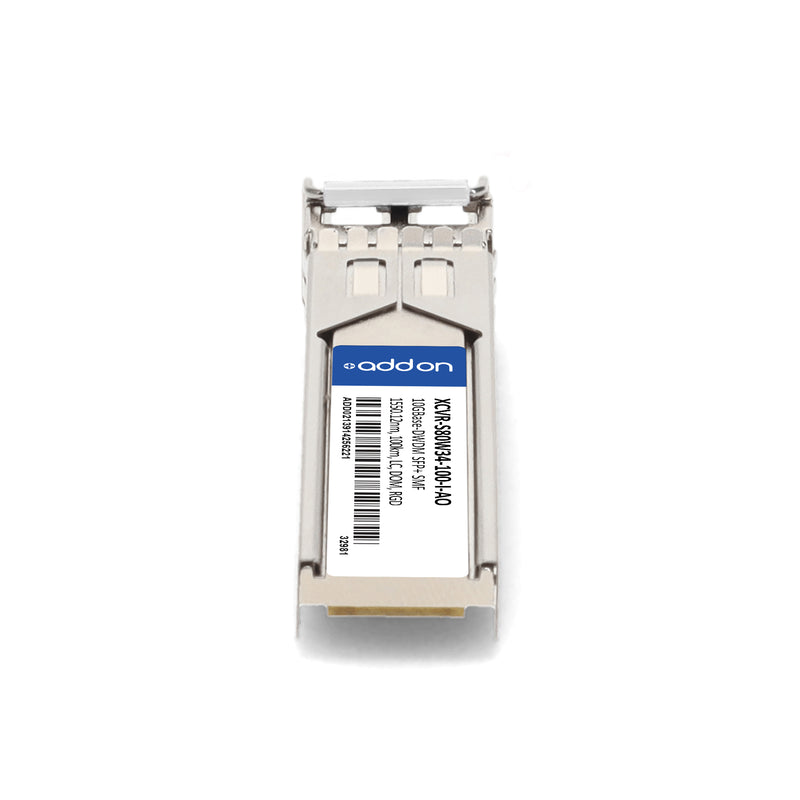

The AddOn Ciena® XCVR-S80W34-100-I Compatible SFP+ Transceiver is a high-performance, hot-pluggable optical module designed for 10GBase-DWDM applications over long-haul single-mode fiber (SMF). Operating on a 1550.12 nm wavelength (ITU Channel 34) within the C-Band 100 GHz DWDM grid, it delivers reliable data transmission up to 100 km and supports 8G/10G Fibre Channel and 10G Ethernet services across metro, access, and enterprise networks.
Engineered for durability and interoperability, this module complies with SFF-8432 and SFF-8472 standards, features an industrial operating temperature range of -40 °C to 85 °C, and offers advanced Digital Optical Monitoring (DOM) for real-time diagnostics. With full TAA compliance, RoHS certification, and a limited lifetime warranty, it’s the ideal solution for expanding optical network capacity while ensuring compatibility and performance parity with OEM hardware.
| Specification | Details |
|---|---|
| Part Number | XCVR-S80W34-100-I-AO |
| Brand Compatibility | Ciena® |
| Form Factor | SFP+ |
| Data Rate | 10.3125 Gbps |
| Application | 10GBase-DWDM, 8G/10G Fibre Channel |
| Wavelength | 1550.12 nm (ITU Channel 34) |
| Channel Spacing | 100 GHz |
| Fiber Type | Single-Mode Fiber (SMF) |
| Distance | Up to 100 km |
| Connector | Duplex LC |
| Digital Diagnostics (DOM) | Supported |
| Operating Temperature | -40 °C to 85 °C (Industrial) |
| Optical Launch Power | +1.0 dBm to +4.0 dBm |
| Receiver Sensitivity | ≤ -26 dBm |
| Receiver Overload | ≥ -7 dBm |
| Extinction Ratio | ≥ 9 dB |
| Power Dissipation | ≤ 1.8 W |
| Voltage Supply | 3.135 V – 3.465 V |
| Hot Pluggable | Yes |
| Compliance | SFF-8432, SFF-8472, IEEE 802.3, FDA 21CFR, EN60825-1/2, RoHS 2.0, TAA |
| Warranty | Limited Lifetime Warranty |
