Description

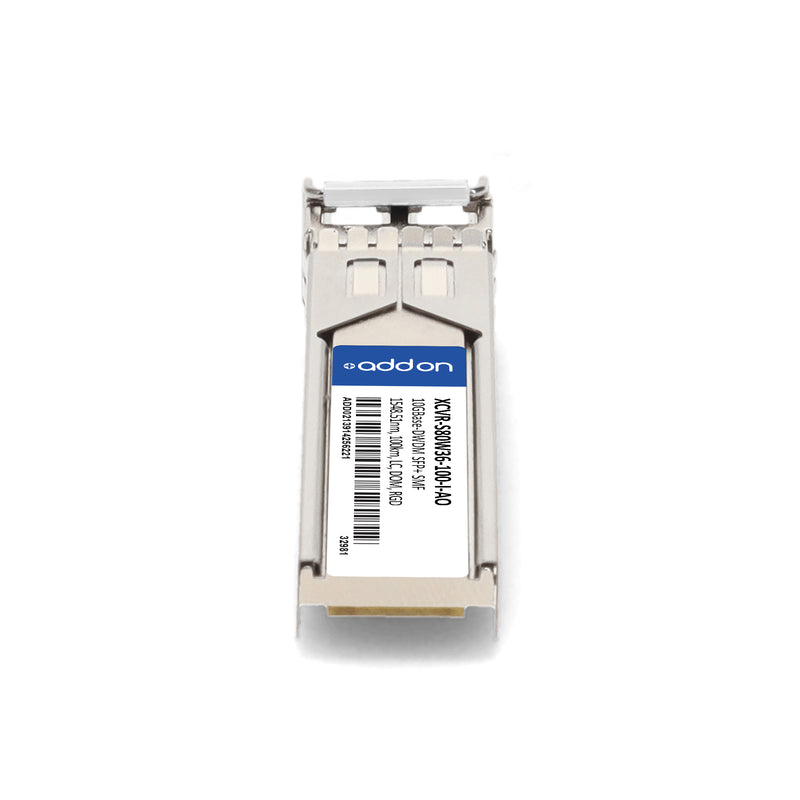

The AddOn Ciena® XCVR-S80W36-100-I Compatible TAA 10GBase-DWDM SFP+ Transceiver delivers high-performance 10 Gbps data transmission up to 100 km over single-mode fiber (SMF) using a 1548.51 nm DWDM wavelength on the ITU-T 100 GHz grid. Featuring a duplex LC connector and Digital Optical Monitoring (DOM) support, this hot-pluggable transceiver ensures seamless integration and real-time monitoring of key operating parameters.
Engineered for reliability, it is 100% compatible with the OEM equivalent and supports demanding environments with an industrial temperature range (-40 °C to +85 °C). Ideal for 10G Ethernet, 8G/10G Fibre Channel, and metro, access, and enterprise network deployments, this TAA-compliant module is built to exceed industry standards and is backed by AddOn’s limited lifetime warranty.
| Specification | Description |
|---|---|
| Brand | AddOn |
| SKU | XCVR-S80W36-100-I-AO |
| Compatibility | Ciena® XCVR-S80W36-100-I |
| Form Factor | SFP+ |
| Data Rate | 10.3125 Gbps |
| Application | 10GBase-DWDM Ethernet, 8G/10G Fibre Channel |
| Wavelength | 1548.51 nm (Channel 36, ITU-T 100 GHz Grid) |
| Transmission Distance | Up to 100 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| DOM Support | Yes |
| Temperature Range | -40 °C to +85 °C (Industrial) |
| Optical Output Power | +1.0 dBm to +4.0 dBm |
| Receiver Sensitivity | ≤ -26 dBm |
| Extinction Ratio | ≥ 9 dB |
| Power Dissipation | ≤ 1.8 W |
| Compliance | SFF-8432, SFF-8472, TAA, RoHS, IEEE 802.3, FDA 21CFR, EN60825-1/2 |
| Hot Pluggable | Yes |
| Warranty | Limited Lifetime Warranty |
