Description

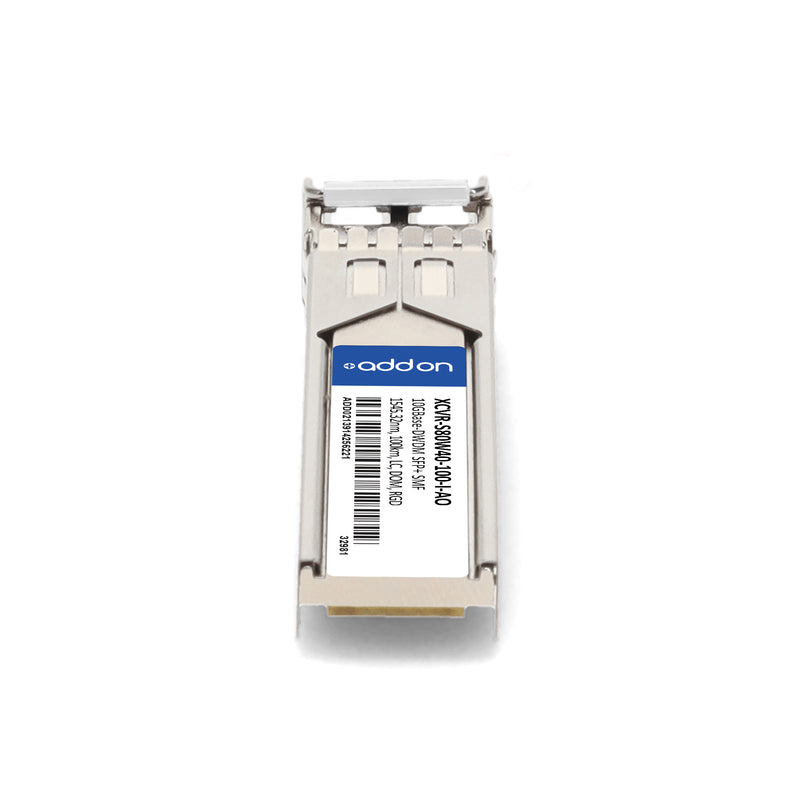

The AddOn Ciena® XCVR-S80W40-100-I Compatible TAA 10GBase-DWDM SFP+ Transceiver delivers high-performance optical connectivity with data rates up to 10.3125 Gbps over single-mode fiber (SMF) for distances up to 100 km. Operating at a center wavelength of 1545.32 nm on the ITU-T 100 GHz C-band grid, this hot-swappable module features a duplex LC connector and supports Digital Optical Monitoring (DOM) for real-time diagnostics. It is fully compliant with SFF-8432 and SFF-8472 standards and optimized for demanding applications such as 10 Gigabit Ethernet over DWDM, 8G/10G Fibre Channel, and metro or enterprise networks. With industrial temperature support from -40 °C to +85 °C, excellent ESD protection, and low EMI design, this transceiver ensures reliable, long-distance, high-bandwidth connectivity in mission-critical environments. Backed by AddOn’s rigorous testing, TAA compliance, and limited lifetime warranty, it is a trusted, cost-effective alternative to OEM solutions.
| Specification | Details |
|---|---|
| Part Number | XCVR-S80W40-100-I-AO |
| Compatibility | Ciena® XCVR-S80W40-100-I |
| Form Factor | SFP+ |
| Data Rate | 10.3125 Gbps |
| Application | 10GBase-DWDM Ethernet, 8G/10G Fibre Channel |
| Wavelength | 1545.32 nm (Channel 40, C-Band 100 GHz) |
| Transmission Distance | Up to 100 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Digital Diagnostics (DOM) | Supported |
| Operating Temperature | -40 °C to +85 °C (Industrial) |
| Optical Transmit Power | +1.0 dBm to +4.0 dBm |
| Receiver Sensitivity | ≤ -26 dBm |
| Receiver Overload | -7.0 dBm |
| Extinction Ratio | ≥ 9 dB |
| Side Mode Suppression Ratio | ≥ 30 dB |
| Power Dissipation | ≤ 1.8 W |
| Compliance | SFF-8432, SFF-8472, IEEE 802.3-2005 10GBASE-ZR, RoHS 2.0 |
| Regulatory Standards | FDA 21CFR, EN60950-1, IEC 60825-1/2, FCC Part 15, EN55022 |
| Features | Hot-pluggable, ESD protected, low EMI, TAA compliant |
| Warranty | Limited Lifetime Warranty |
