Description

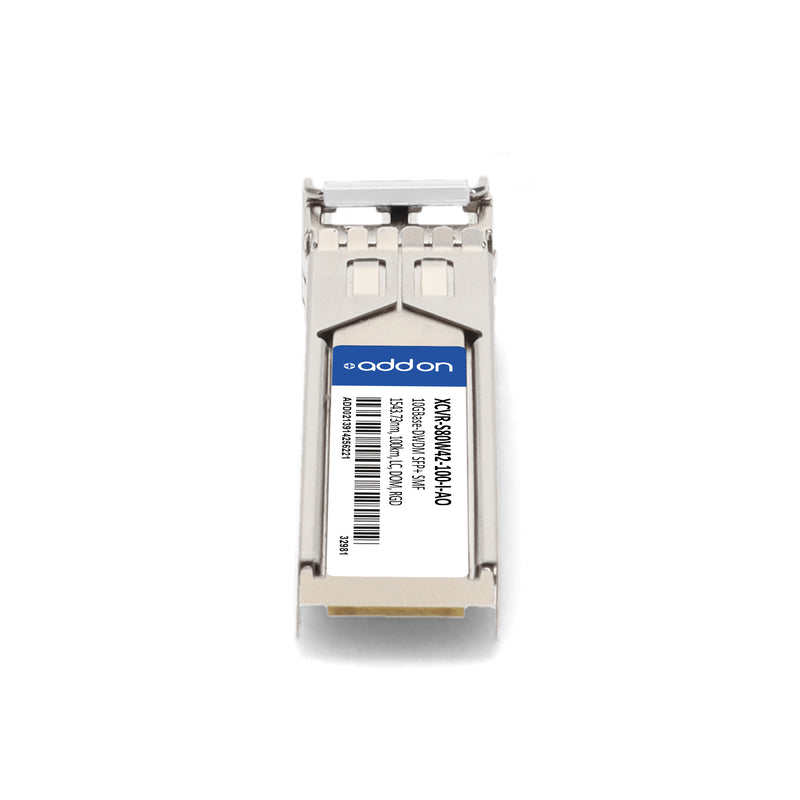

The AddOn Ciena® XCVR-S80W42-100-I Compatible SFP+ Transceiver delivers reliable 10GBase-DWDM performance up to 100 km over single-mode fiber (SMF) using a 1543.73 nm wavelength and an LC duplex connector. Engineered for industrial environments with a wide operating temperature range of -40 °C to 85 °C, this transceiver is ideal for access, metro, and enterprise network deployments.
Fully TAA-compliant and MSA-compliant, it ensures seamless interoperability and is guaranteed 100% compatible with the original Ciena® transceiver. Each unit is hot-swappable, uniquely serialized, and tested for data traffic and application performance to ensure plug-and-play reliability. Digital Optical Monitoring (DOM) provides real-time access to critical parameters, helping optimize network performance and diagnostics. Like all AddOn optical components, it is backed by a limited lifetime warranty and rigorous quality assurance for long-term network stability.
| Specification | Details |
|---|---|
| Brand Compatibility | Ciena® |
| Model / SKU | XCVR-S80W42-100-I-AO |
| Form Factor | SFP+ |
| Data Rate | 10.3125 Gbps |
| Application | 10GBase-DWDM |
| Wavelength | 1543.73 nm (ITU Channel 42, C-Band, 100 GHz) |
| Transmission Distance | Up to 100 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Digital Optical Monitoring (DOM) | Supported |
| Temperature Range | -40 °C to 85 °C (Industrial) |
| Compliance | SFF-8432, SFF-8472, TAA, RoHS 2.0 |
| Launch Optical Power | +1.0 dBm to +4.0 dBm |
| Receiver Sensitivity | ≤ -26 dBm |
| Receiver Overload | ≥ -7.0 dBm |
| Extinction Ratio | ≥ 9.0 dB |
| Side Mode Suppression Ratio (SMSR) | ≥ 30 dB |
| Power Dissipation | ≤ 1.8 W |
| Supply Voltage | 3.135 V – 3.465 V |
| Connector Type | Hot-pluggable |
| ESD Protection | MIL-STD-883E Method 3015.4 |
| EMI/EMC Compliance | FCC Part 15 Subpart B, EN55022:2010 |
| Laser Safety | FDA 21CFR, IEC 60825-1/2 |
| Warranty | Limited Lifetime Warranty |
