Description

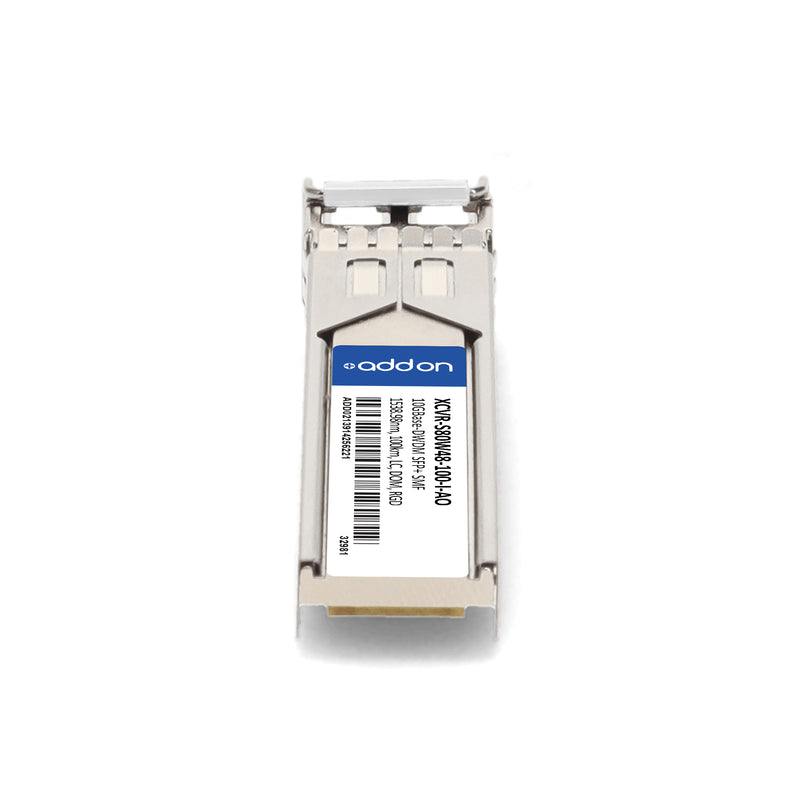

The AddOn Ciena® XCVR-S80W48-100-I-AO is a high-performance, TAA-compliant 10GBase-DWDM SFP+ transceiver designed for demanding enterprise, metro, and access network applications. Engineered for maximum reliability, it delivers up to 100km transmission over single-mode fiber (SMF) using a wavelength of 1538.98nm within the C-Band 100GHz ITU-T grid. Featuring a duplex LC connector and hot-swappable design, this module ensures seamless deployment and maintenance. It supports digital optical monitoring (DOM) for real-time diagnostics and is fully compliant with SFF-8432 and SFF-8472 standards. With an industrial temperature range of -40°C to 85°C, robust EMI shielding, and enhanced ESD protection, it offers exceptional performance and durability in mission-critical environments. Every unit is programmed, serialized, and rigorously tested to guarantee 100% compatibility with Ciena® systems.
| Specification | Description |
|---|---|
| Brand | AddOn |
| OEM Compatibility | Ciena® |
| Part Number | XCVR-S80W48-100-I-AO |
| Form Factor | SFP+ |
| Data Rate | 10.3125 Gb/s |
| Transmission Distance | Up to 100 km |
| Wavelength | 1538.98 nm (C-Band, 100GHz) |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Digital Optical Monitoring (DOM) | Supported |
| Operating Temperature | -40°C to 85°C (Industrial) |
| Optical Output Power | +1.0 to +4.0 dBm |
| Receiver Sensitivity | ≤ -26 dBm |
| Receiver Overload | ≥ -7.0 dBm |
| Extinction Ratio | ≥ 9.0 dB |
| Side Mode Suppression Ratio (SMSR) | ≥ 30 dB |
| Optical Return Loss (Receiver) | ≥ 27 dB |
| Power Dissipation | ≤ 1.8 W |
| Supply Voltage | 3.135 V – 3.465 V |
| Compliance | SFF-8432, SFF-8472, IEEE 802.3ae, FCC Part 15, EN55022:2010, IEC 60825-1/-2 |
| Applications | 10G Ethernet over DWDM, 8G/10G Fibre Channel, Metro/Access/Enterprise Networks |
| TAA Compliant | Yes |
| Hot-Pluggable | Yes |
| Warranty | Limited Lifetime Warranty |
