Description

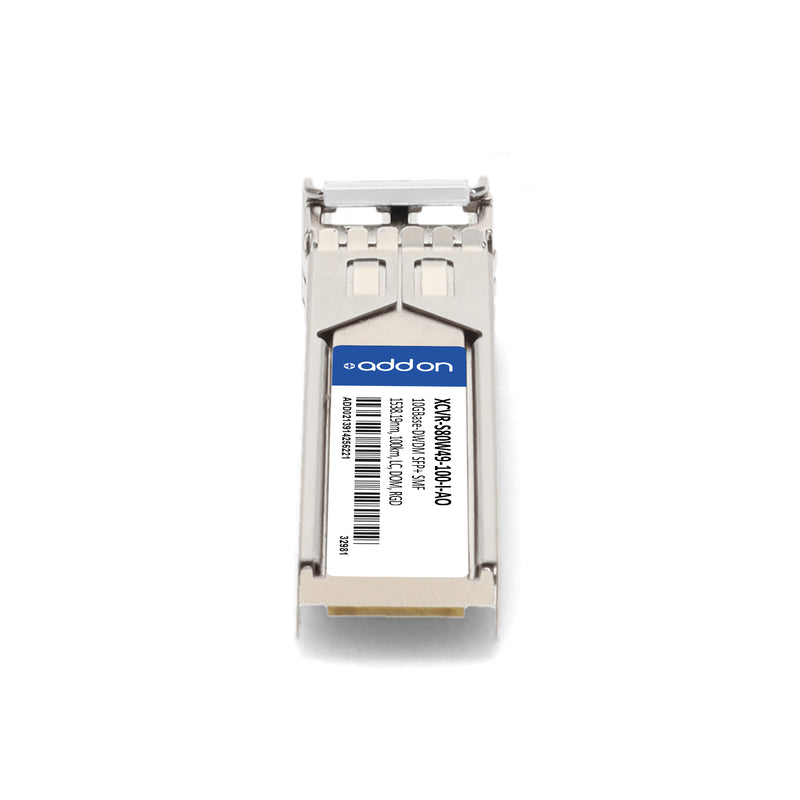

The AddOn Ciena® XCVR-S80W49-100-I Compatible TAA 10GBase-DWDM SFP+ Transceiver delivers high-performance optical networking for access, metro, and enterprise applications. Designed for 10 Gigabit Ethernet and 8G/10G Fibre Channel over DWDM, this hot-swappable SFP+ module provides up to 100km transmission over single-mode fiber (SMF) using a 1538.19nm wavelength with 100GHz channel spacing. It features a duplex LC connector, industrial temperature range (-40°C to 85°C), and Digital Optical Monitoring (DOM) for real-time diagnostics. Fully compliant with SFF-8432 and SFF-8472 standards, this TAA-compliant transceiver is guaranteed to be 100% compatible with the OEM equivalent and undergoes extensive testing for reliable performance.
| Specification | Details |
|---|---|
| Brand | AddOn |
| SKU | XCVR-S80W49-100-I-AO |
| Compatibility | Ciena® XCVR-S80W49-100-I |
| Form Factor | SFP+ |
| Data Rate | 10.3125 Gb/s |
| Interface | Duplex LC |
| Fiber Type | Single-mode Fiber (SMF) |
| Wavelength | 1538.19 nm (ITU Channel 49) |
| Channel Spacing | 100 GHz |
| Distance | Up to 100 km |
| Optical Power (Tx) | +1.0 to +4.0 dBm |
| Receiver Sensitivity | ≤ -26 dBm |
| Receiver Overload | -7 dBm |
| Extinction Ratio | ≥ 9 dB |
| Side Mode Suppression Ratio | ≥ 30 dB |
| Dispersion Penalty | ≤ 4 dB |
| Optical Return Loss Tolerance | ≥ 21 dB |
| Connector Type | Duplex LC |
| Digital Diagnostics (DOM) | Supported |
| Hot Swappable | Yes |
| Operating Temperature | -40°C to +85°C (Industrial) |
| Storage Temperature | -40°C to +85°C |
| Supply Voltage | 3.135V to 3.465V |
| Power Dissipation | ≤ 1.8 W |
| Compliance Standards | SFF-8432, SFF-8472, IEEE 802.3ae 10GBASE-ZR |
| Applications | 10G Ethernet DWDM, 8G/10G Fibre Channel, Access, Metro, Enterprise |
| Regulatory Compliance | RoHS, TAA, MIL-STD-883E, IEC 61000-4-3, FCC Part 15, EN55022, FDA 21CFR, EN60825-1/2 |
